HVAC Control Module Connector End View C1 (2 Of 2)

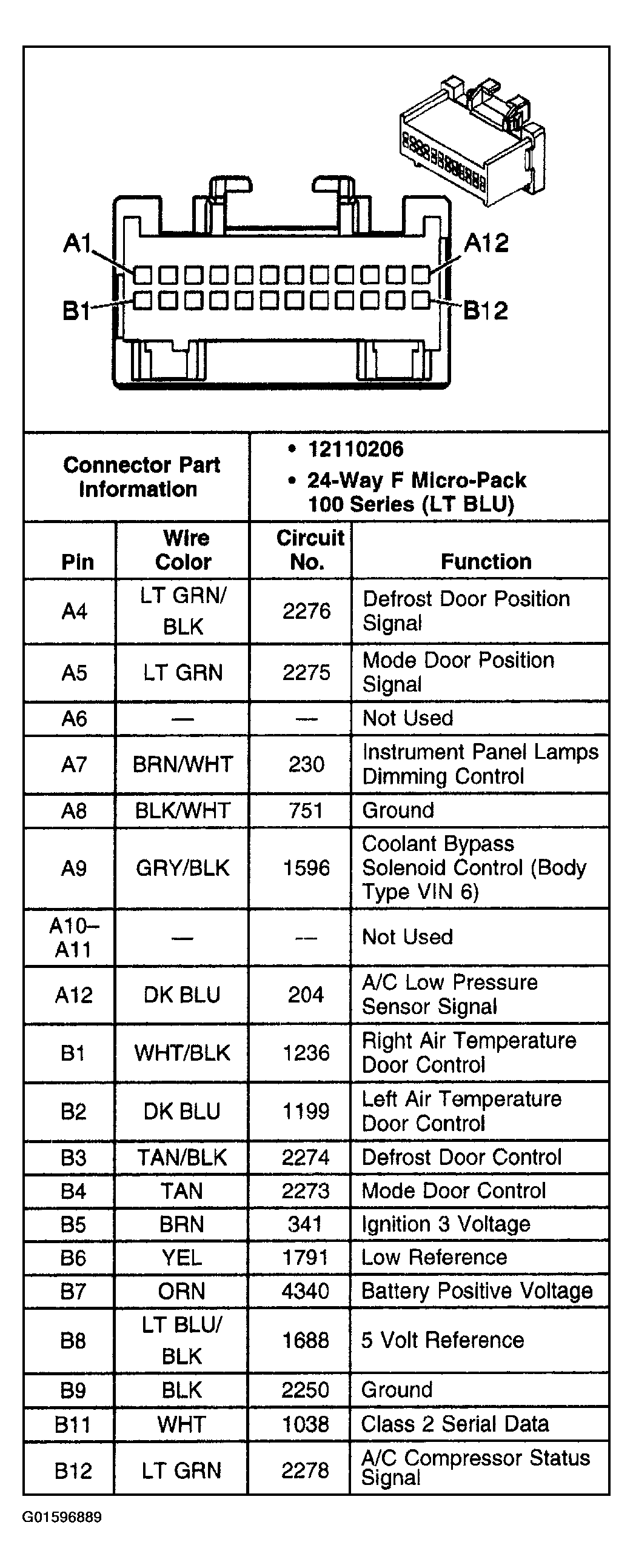

Fig 1: HVAC Control Module Connector End View C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

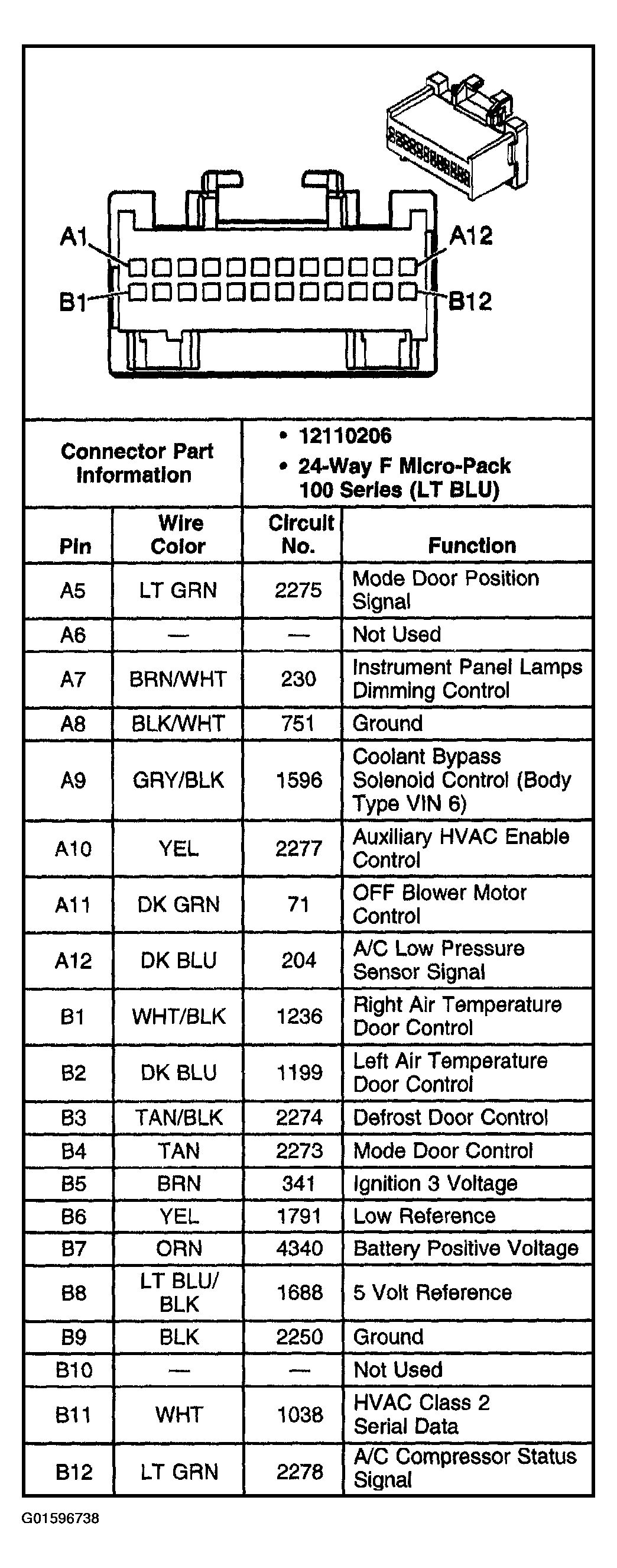

Fig 1: HVAC Control Module Connector End View C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
