LR Window Switch Connector End View
LR Window Switch Connector End View

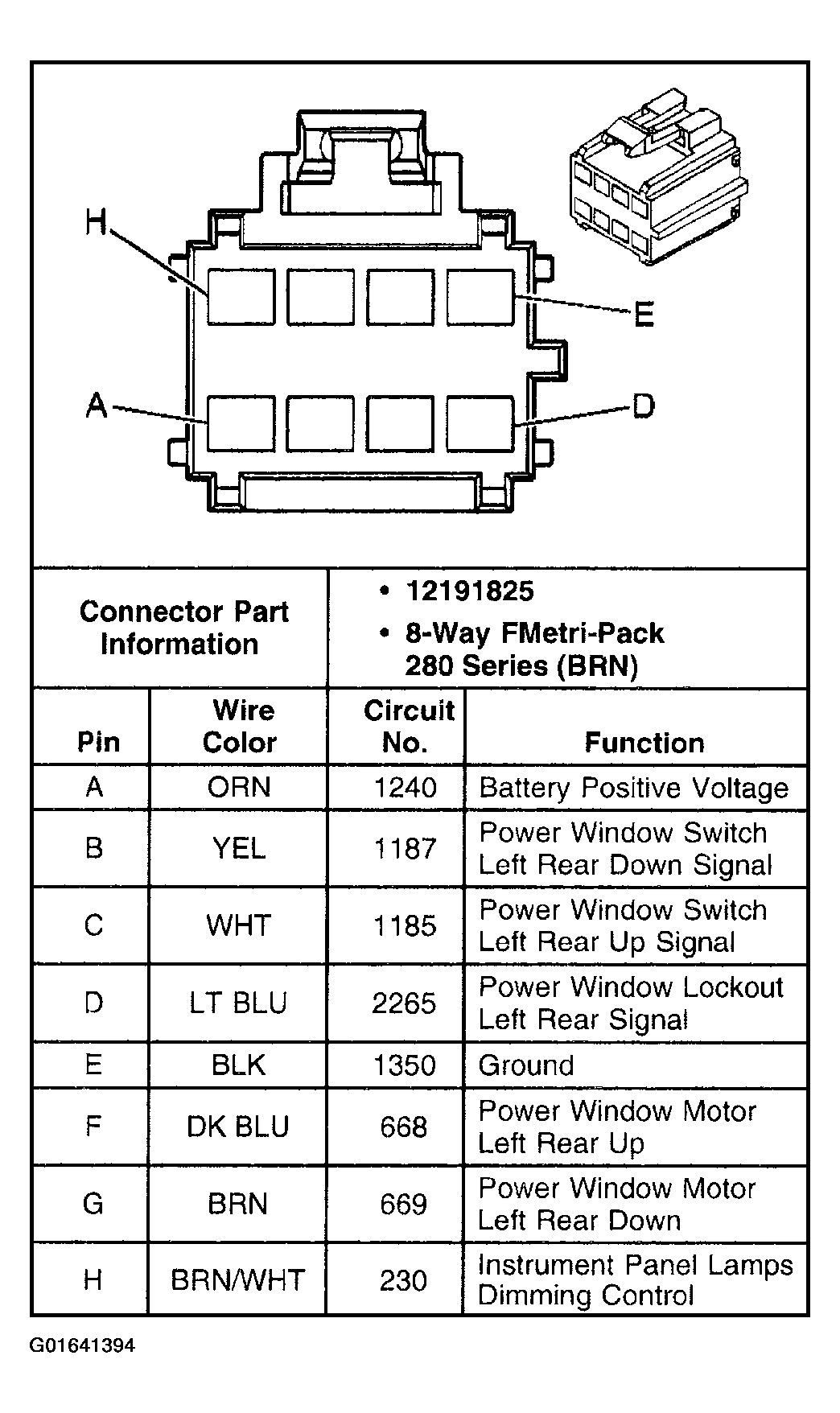

Fig 1: LR Window Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
