Memory Seat Module Connector End View - Driver C1

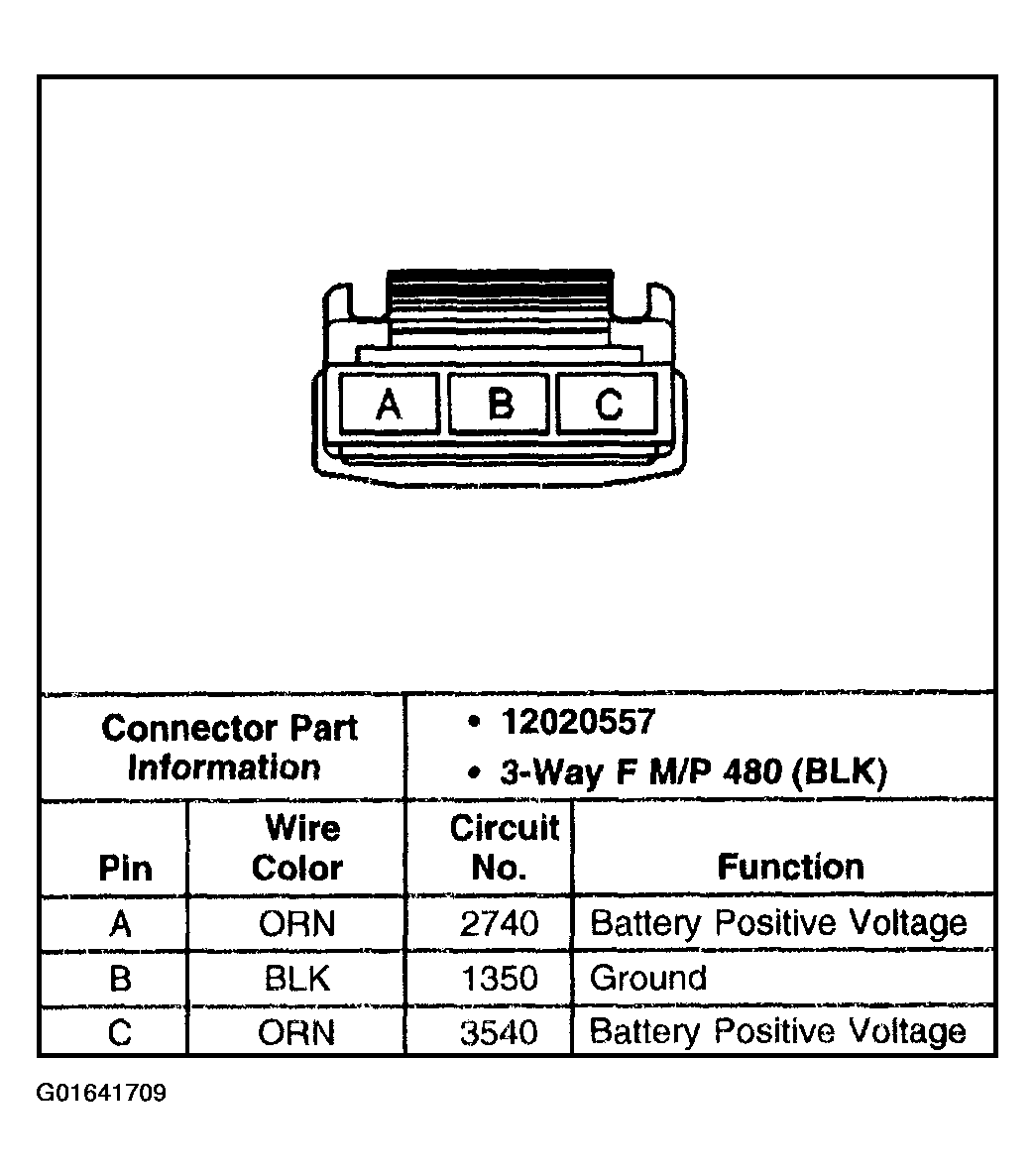

Fig 1: Memory Seat Module Connector End View - Driver C1
G01641709Courtesy of GENERAL MOTORS CORP.
