Memory Seat Module Connector End View - Driver C2

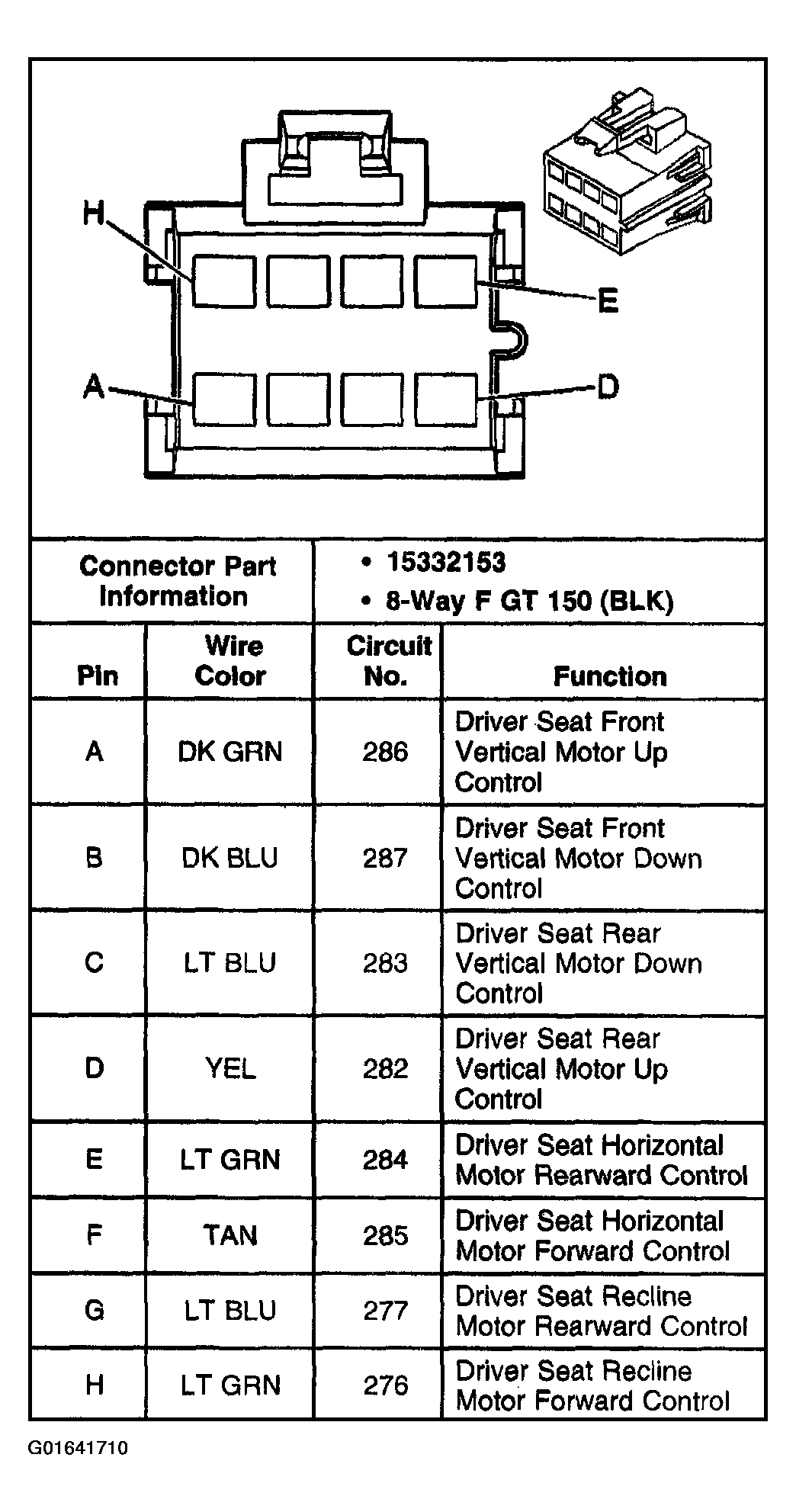

Fig 1: Memory Seat Module Connector End View - Driver C2
G01641710Courtesy of GENERAL MOTORS CORP.
