Memory Seat Module Connector End View - Driver C4

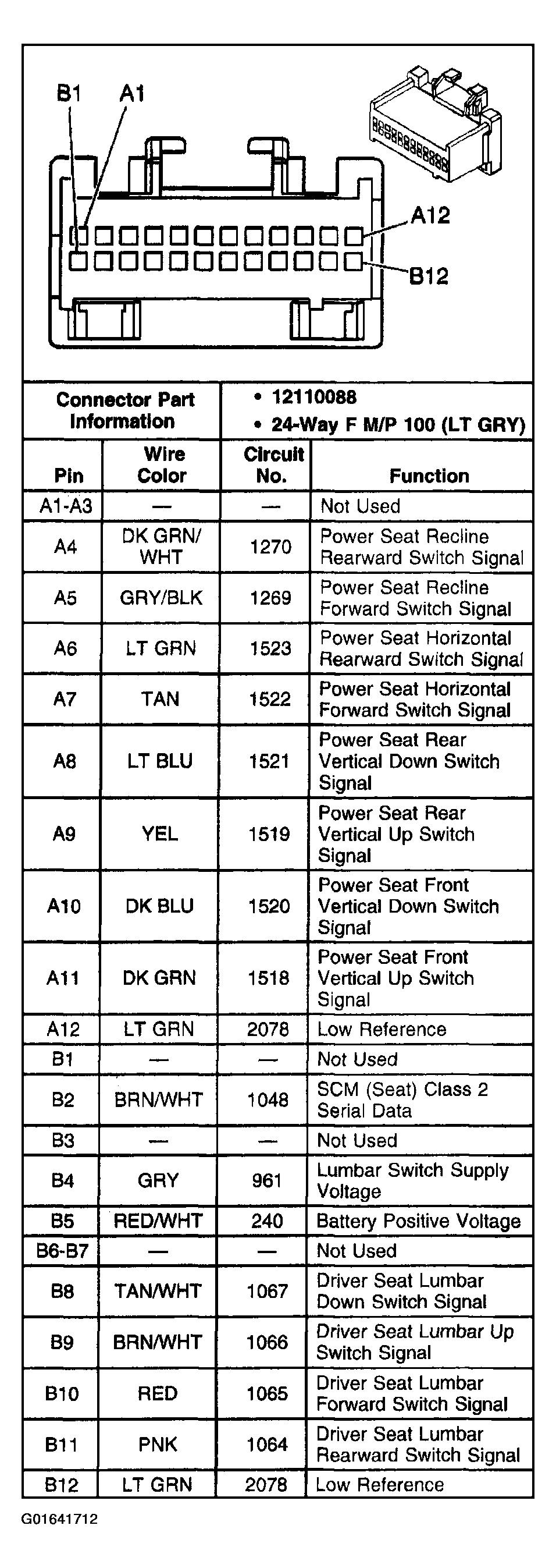

Fig 1: Memory Seat Module Connector End View - Driver C4
G01641712Courtesy of GENERAL MOTORS CORP.
