Memory Seat Module Connector End View - Passenger C2

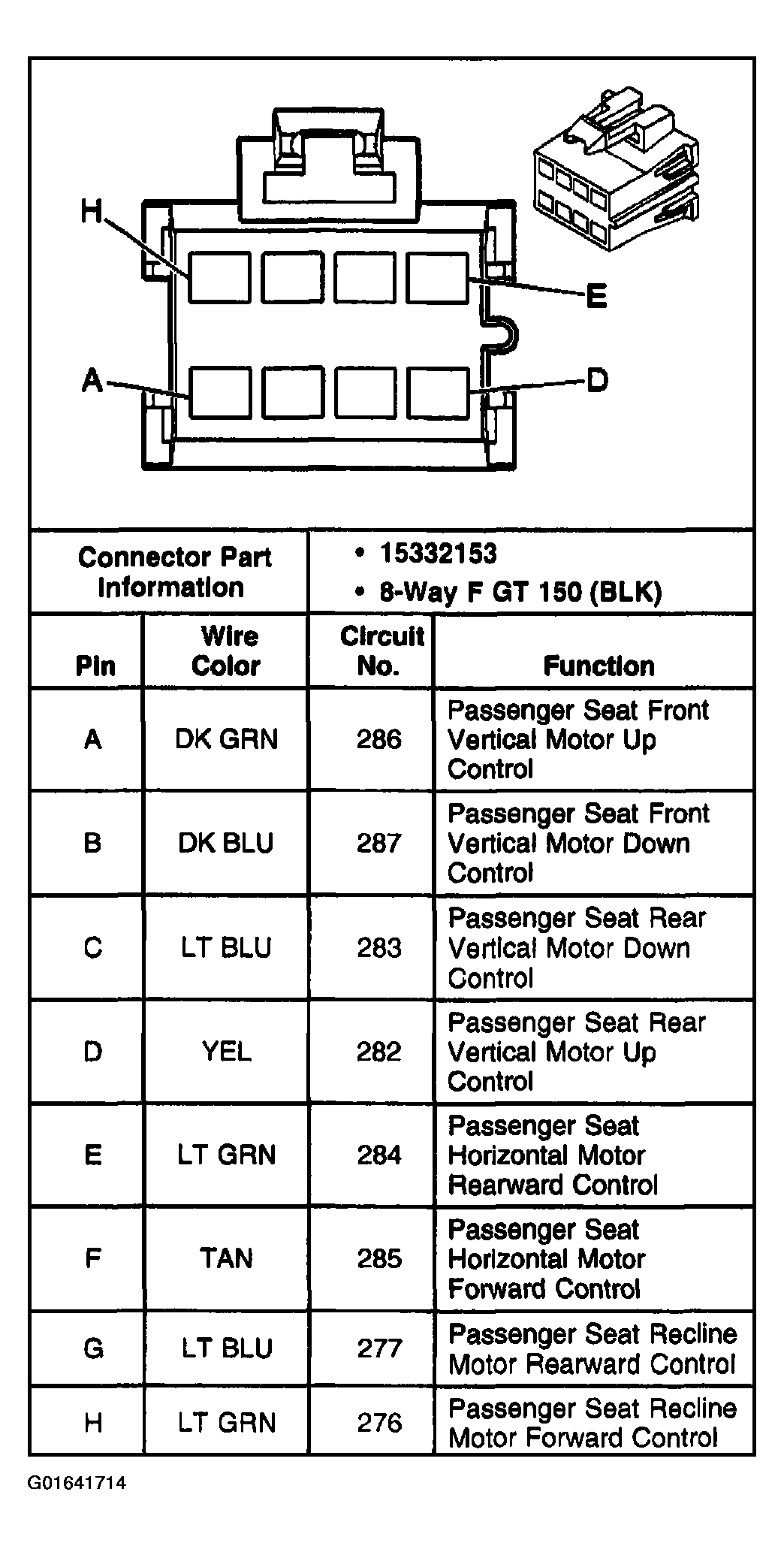

Fig 1: Memory Seat Module Connector End View - Passenger C2
G01641714Courtesy of GENERAL MOTORS CORP.
