Memory Seat Switch, Driver Door Module (DDM) Connector End View C4

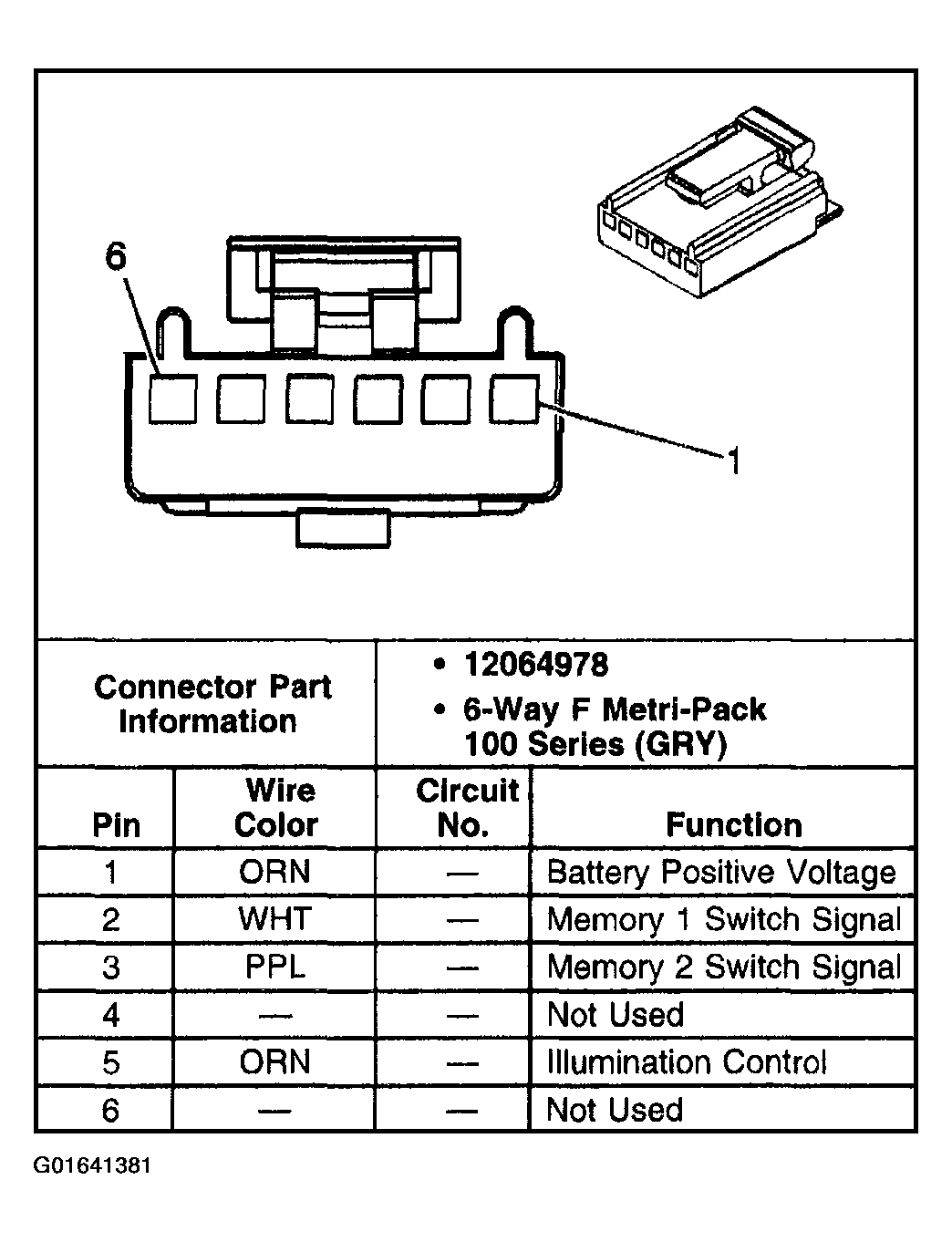

Fig 1: Memory Seat Switch, Driver Door Module (DDM) Connector End View C4
G01641381Courtesy of GENERAL MOTORS CORP.
