RR Window Motor Connector End View

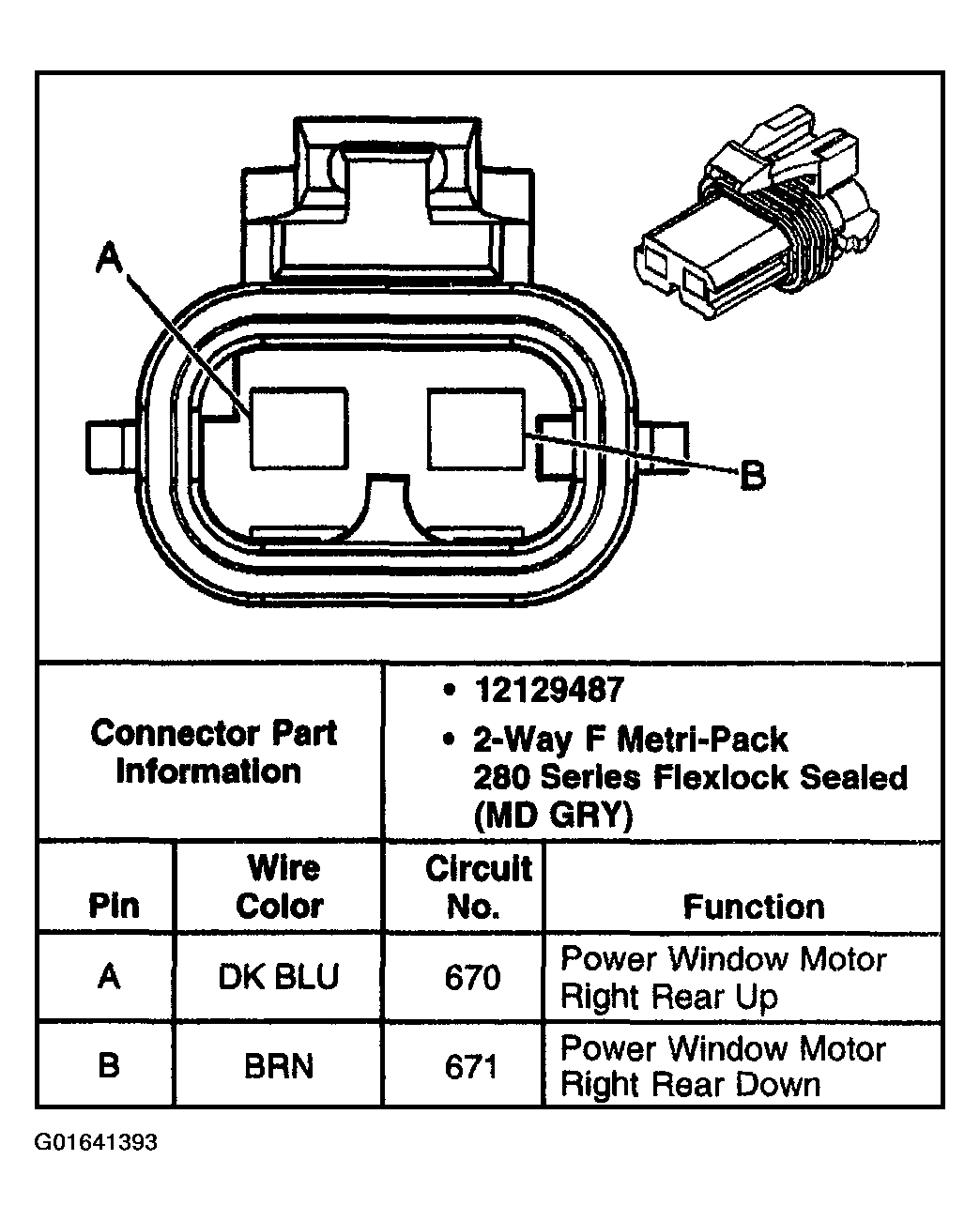

Fig 1: RR Window Motor Connector End View
G01641393Courtesy of GENERAL MOTORS CORP.
