Home › Oldsmobile › 2003 › Bravada AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End View › Rear Window Wiper/Washer Switch Connector End View

Rear Window Wiper/Washer Switch Connector End View

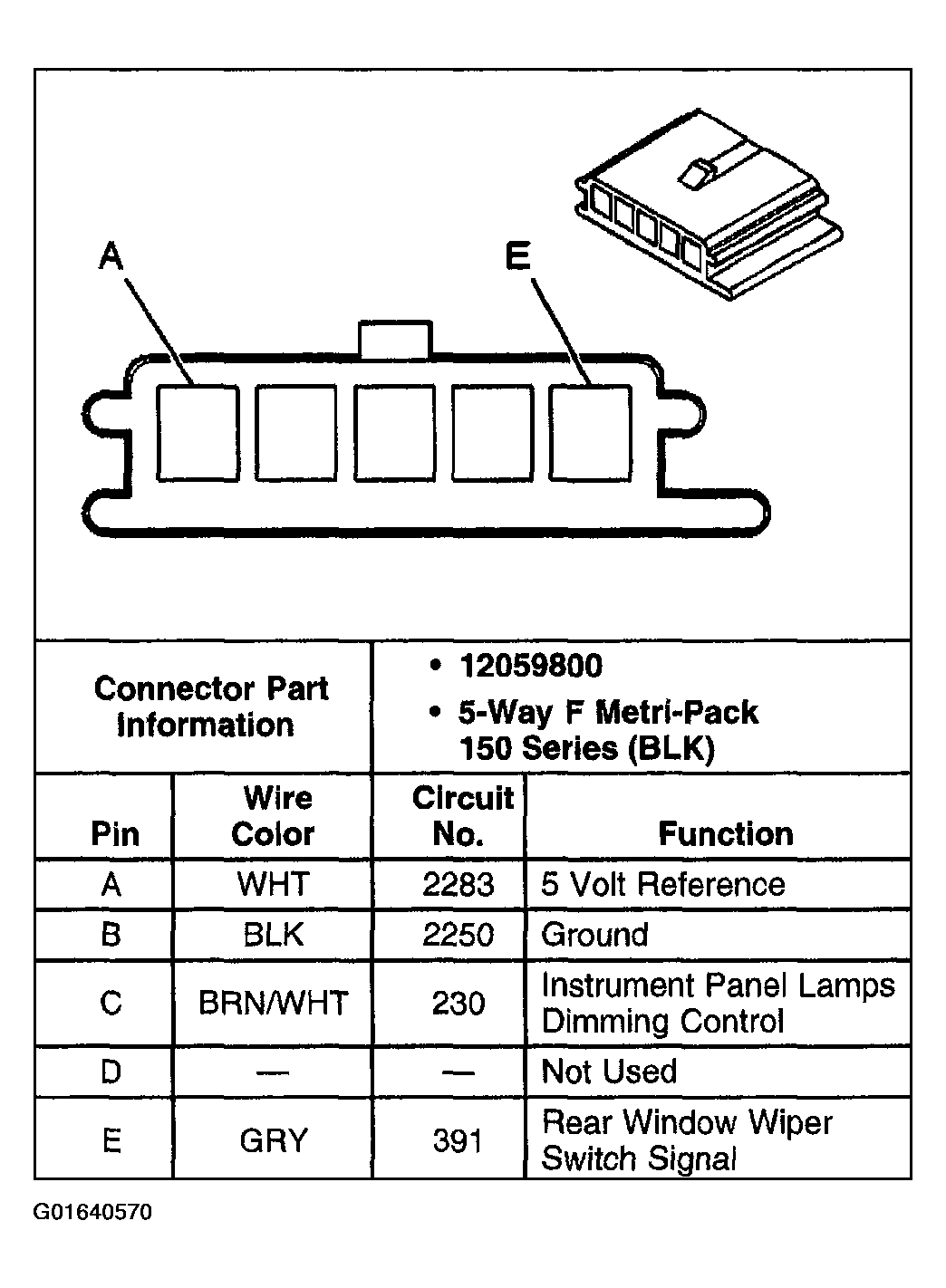

Fig 1: Rear Window Wiper/Washer Switch Connector End View
G01640570Courtesy of GENERAL MOTORS CORP.
