Recirculation Actuator Connector End View

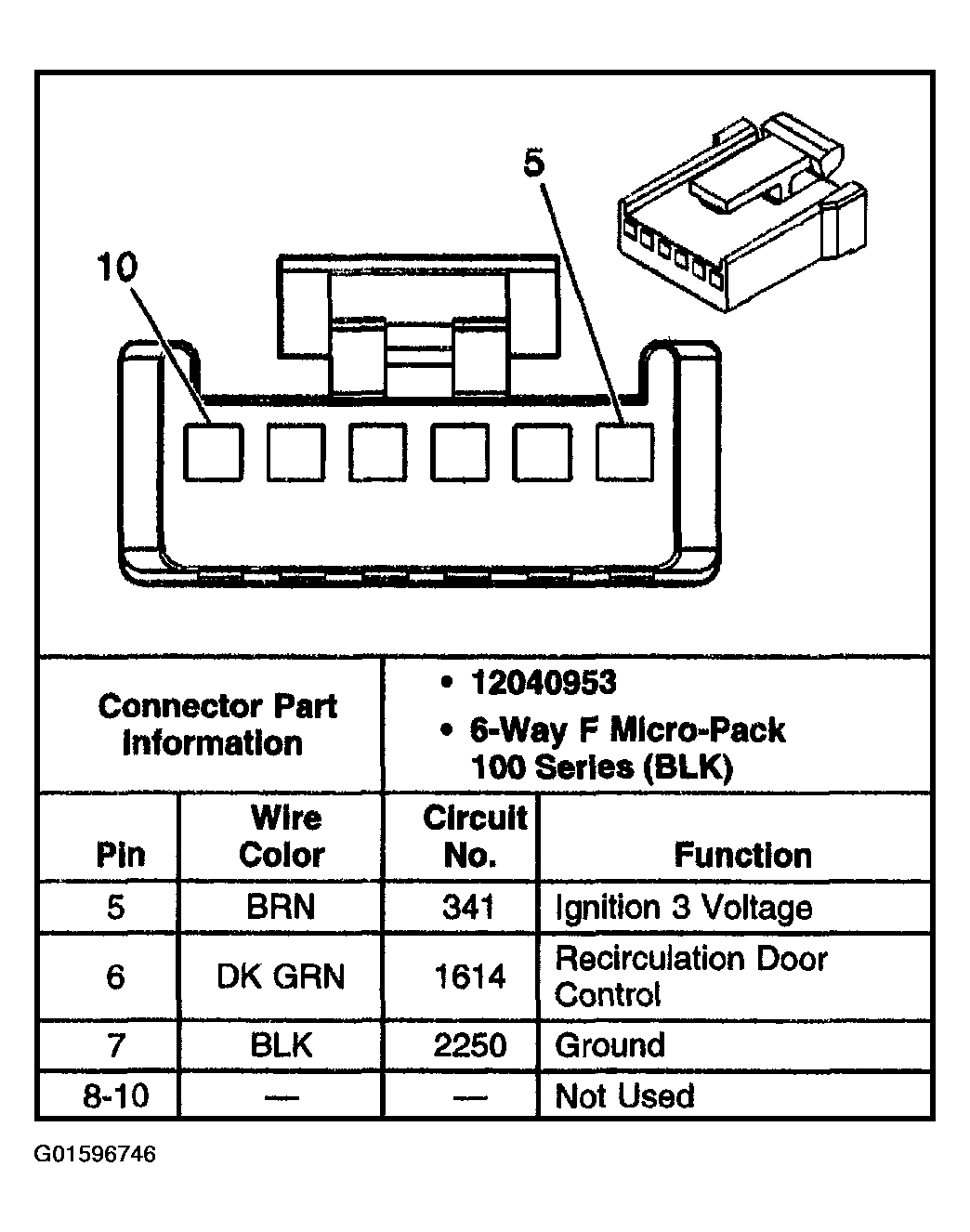

Fig 1: Recirculation Actuator Connector End View
G01596746Courtesy of GENERAL MOTORS CORP.
