Select/Personalization Switch Connector End View

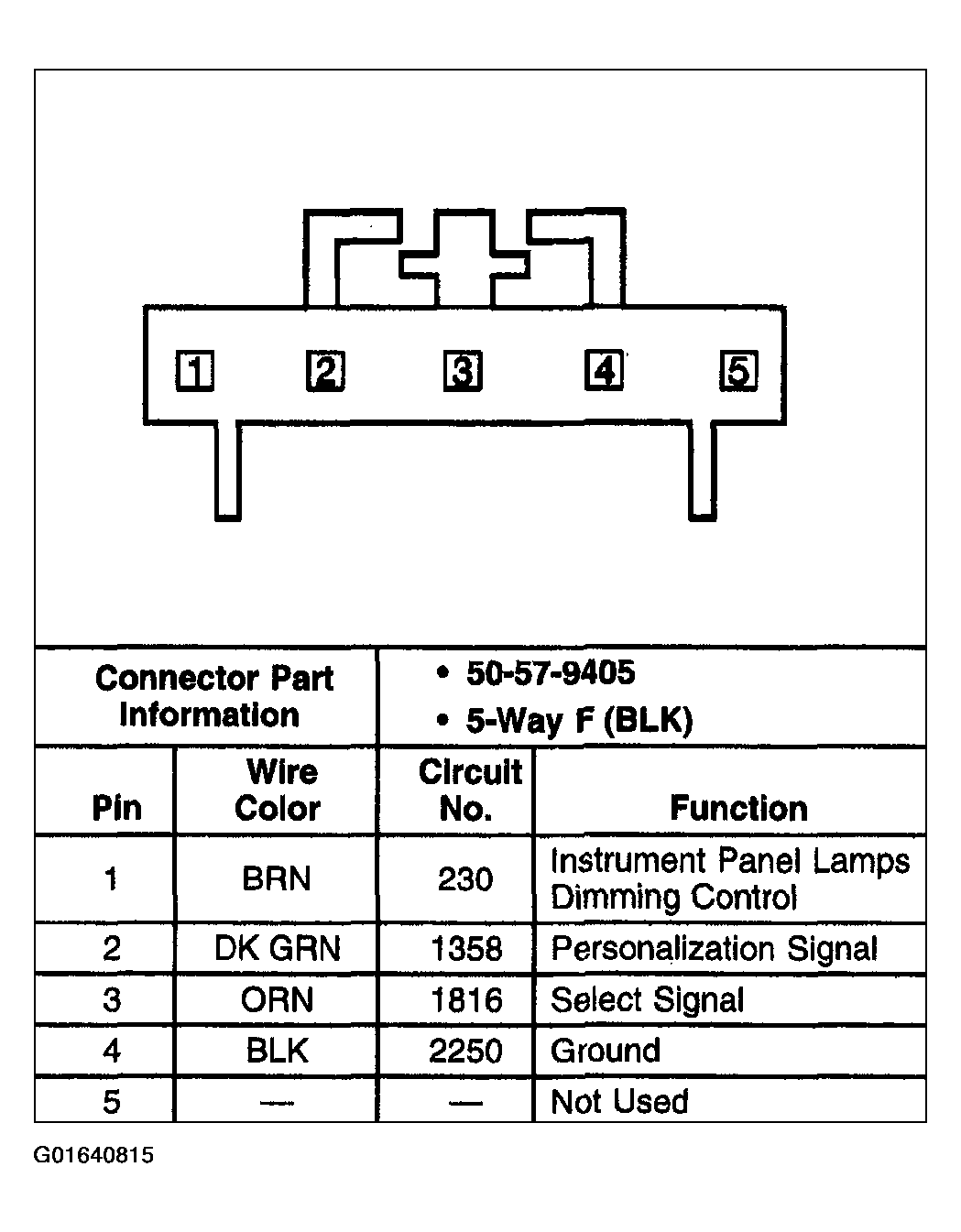

Fig 1: Select/Personalization Switch Connector End View
G01640815Courtesy of GENERAL MOTORS CORP.
