Connector End View
›
Splice Pack SP306 Connector End View
Splice Pack SP306 Connector End View

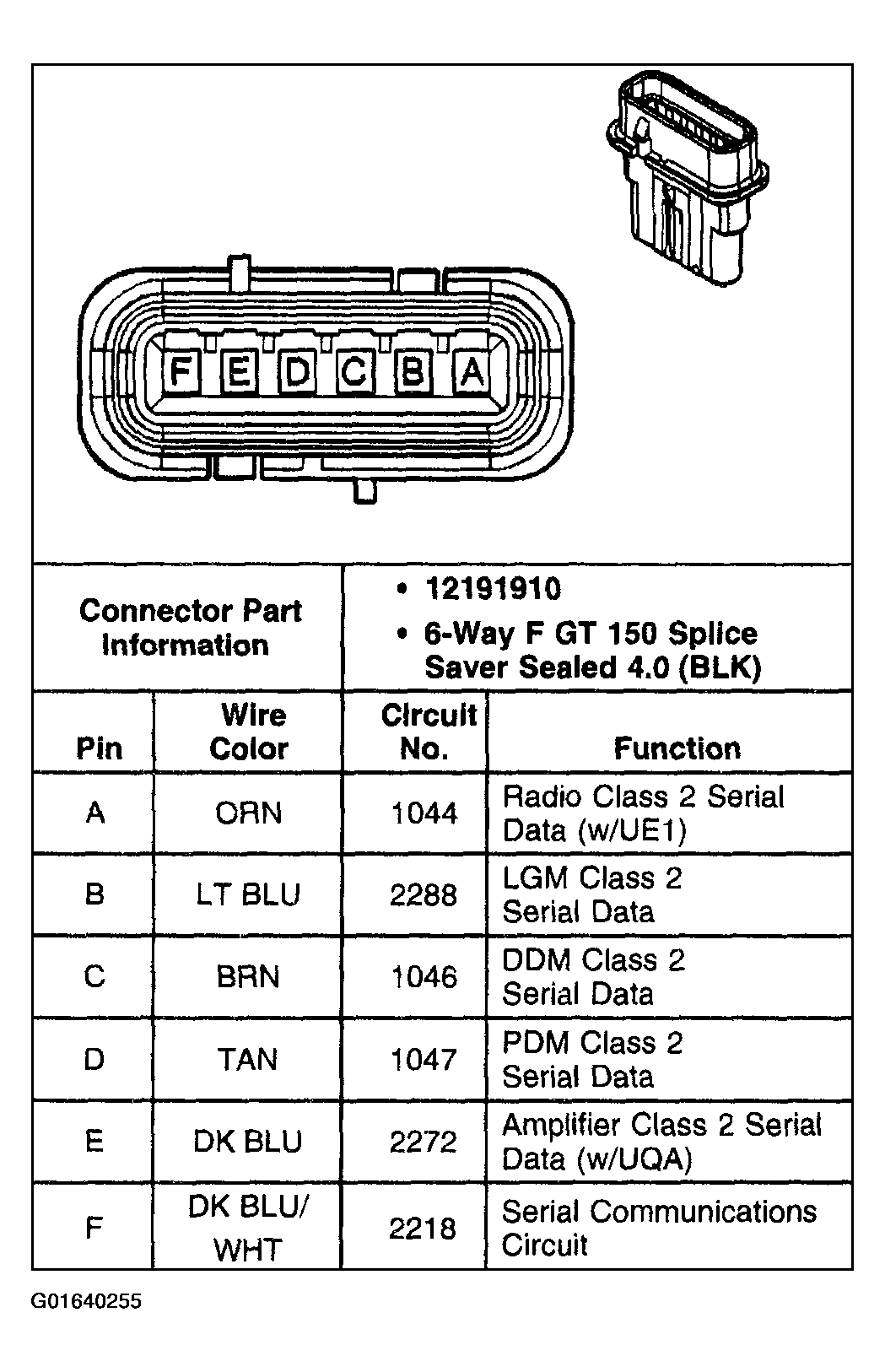

Fig 1: Splice Pack SP306 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
