Sunroof Module Connector End View C2

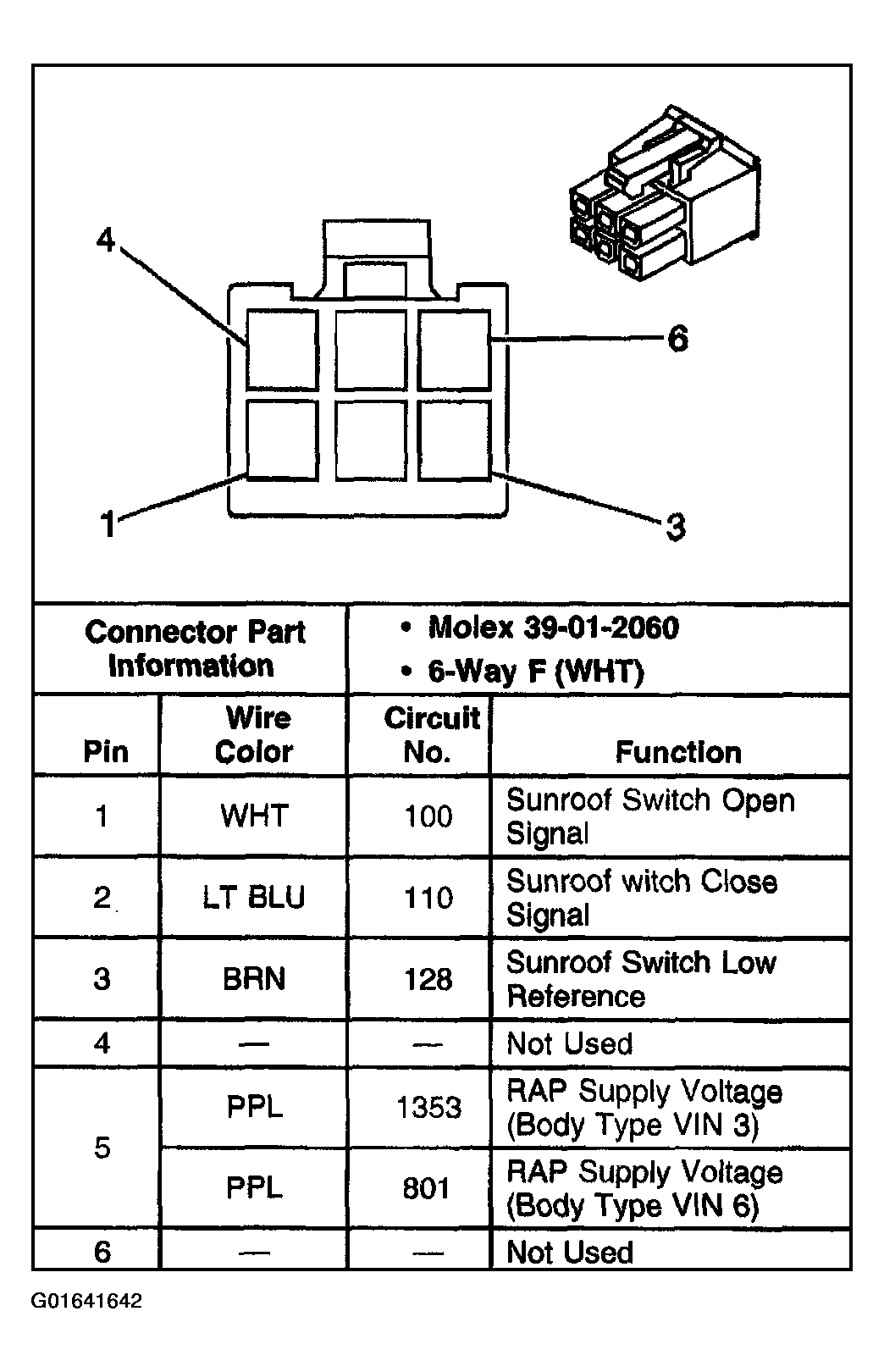

Fig 1: Sunroof Module Connector End View C2
G01641642Courtesy of GENERAL MOTORS CORP.
