Transfer Case Shift Control Module Connector End View C1

Fig 1: Transfer Case Shift Control Module Connector End View C1
G01597683Courtesy of GENERAL MOTORS CORP.

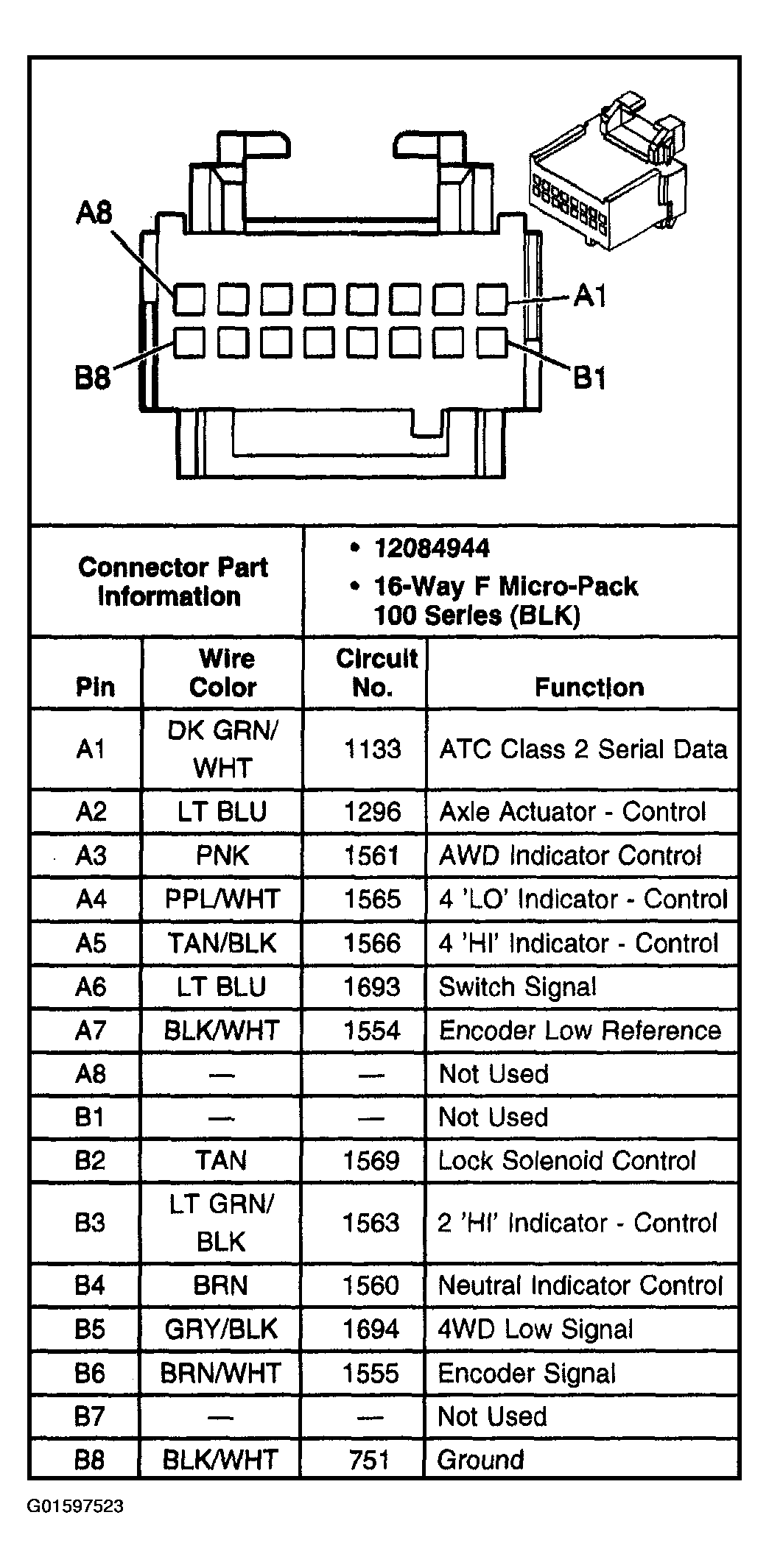

Fig 1: Transfer Case Shift Control Module Connector End View C1
G01597523Courtesy of GENERAL MOTORS CORP.
