Transfer Case Shift Control Module Connector End View C2

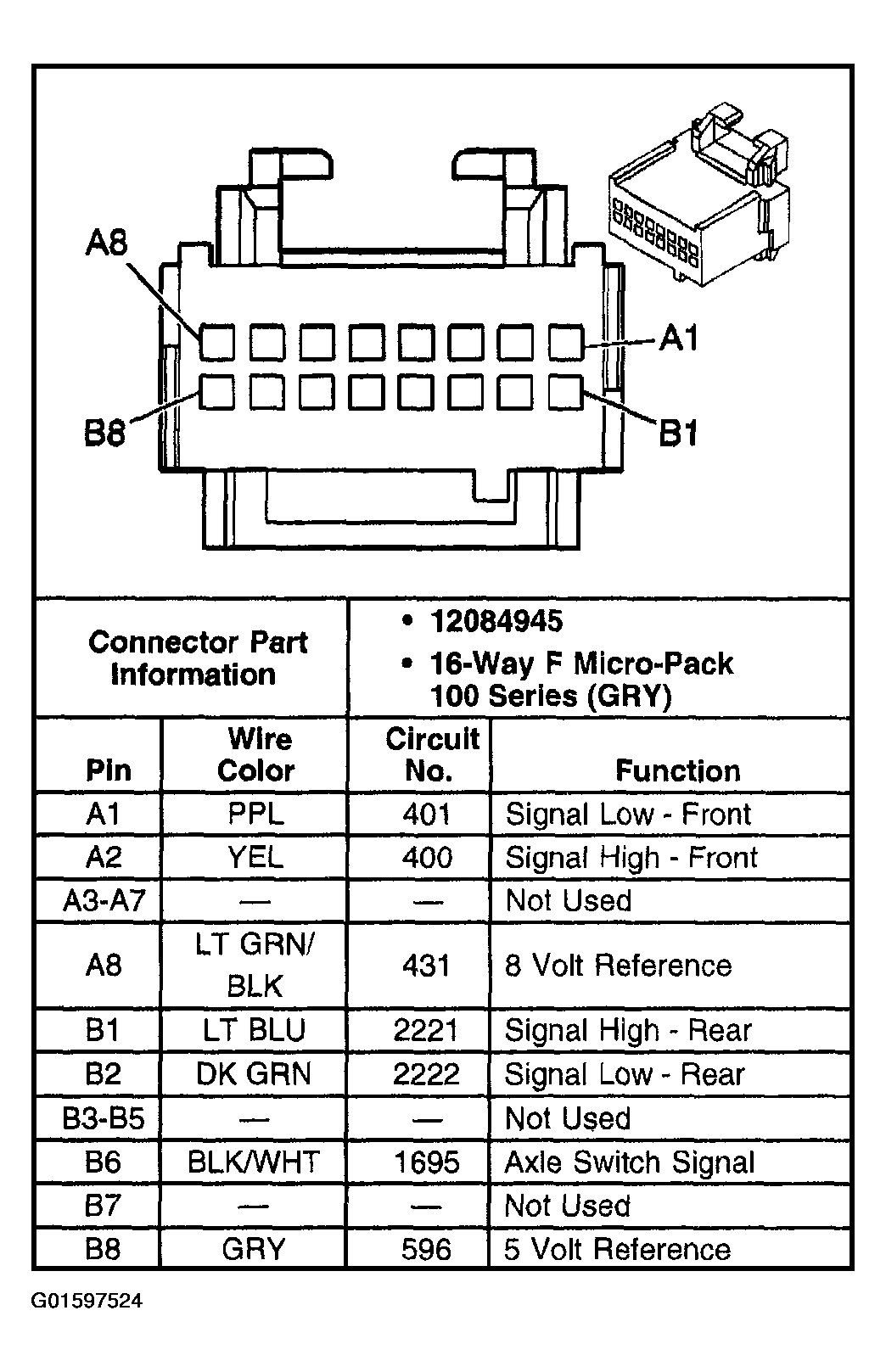

Fig 1: Transfer Case Shift Control Module Connector End View C2
G01597524Courtesy of GENERAL MOTORS CORP.
