Transfer Case Shift Control Module Connector End View C3

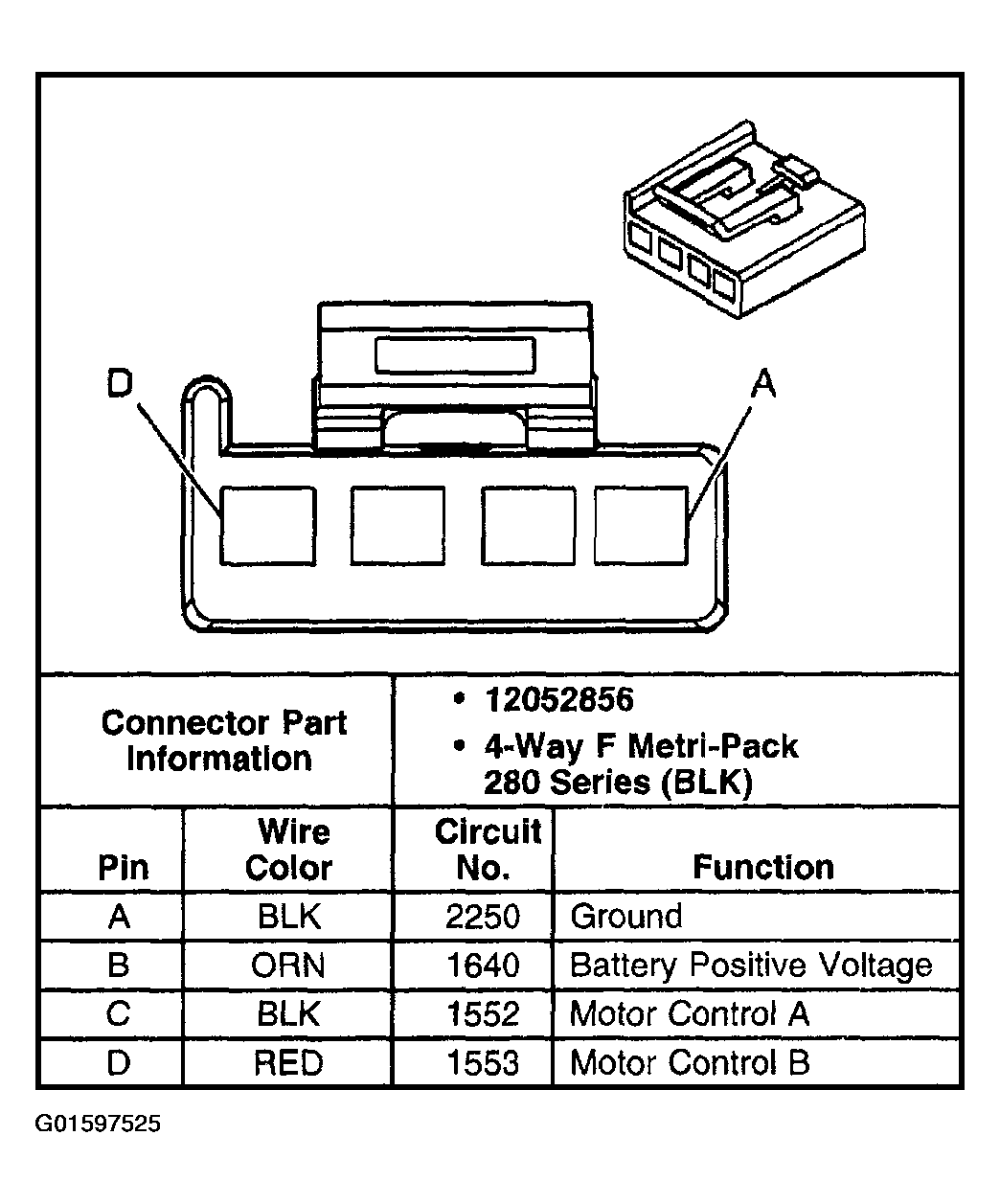

Fig 1: Transfer Case Shift Control Module Connector End View C3
G01597525Courtesy of GENERAL MOTORS CORP.
