Transfer Case Shift Control Switch Connector End View

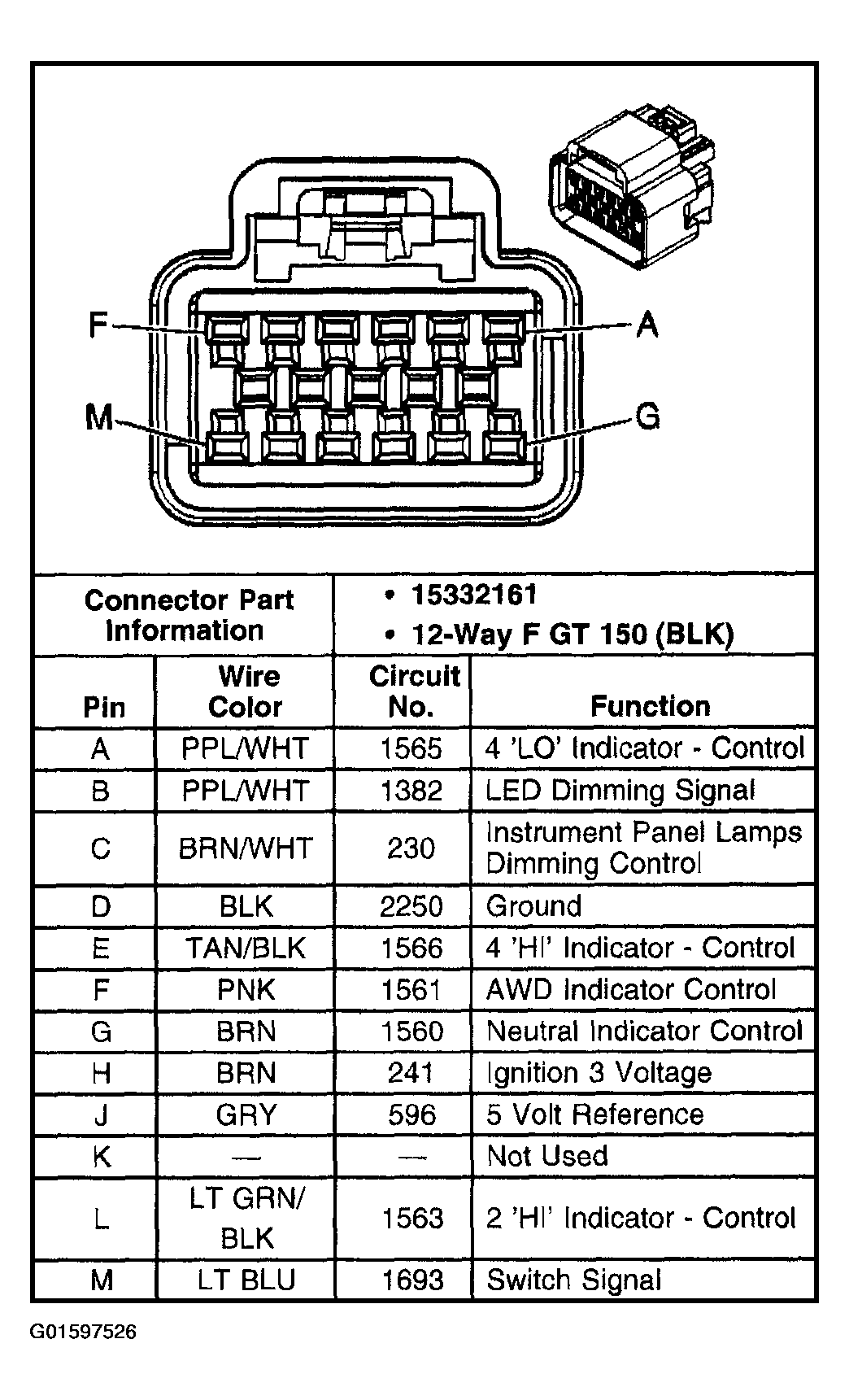

Fig 1: Transfer Case Shift Control Switch Connector End View
G01597526Courtesy of GENERAL MOTORS CORP.
