Volume/AM/FM Switch Connector End View (w/STW)

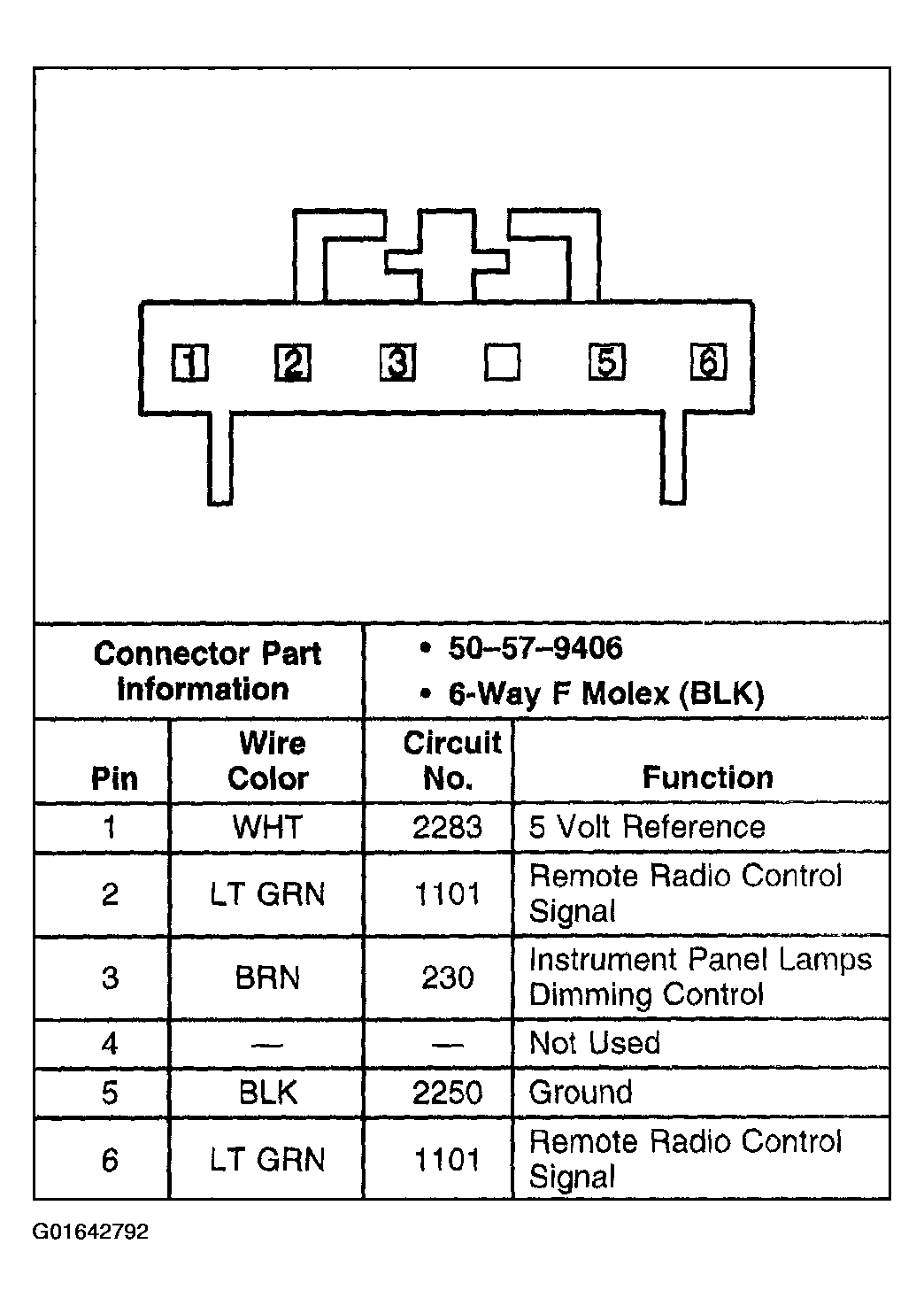

Fig 1: Volume/AM/FM Switch Connector End View (w/STW)
G01642792Courtesy of GENERAL MOTORS CORP.
