Horns Connector End Views

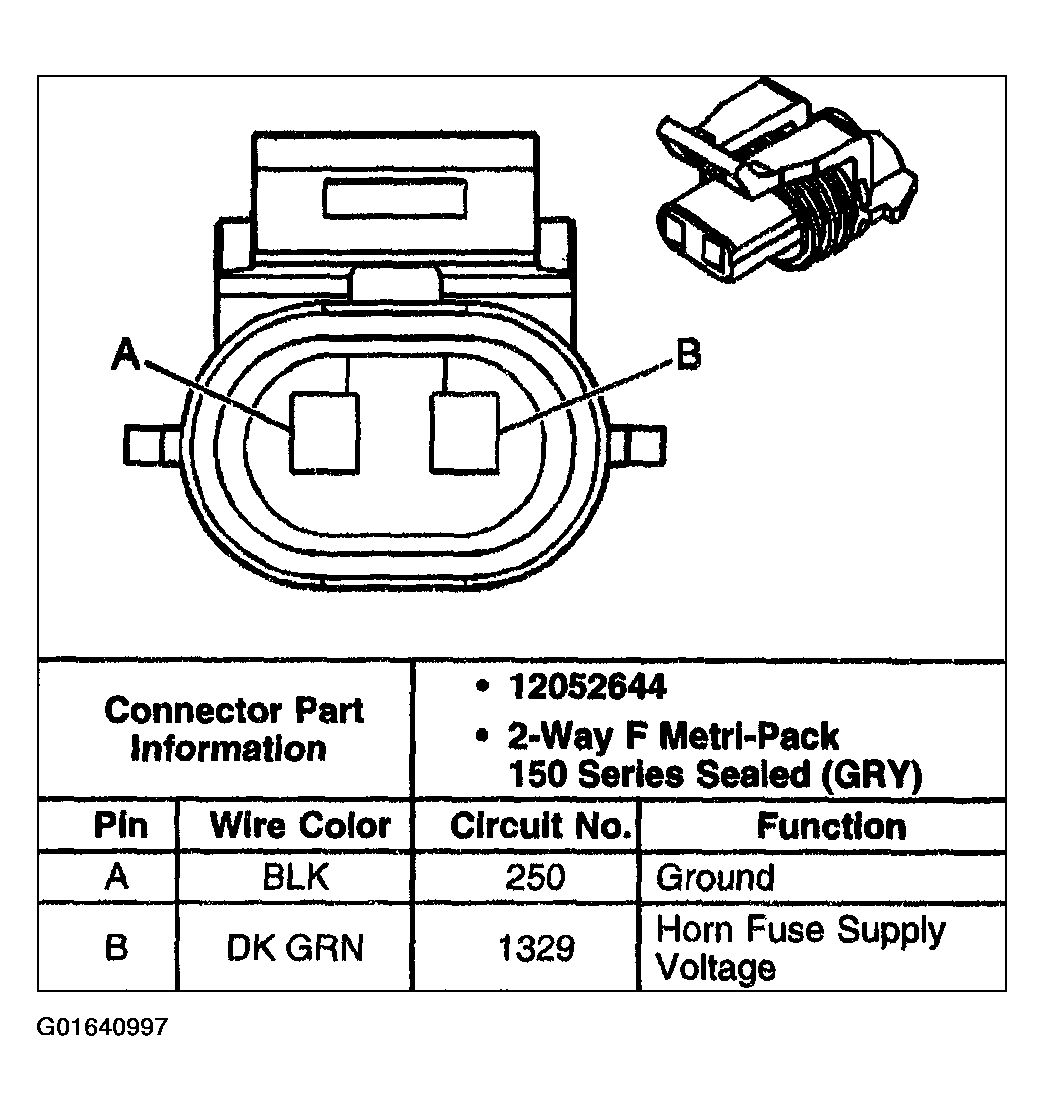

Fig 1: Identifying Horn Assembly Connector
G01640997Courtesy of GENERAL MOTORS CORP.
