Cylinder Head Components

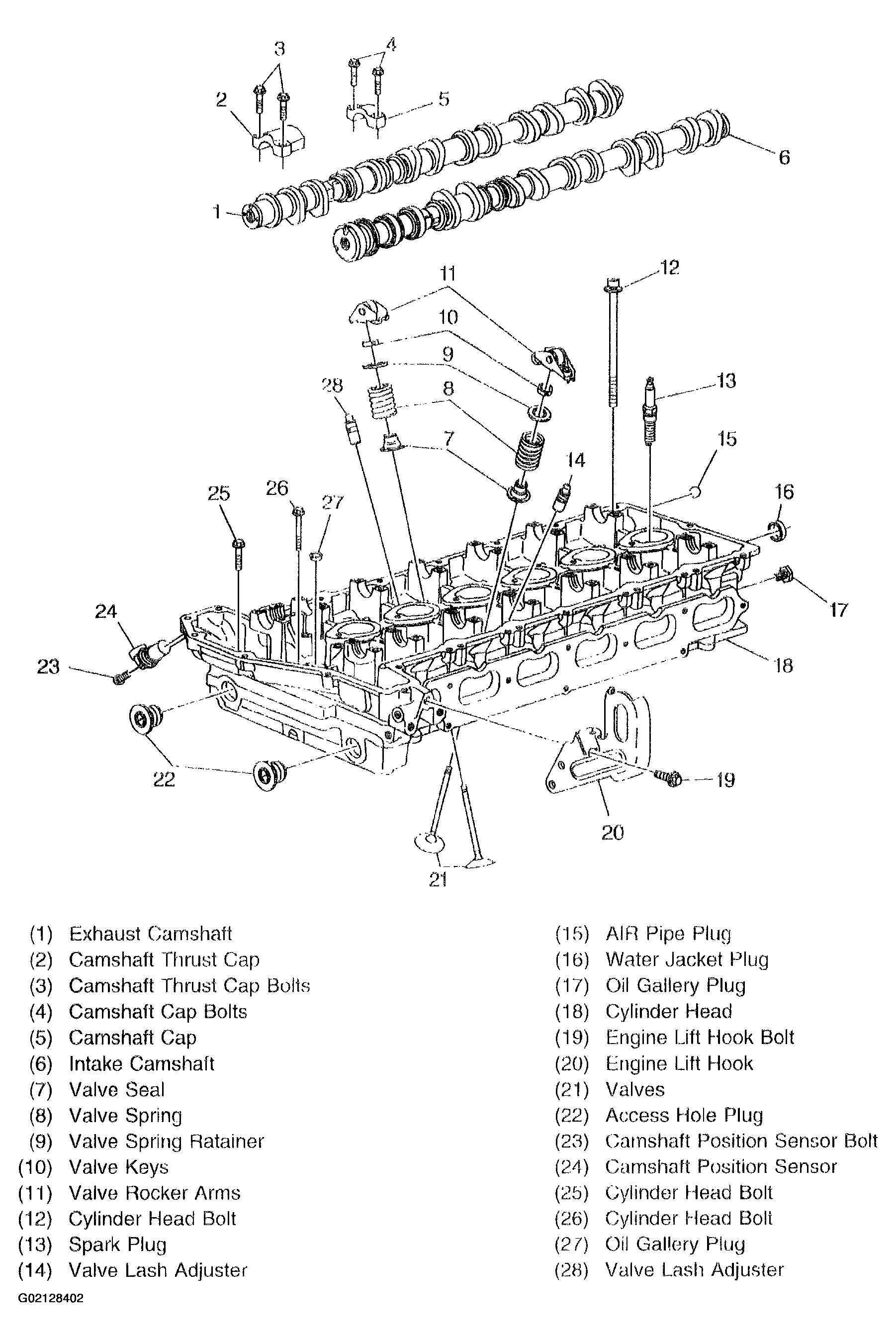

Fig 1: Exploded View of Cylinder Head
G02128402Courtesy of GENERAL MOTORS CORP.
