Engine Cover and Components

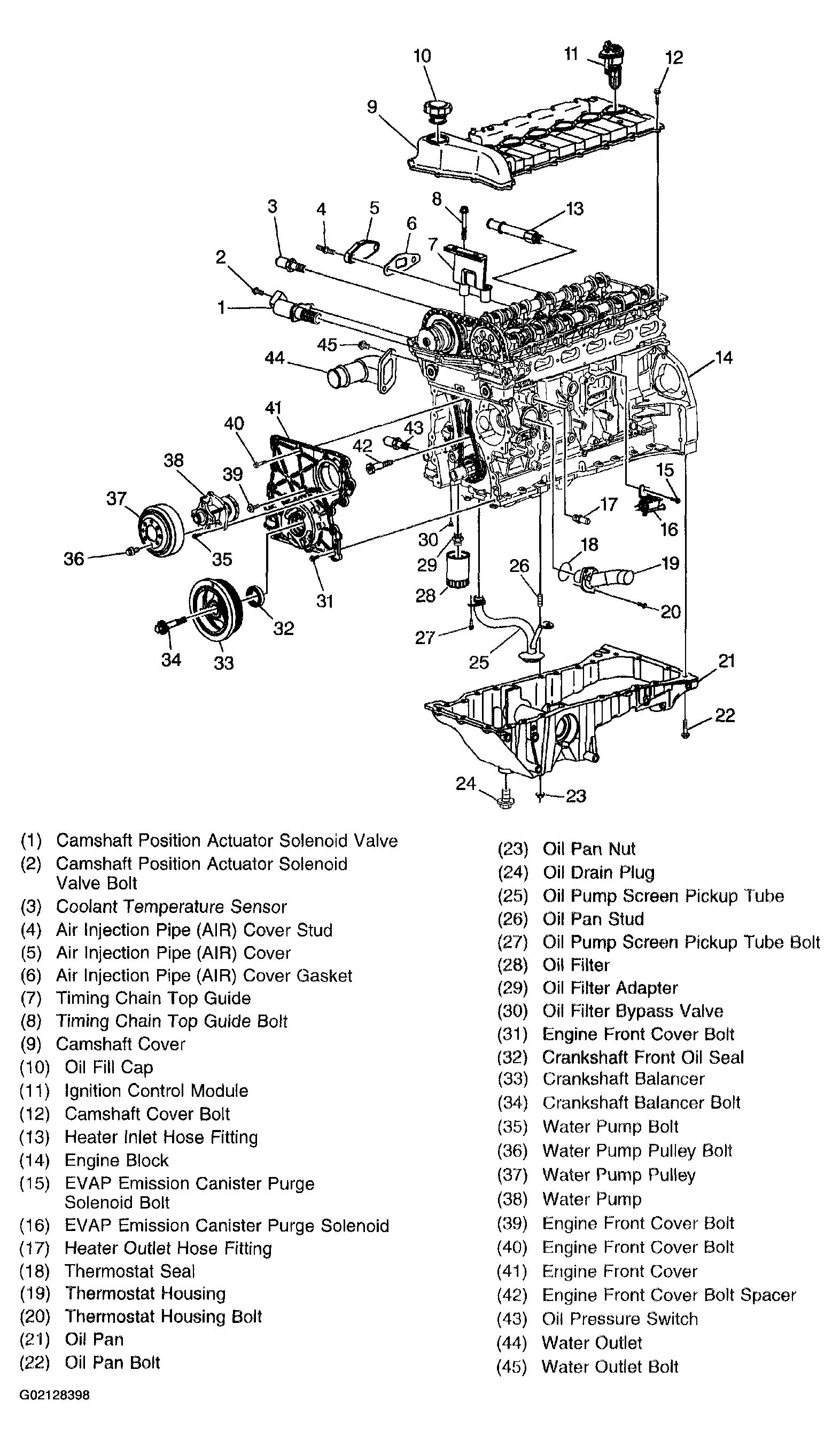

Fig 1: Exploded View of Engine Cover and Components
G02128398Courtesy of GENERAL MOTORS CORP.
