Lower Engine Components

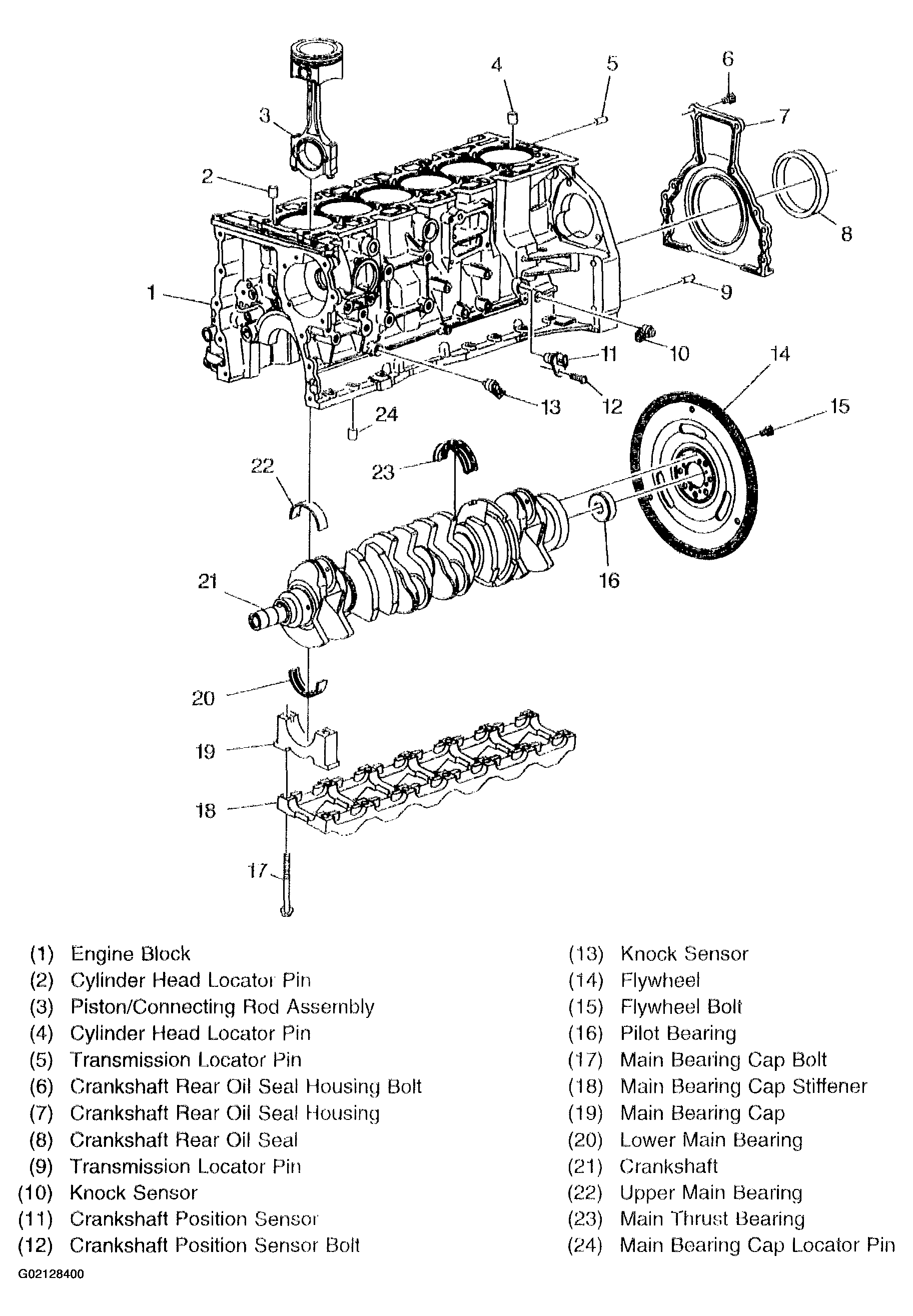

Fig 1: Exploded View of Lower Engine
G02128400Courtesy of GENERAL MOTORS CORP.
