Timing Chain and Components

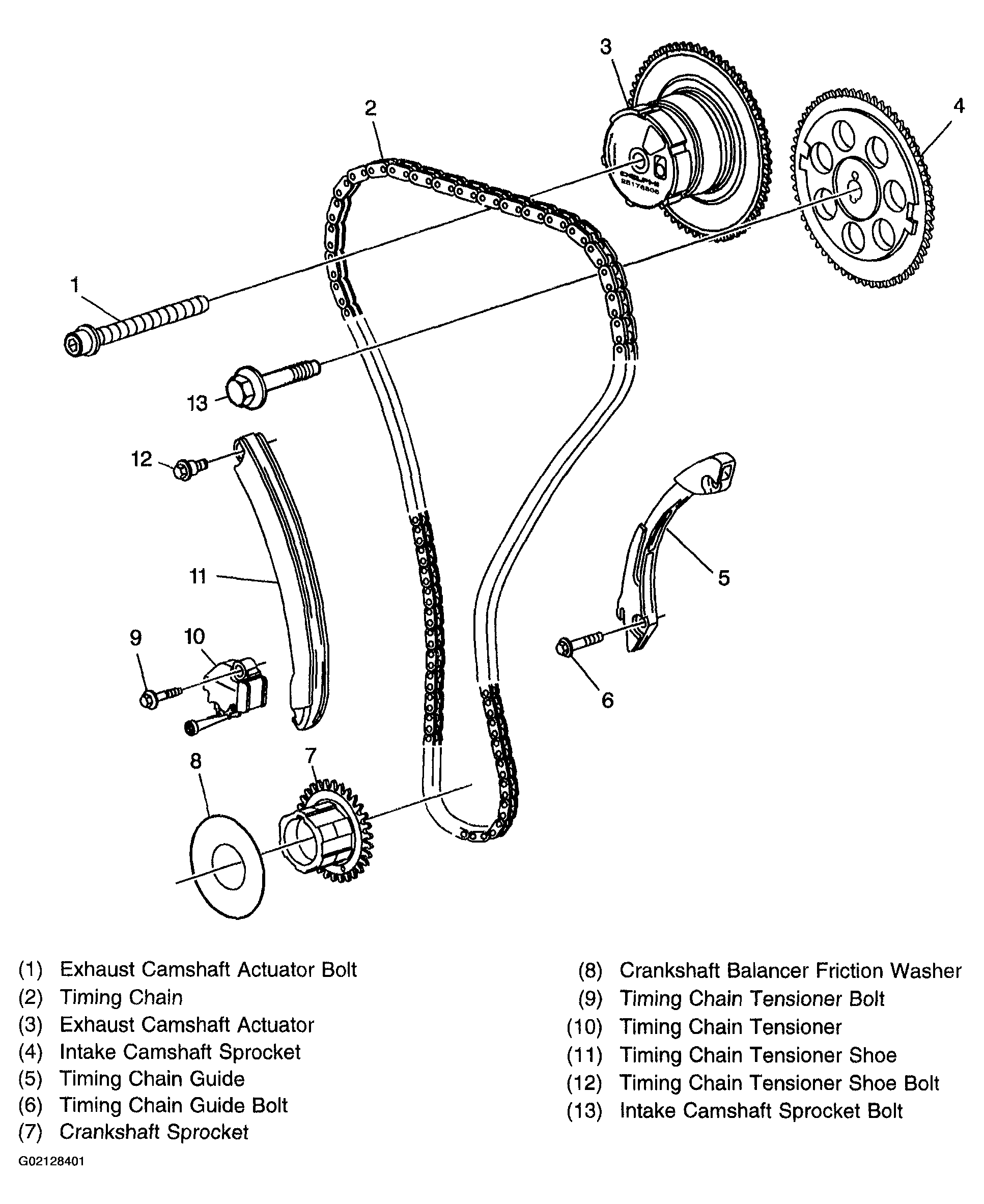

Fig 1: Exploded View of Timing Chain
G02128401Courtesy of GENERAL MOTORS CORP.
