Cylinder Head - End View (Front)

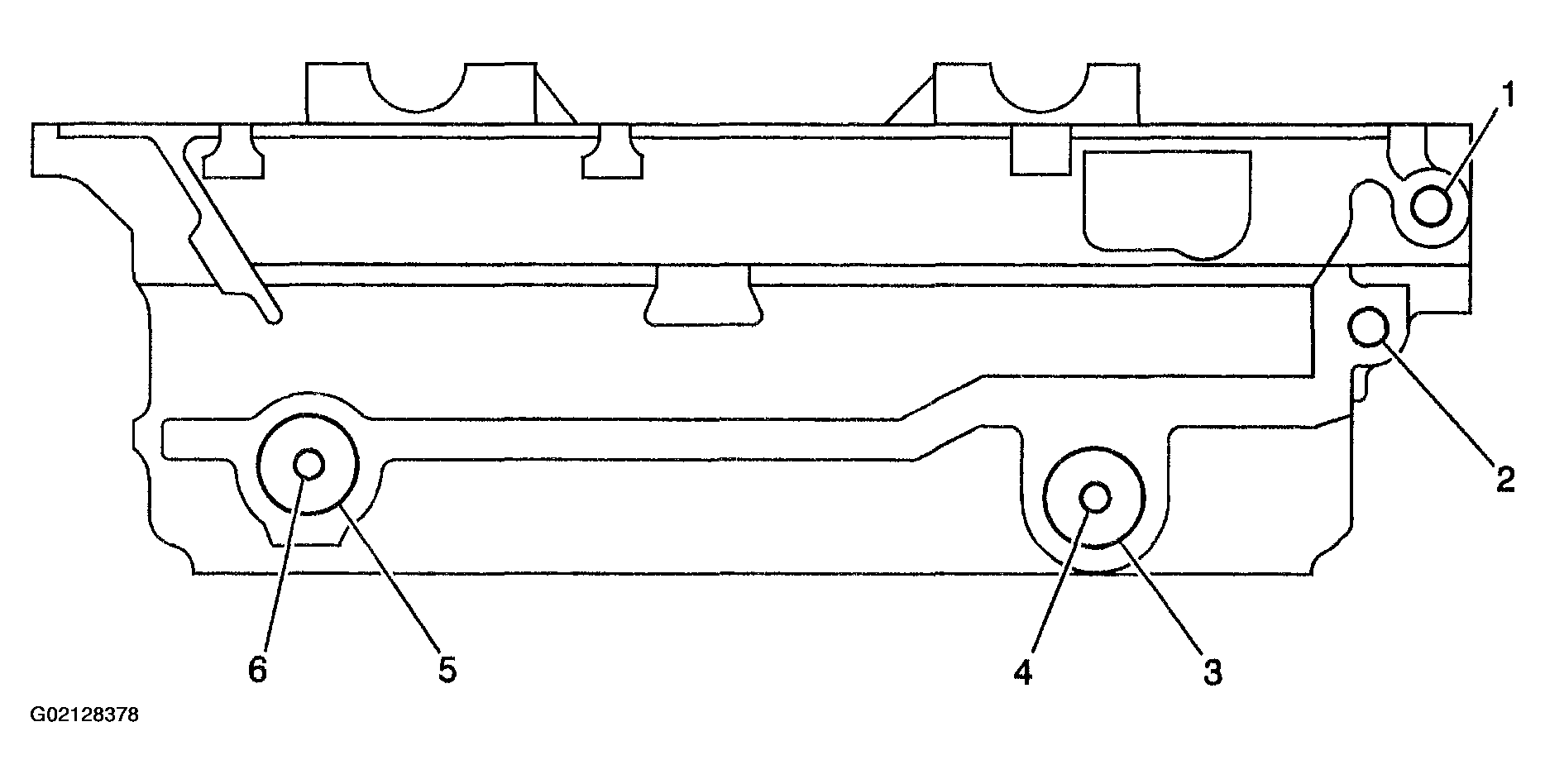

Fig 1: Thread Repair Specifications - Cylinder Head - End View (Front)
G02128378Courtesy of GENERAL MOTORS CORP.

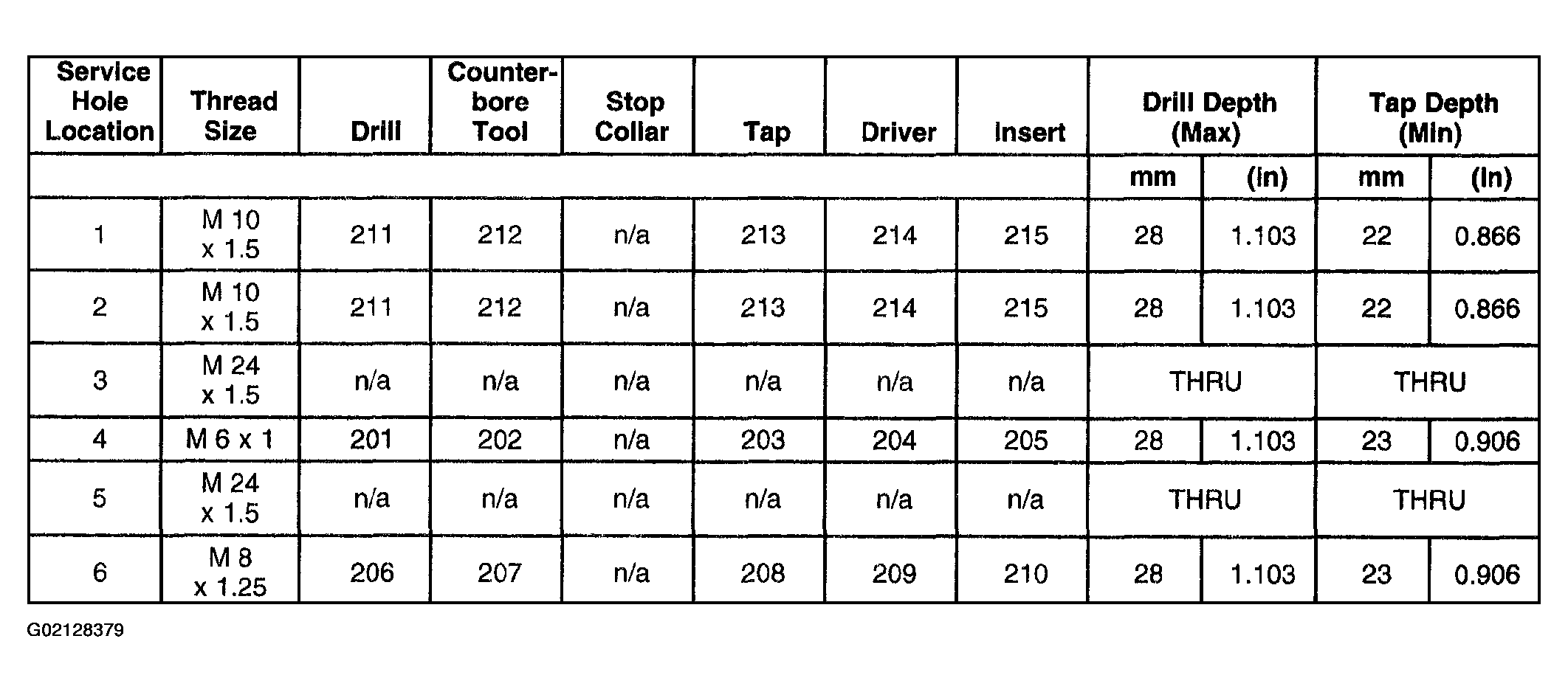

Fig 2: Thread Repair Specifications - Cylinder Head - End View Callouts (Front)
G02128379Courtesy of GENERAL MOTORS CORP.
