Cylinder Head - Intake Manifold Deck View

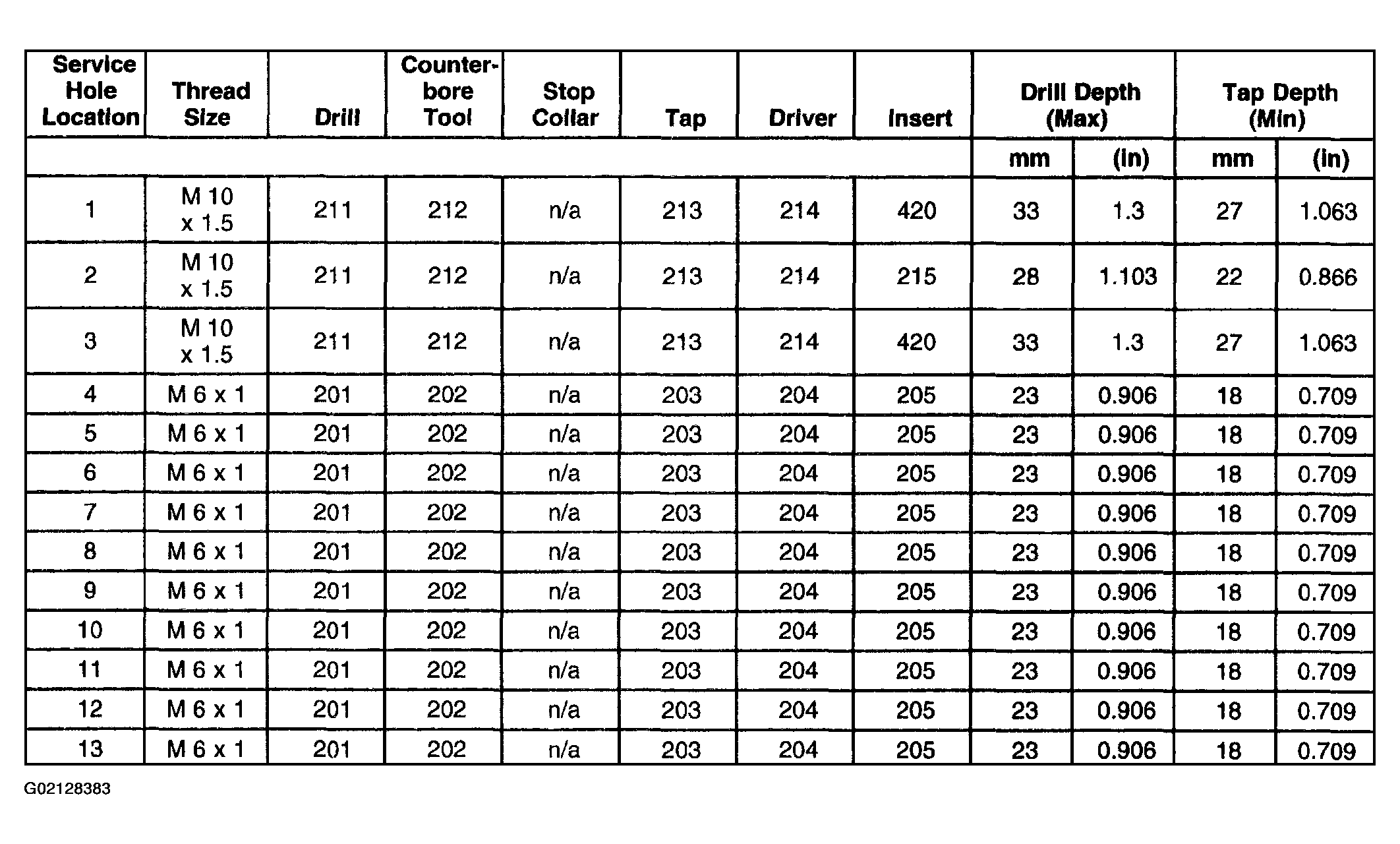

Fig 1: Thread Repair Specifications - Cylinder Head - Intake Manifold Deck View

Courtesy of GENERAL MOTORS CORP.

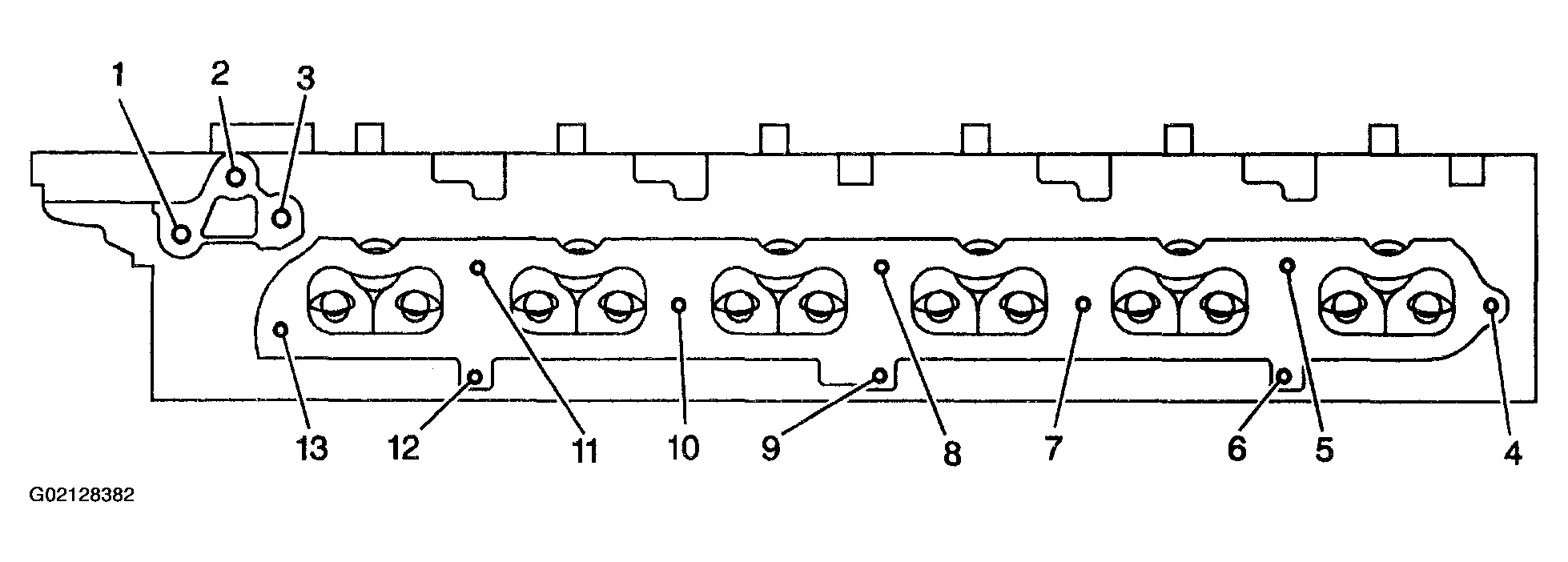

Fig 2: Thread Repair Specifications - Cylinder Head - Intake Manifold Deck View Callouts

Courtesy of GENERAL MOTORS CORP.
