Engine Block - Bottom View

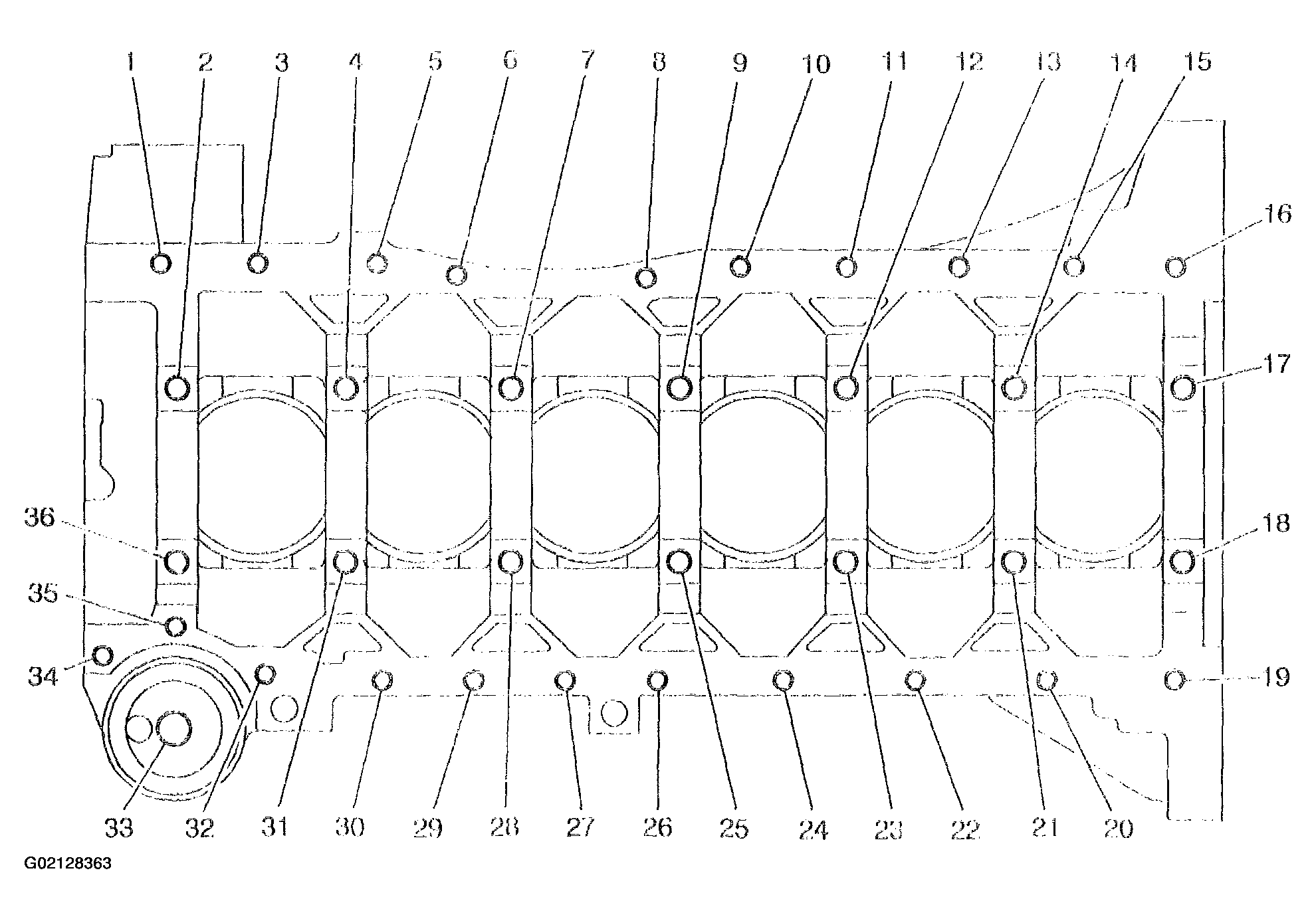

Fig 1: Thread Repair Specifications - Engine Block - Bottom View
G02128363Courtesy of GENERAL MOTORS CORP.

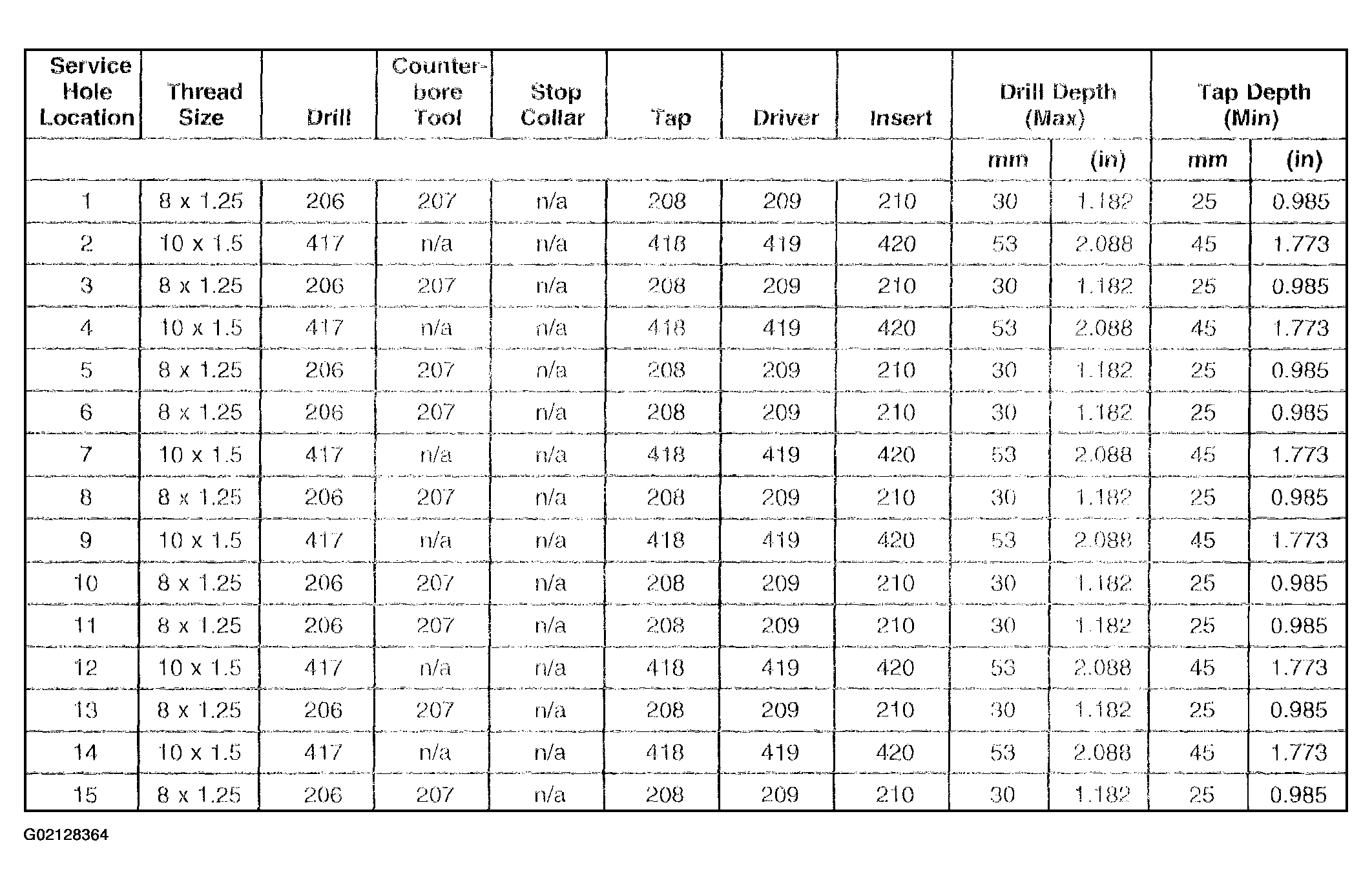

Fig 2: Thread Repair Specifications - Engine Block - Bottom View Callouts (1 Of 2)
G02128364Courtesy of GENERAL MOTORS CORP.

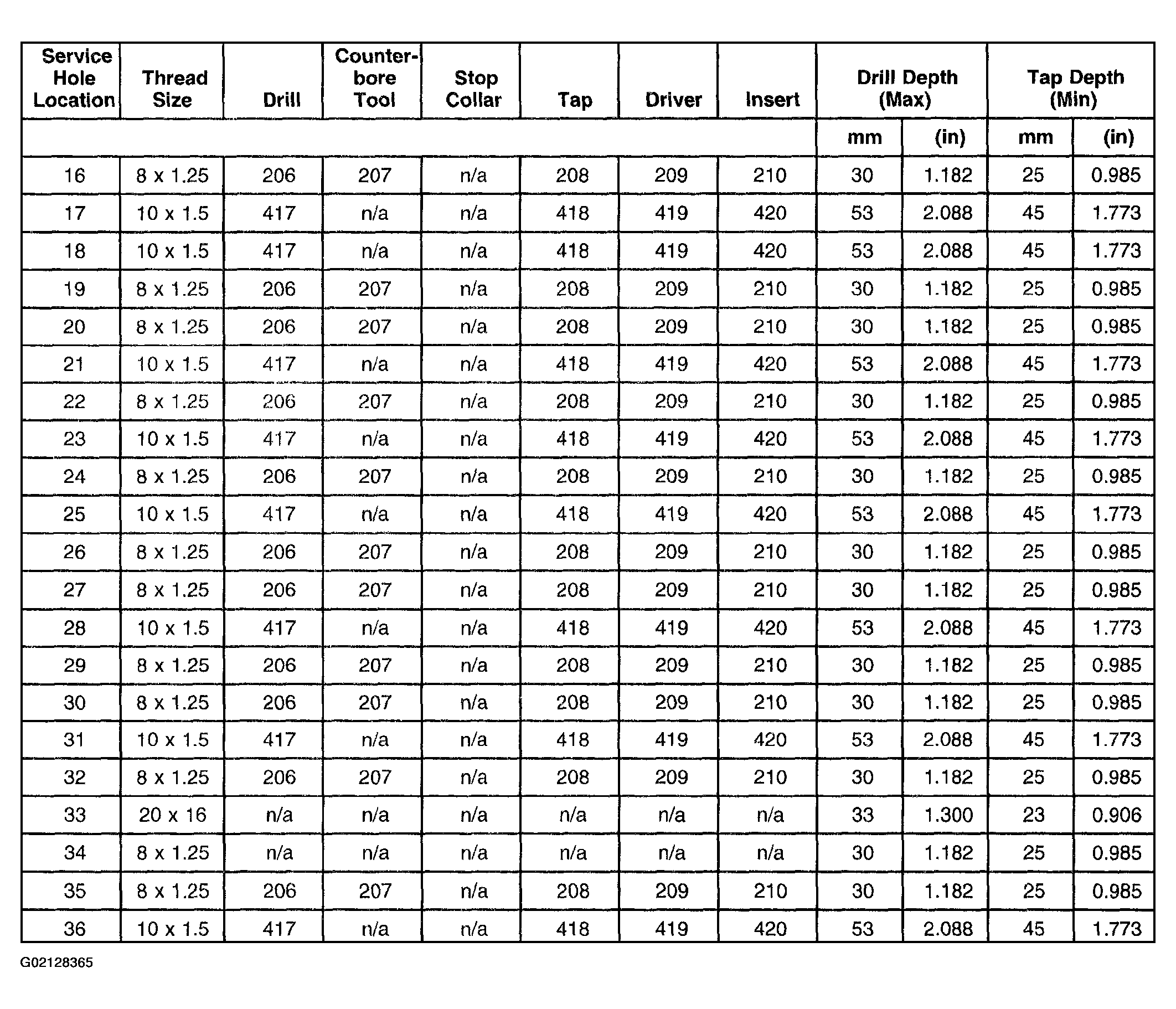

Fig 3: Thread Repair Specifications - Engine Block - Bottom View Callouts (2 Of 2)
G02128365Courtesy of GENERAL MOTORS CORP.
