Engine Block - Rear View

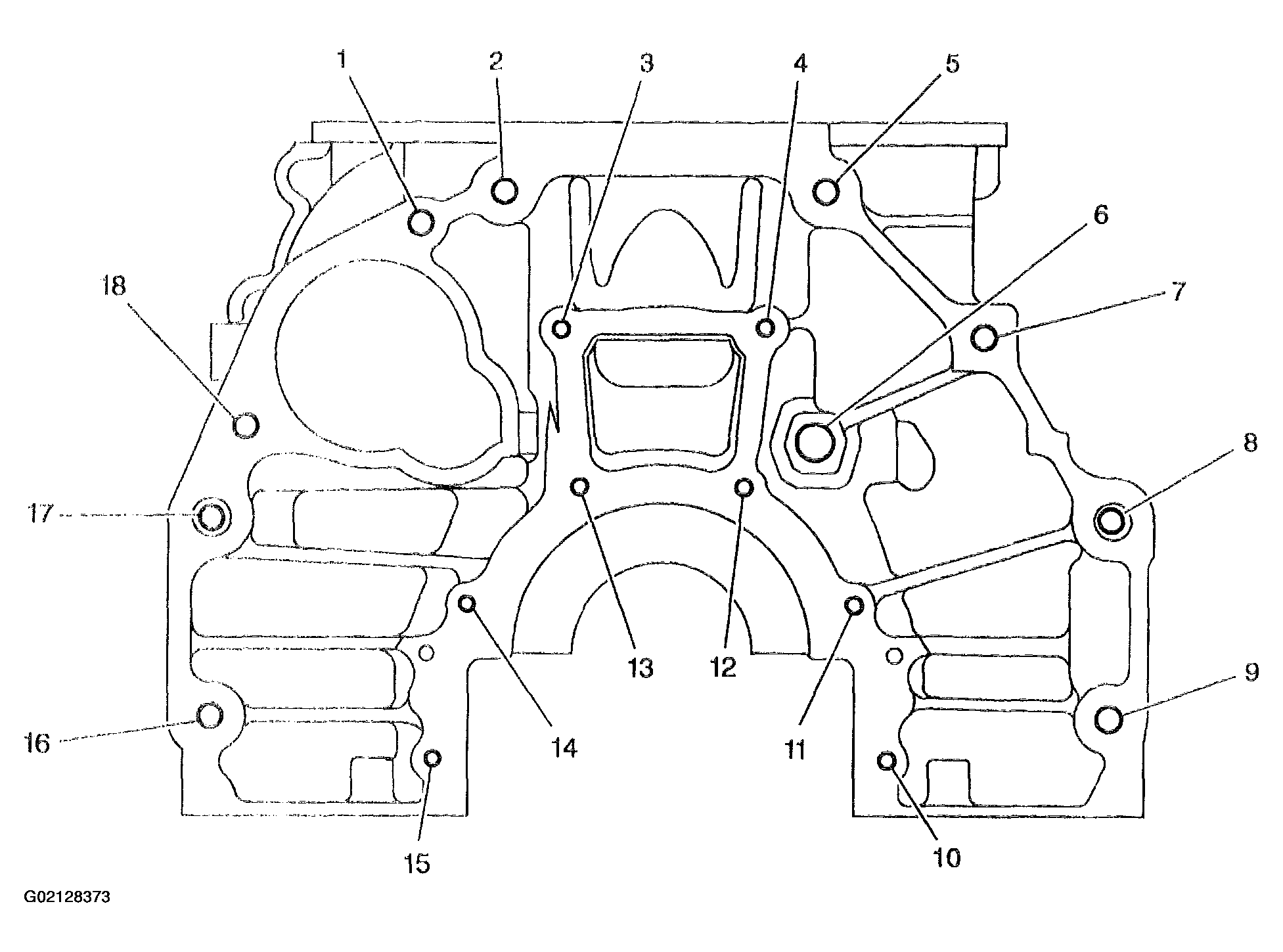

Fig 1: Thread Repair Specifications - Engine Block - Rear View
G02128373Courtesy of GENERAL MOTORS CORP.

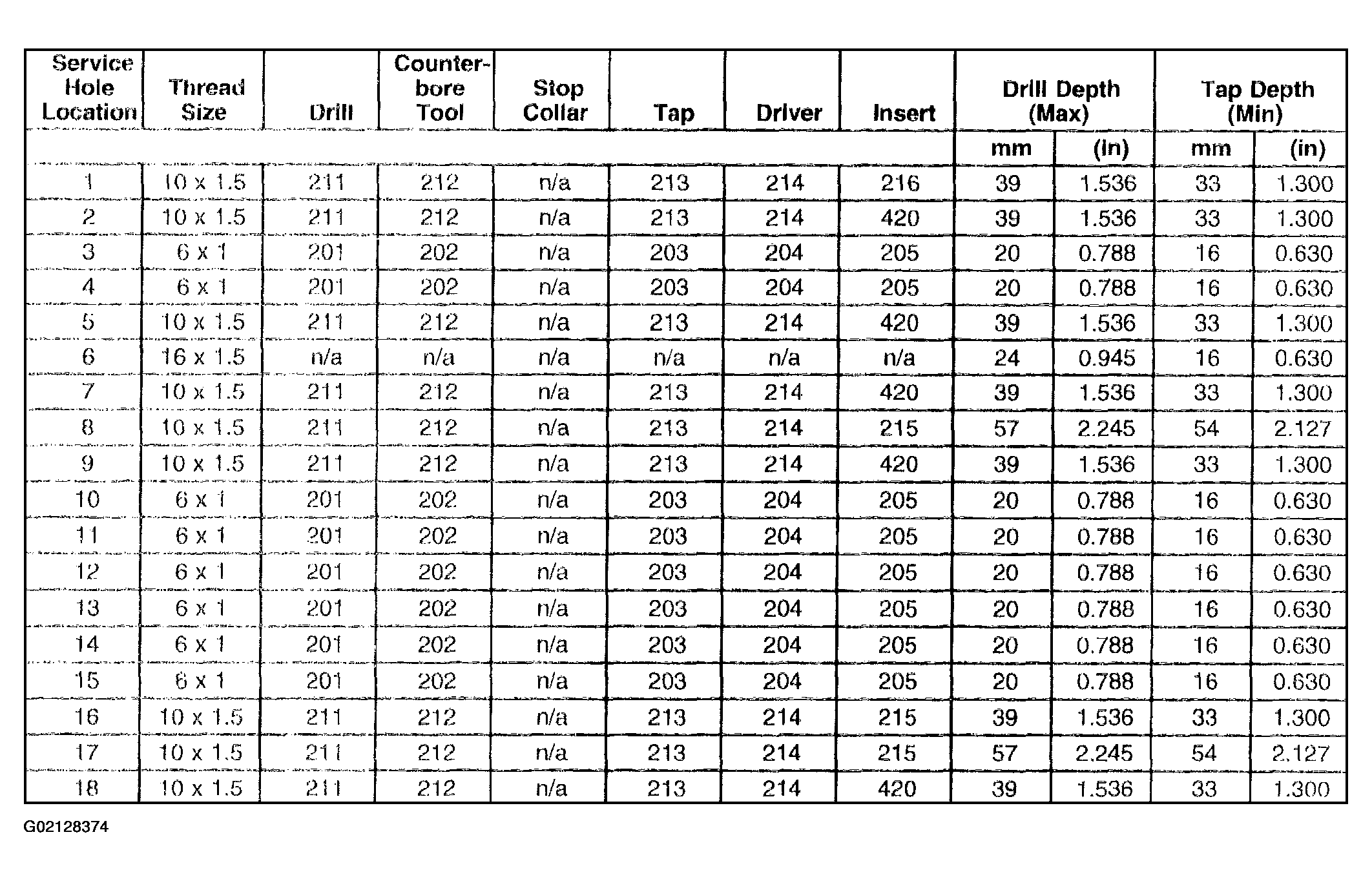

Fig 2: Thread Repair Specifications - Engine Block - Rear View Callouts
G02128374Courtesy of GENERAL MOTORS CORP.
