Engine Block - Top View

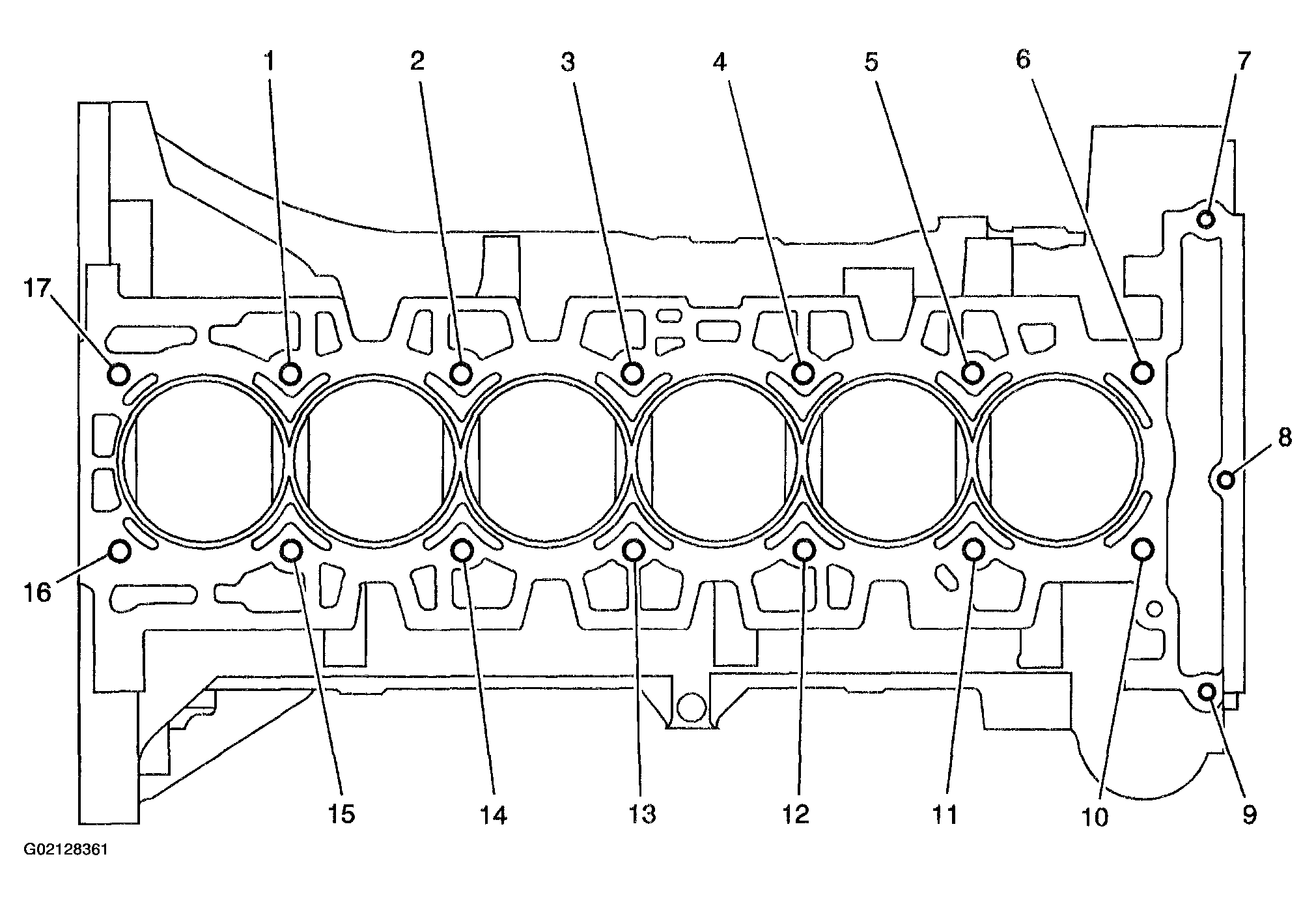

Fig 1: Thread Repair Specifications - Engine Block - Top View
G02128361Courtesy of GENERAL MOTORS CORP.

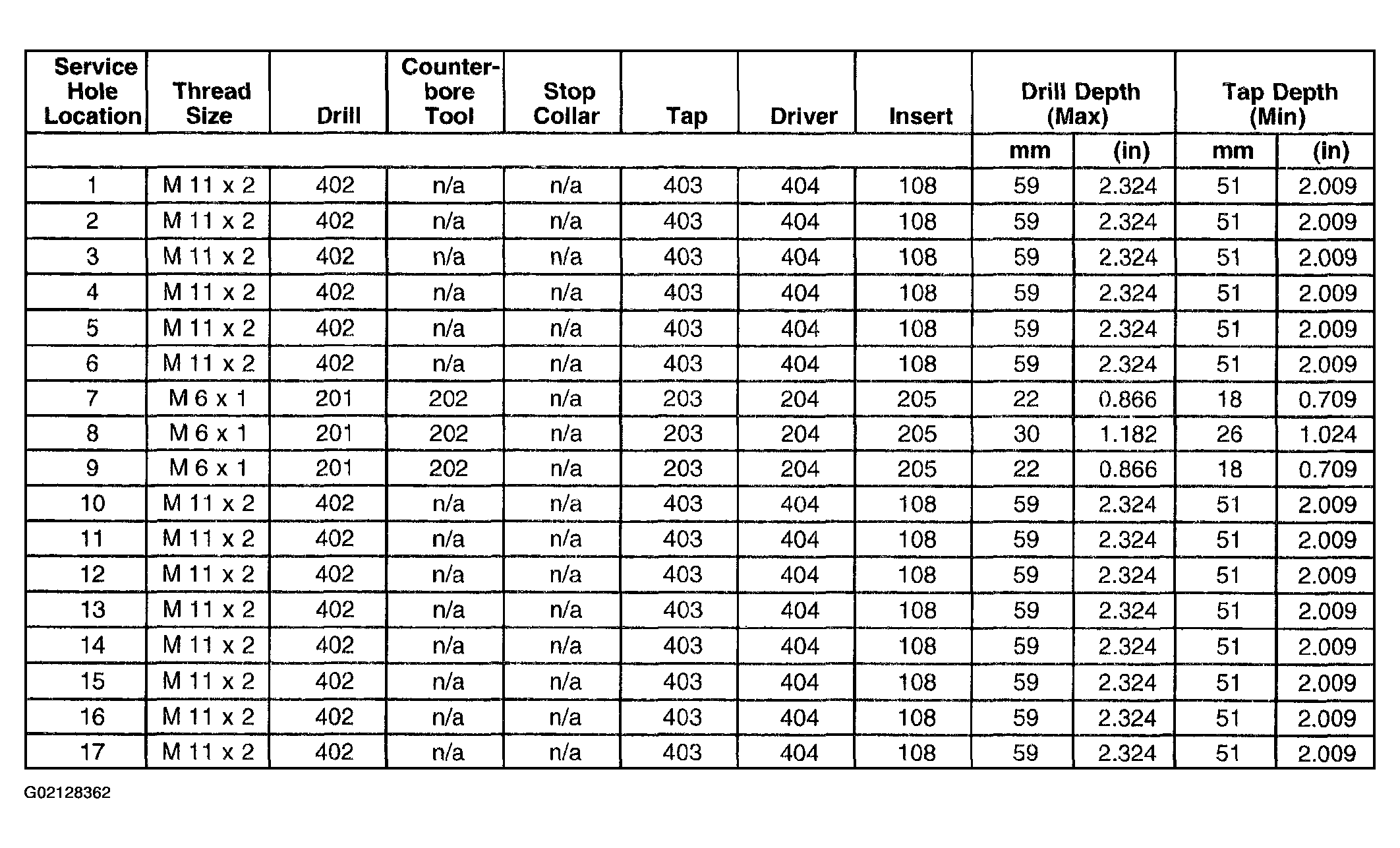

Fig 2: Thread Repair Specifications - Engine Block - Top View Callouts
G02128362Courtesy of GENERAL MOTORS CORP.
