Oil Pan - Left Side View

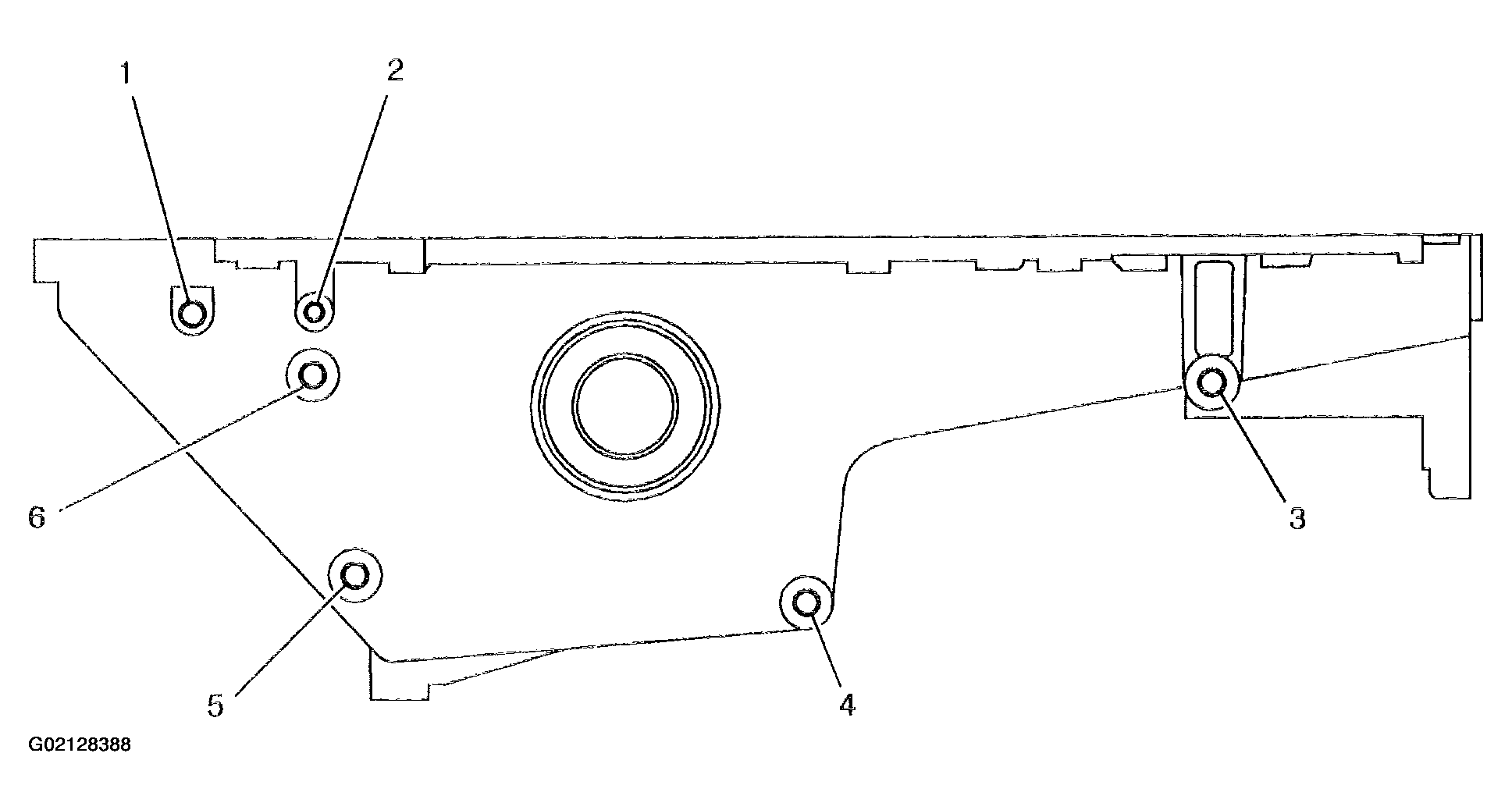

Fig 1: Thread Repair Specifications - Oil Pan - Left Side View
G02128388Courtesy of GENERAL MOTORS CORP.

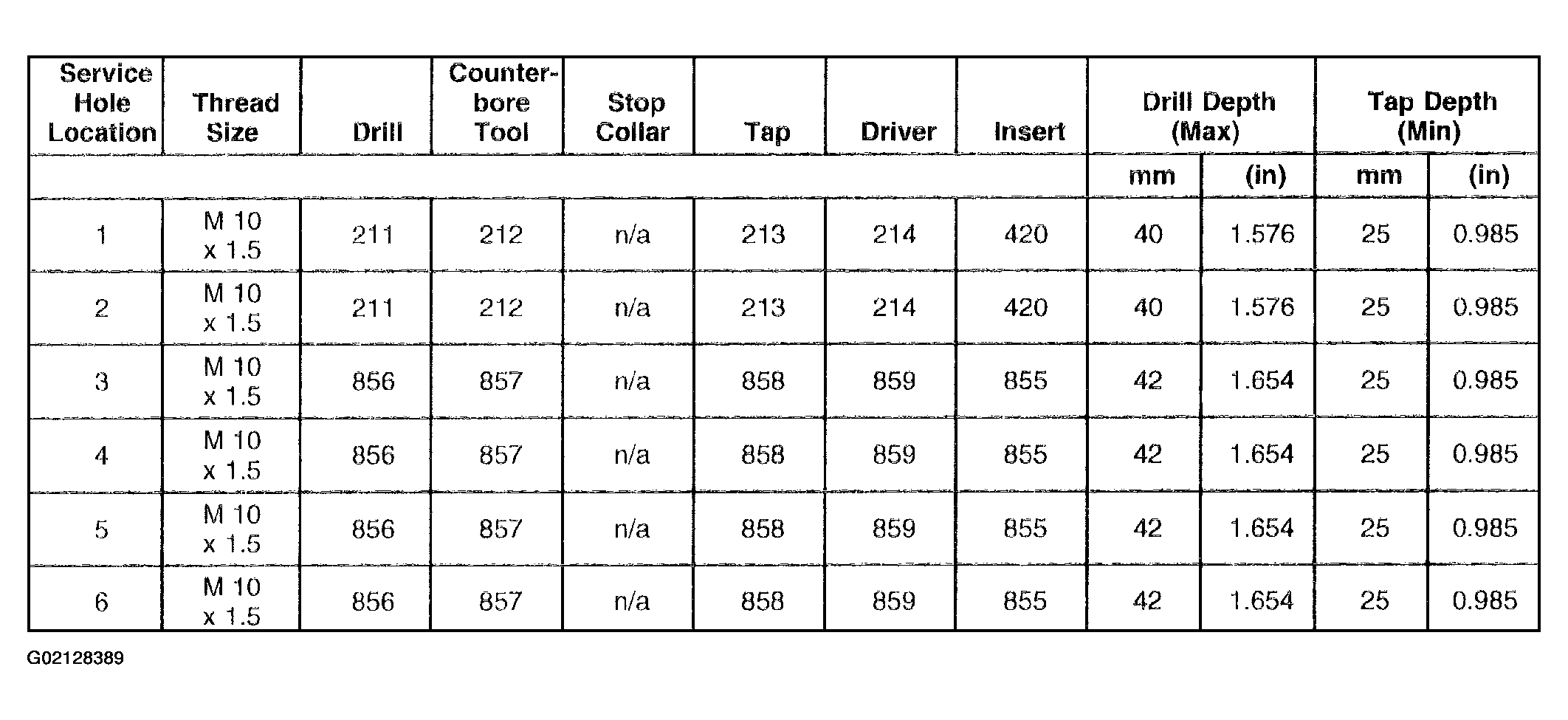

Fig 2: Thread Repair Specifications - Oil Pan - Left Side View Callouts
G02128389Courtesy of GENERAL MOTORS CORP.
