Oil Pan - Rear View

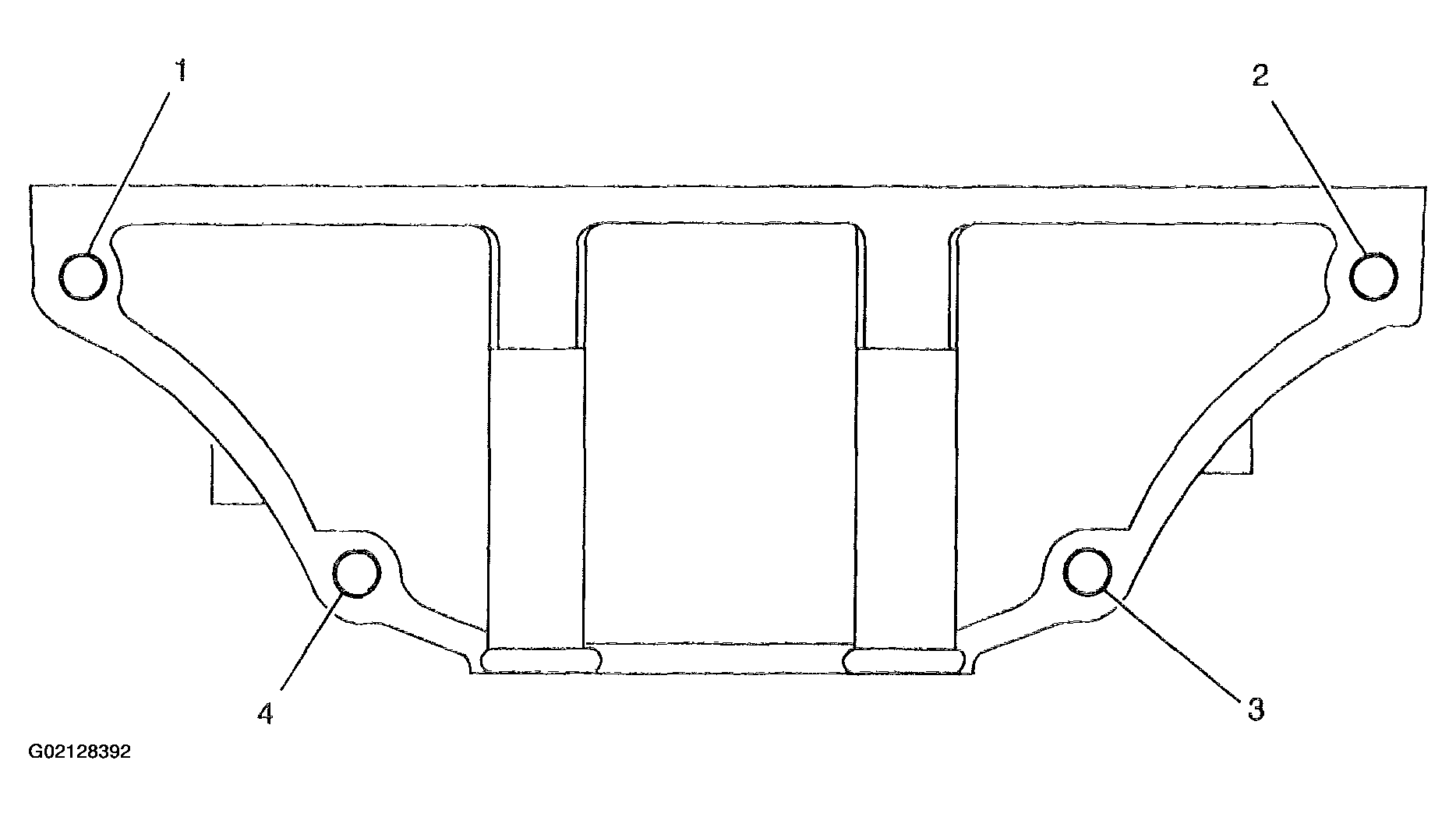

Fig 1: Thread Repair Specifications - Oil Pan - Rear View
G02128392Courtesy of GENERAL MOTORS CORP.

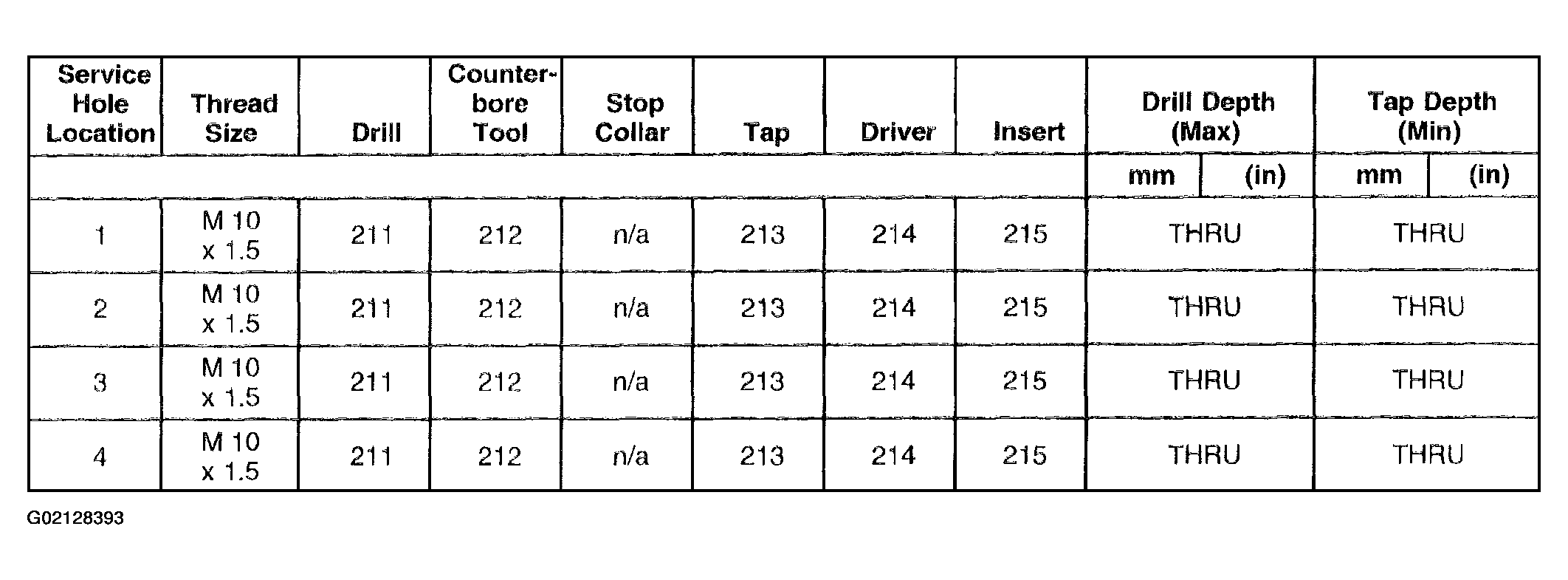

Fig 2: Thread Repair Specifications - Oil Pan - Rear View Callouts
G02128393Courtesy of GENERAL MOTORS CORP.
