Oil Pan - Top View

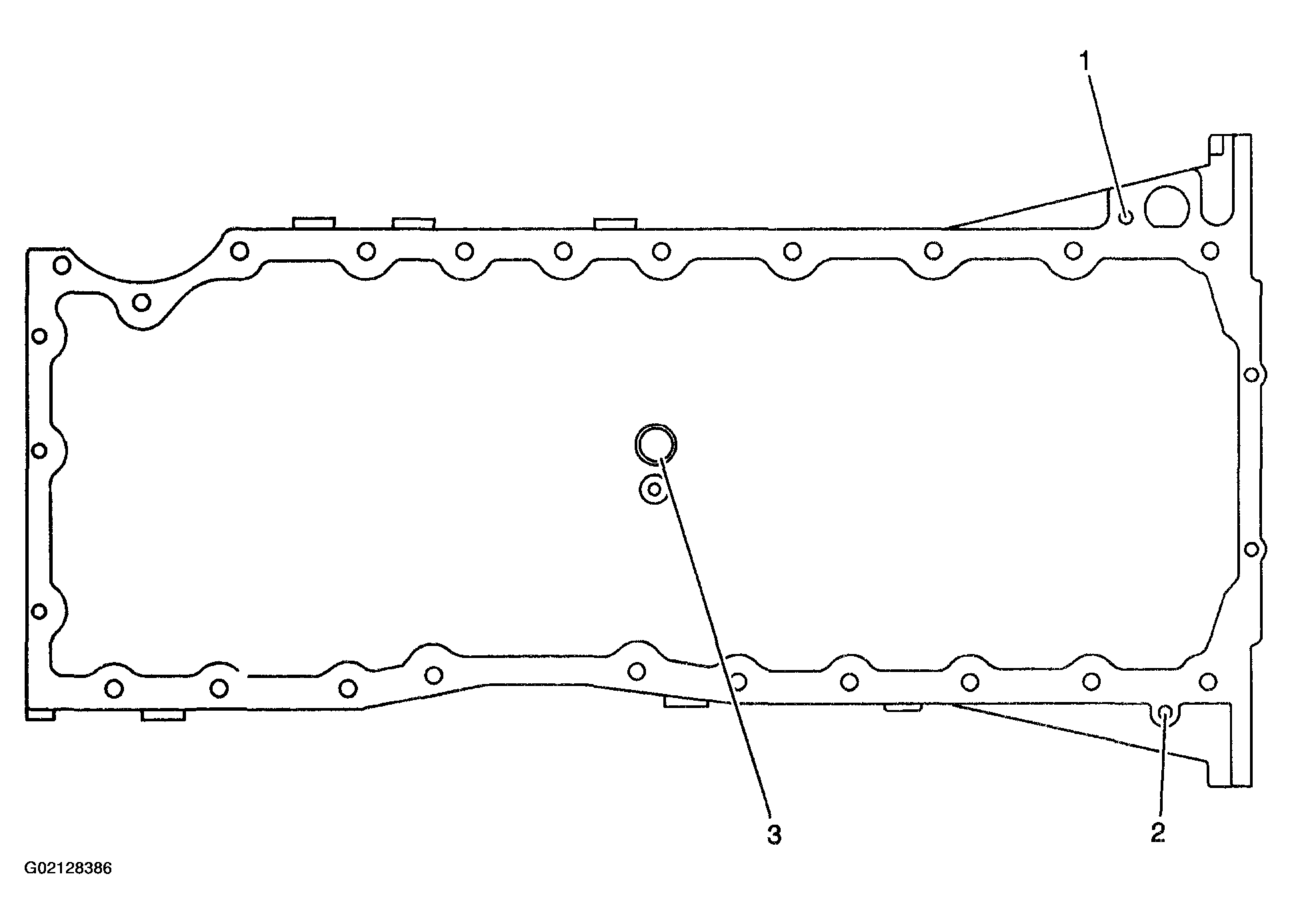

Fig 1: Thread Repair Specifications - Oil Pan - Top View
G02128386Courtesy of GENERAL MOTORS CORP.

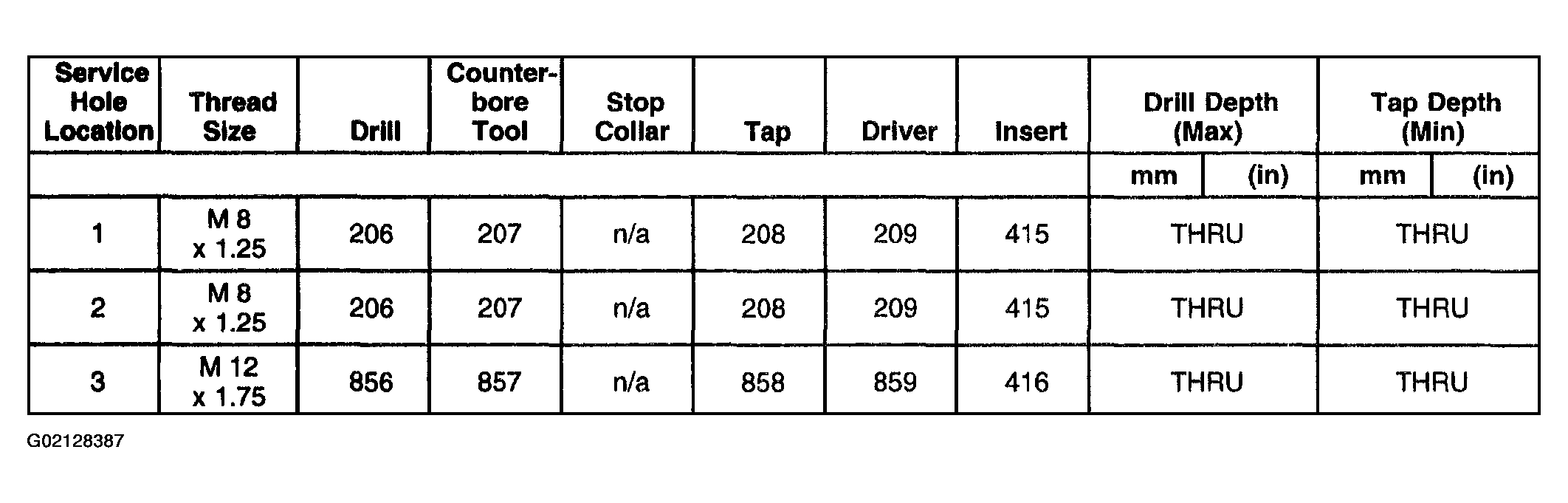

Fig 2: Thread Repair Specifications - Oil Pan - Top View Callouts
G02128387Courtesy of GENERAL MOTORS CORP.
