Connector End View
›
Air Temperature Sensor Assembly Connector End View - Inside
Air Temperature Sensor Assembly Connector End View - Inside

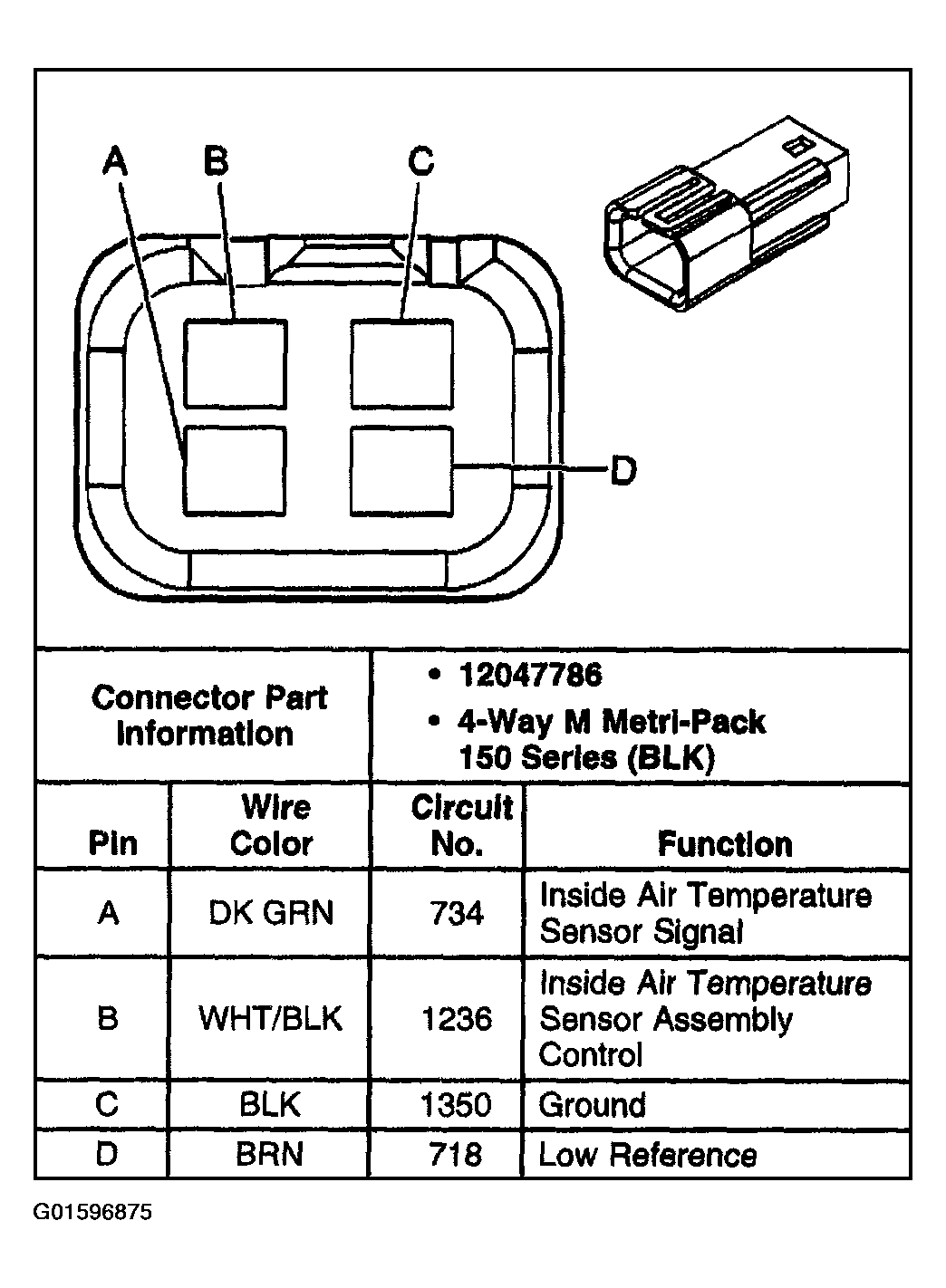

Fig 1: Air Temperature Sensor Assembly Connector End View - Inside
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
