Driver Door Module (DDM) Connector End View C1

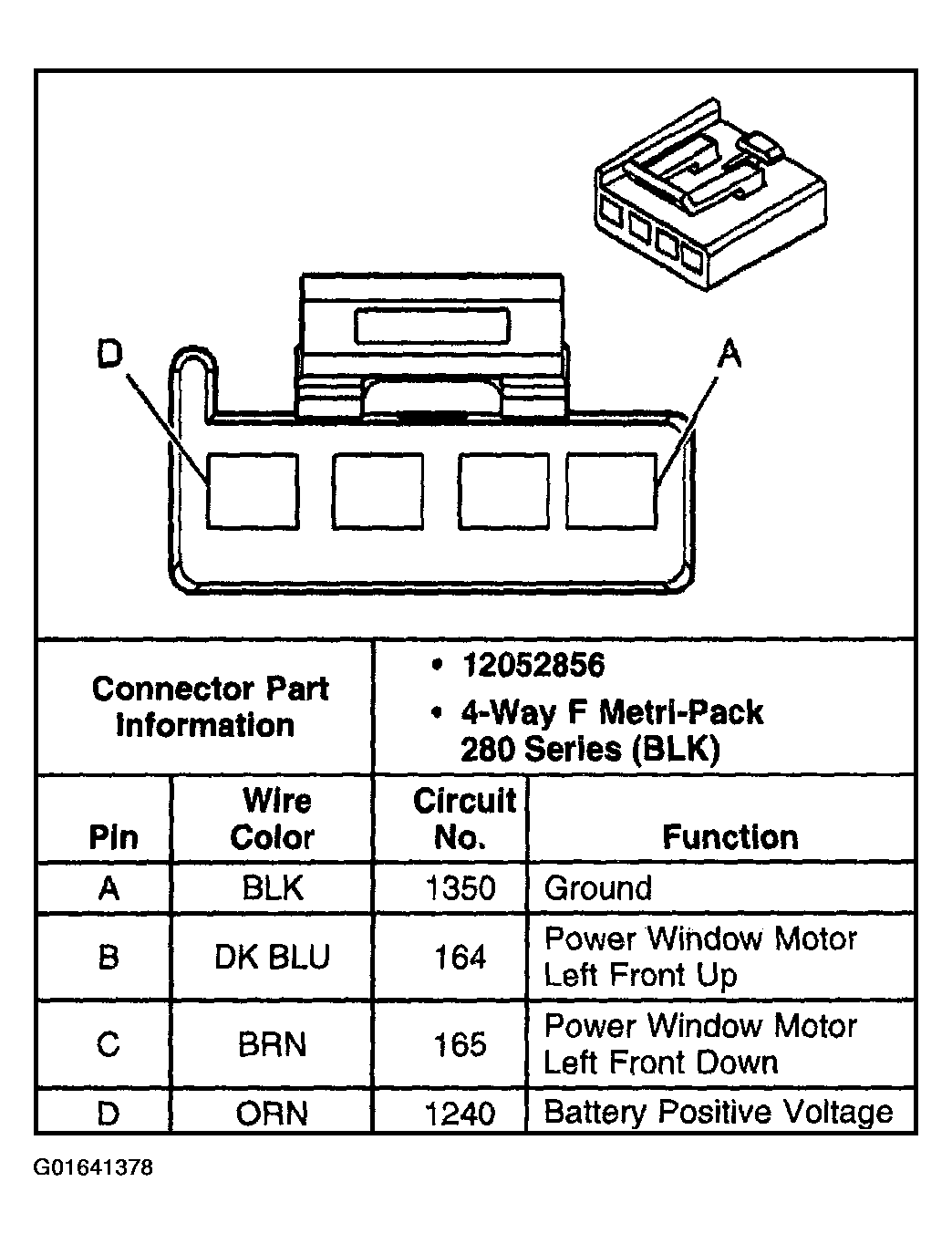

Fig 1: Driver Door Module (DDM) Connector End View C1
G01641378Courtesy of GENERAL MOTORS CORP.
