Front Passenger Door Module (FPDM) Connector End View C2

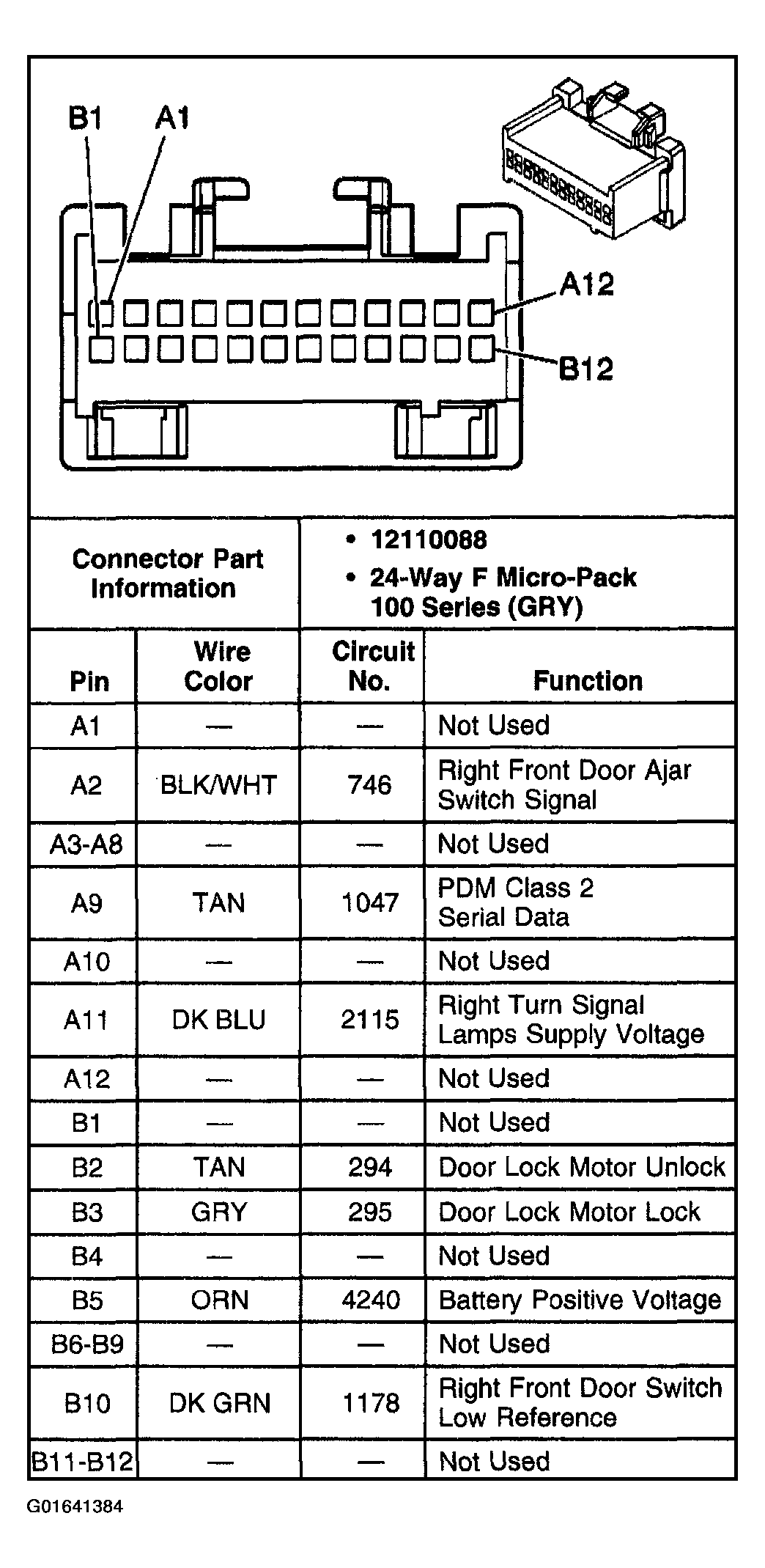

Fig 1: Front Passenger Door Module (FPDM) Connector End View C2
G01641384Courtesy of GENERAL MOTORS CORP.
