Connector End View
›
LR Window Motor Connector End View
LR Window Motor Connector End View

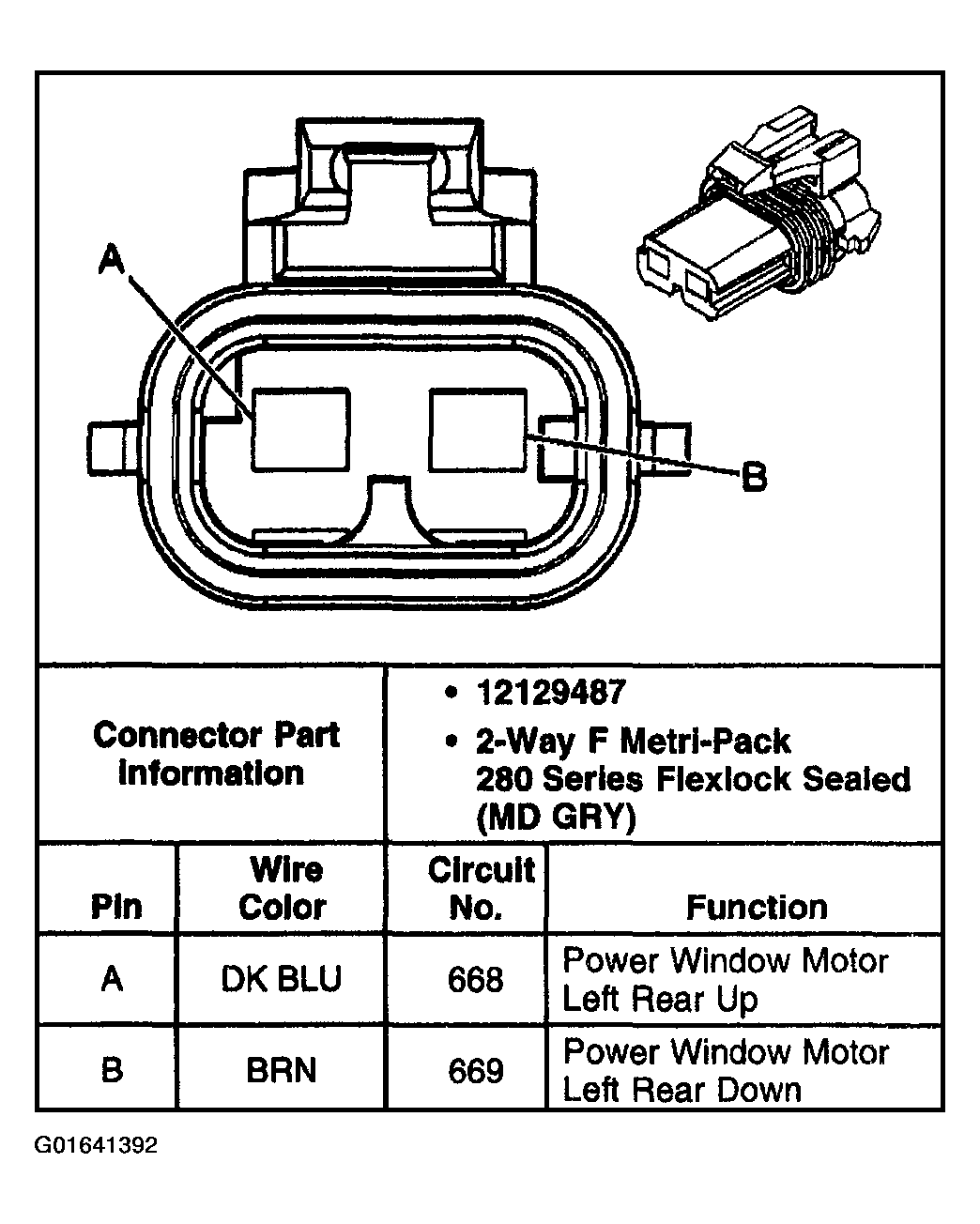

Fig 1: LR Window Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
