Liftgate Module (LGM) Connector End View - C3

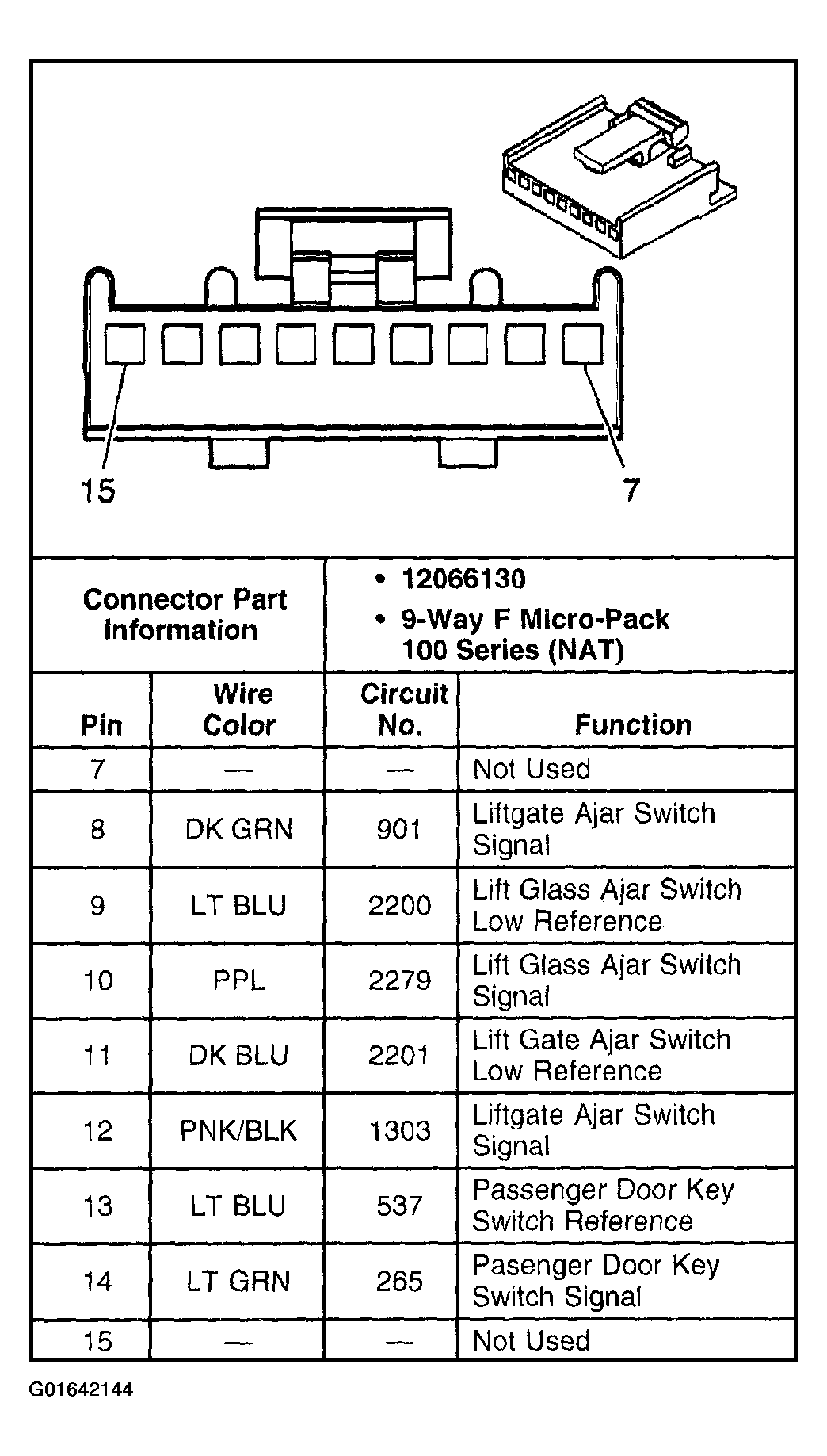

Fig 1: Liftgate Module (LGM) Connector End View - C3
G01642144Courtesy of GENERAL MOTORS CORP.
