Memory Seat Module Connector End View - Passenger C1

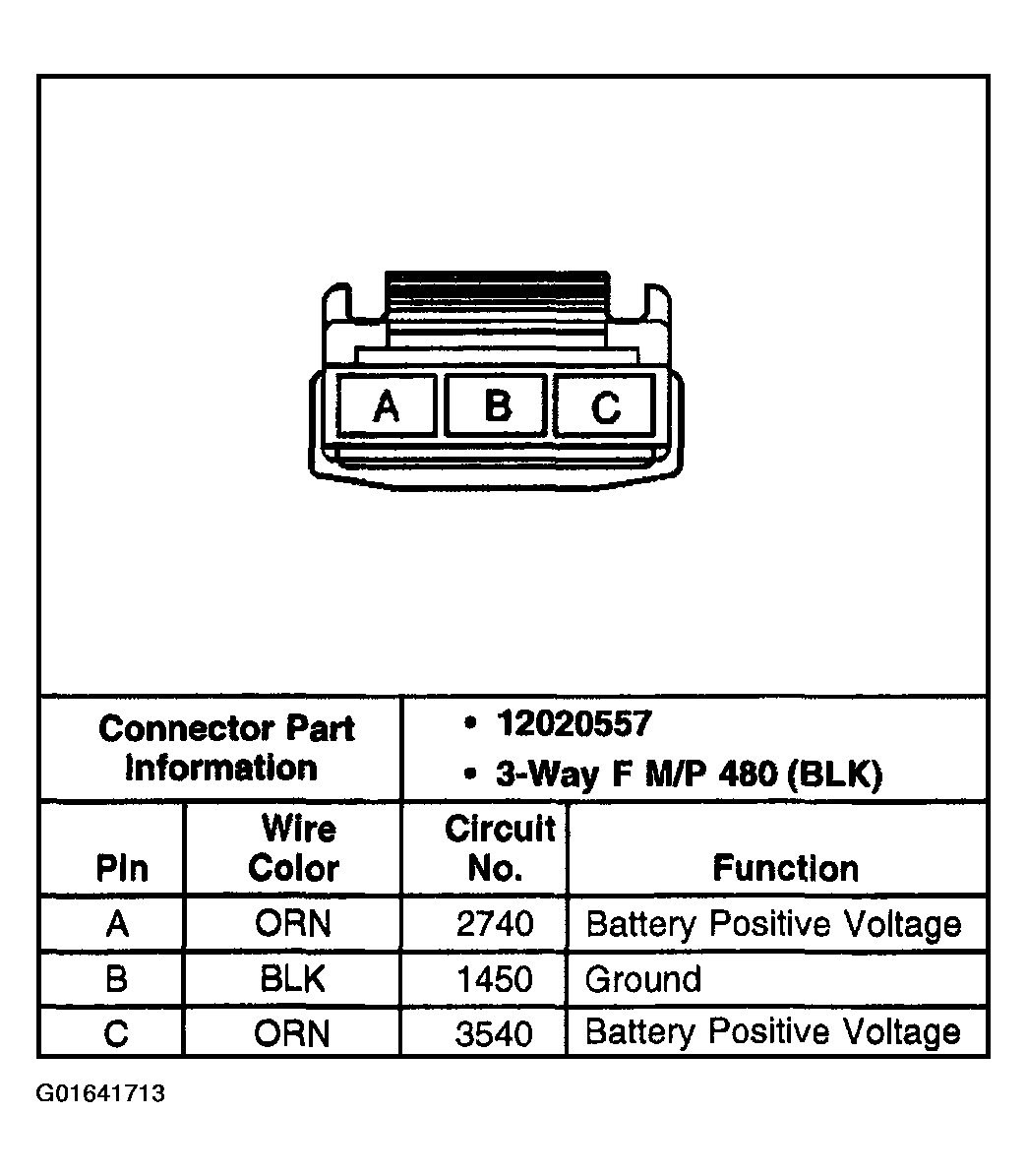

Fig 1: Memory Seat Module Connector End View - Passenger C1
G01641713Courtesy of GENERAL MOTORS CORP.
