Memory Seat Module Connector End View - Passenger C3

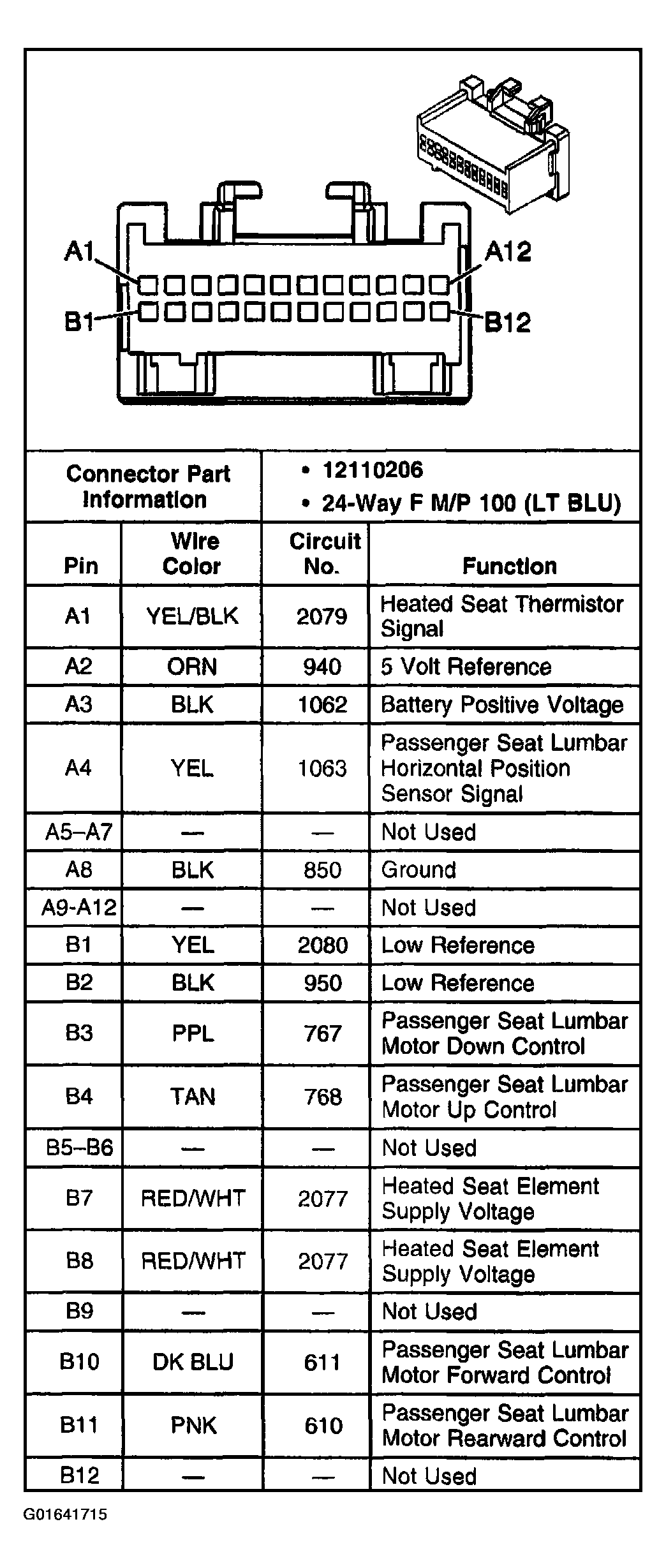

Fig 1: Memory Seat Module Connector End View - Passenger C3
G01641715Courtesy of GENERAL MOTORS CORP.
