Memory Seat Module Connector End View - Passenger C4

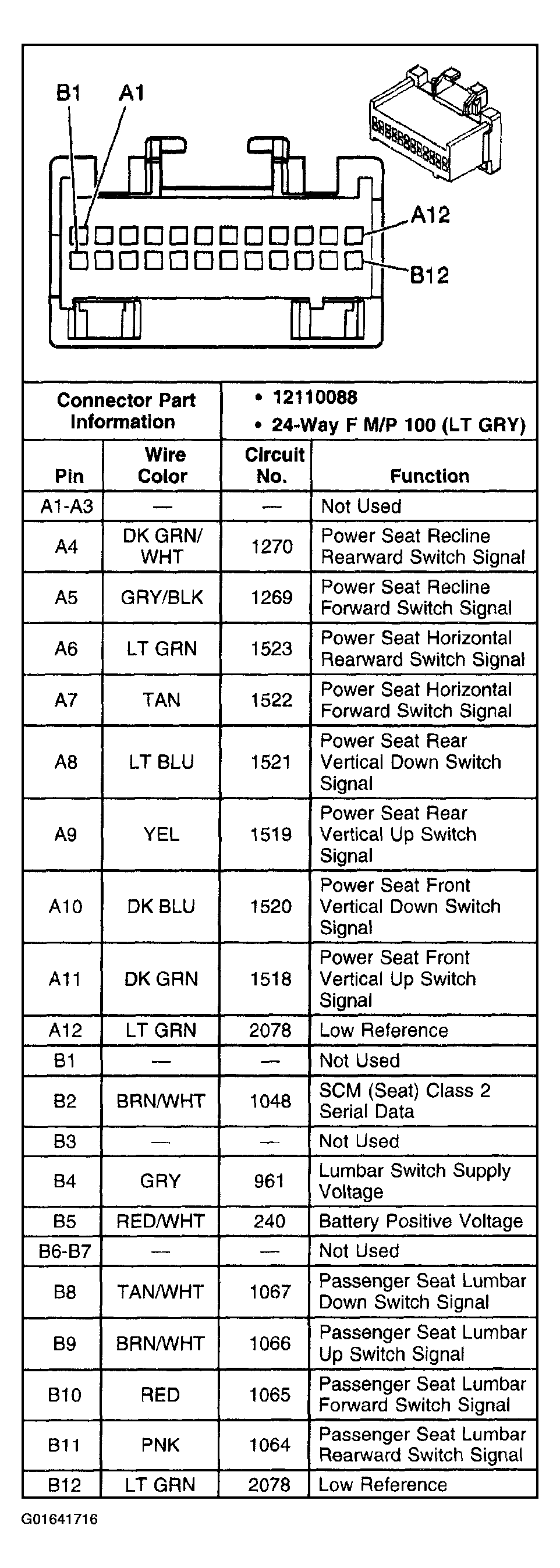

Fig 1: Memory Seat Module Connector End View - Passenger C4
G01641716Courtesy of GENERAL MOTORS CORP.
