Mirror Switch, Driver Door Module (DDM) Connector End View C5
Mirror Switch, Driver Door Module (DDM) Connector End View C5

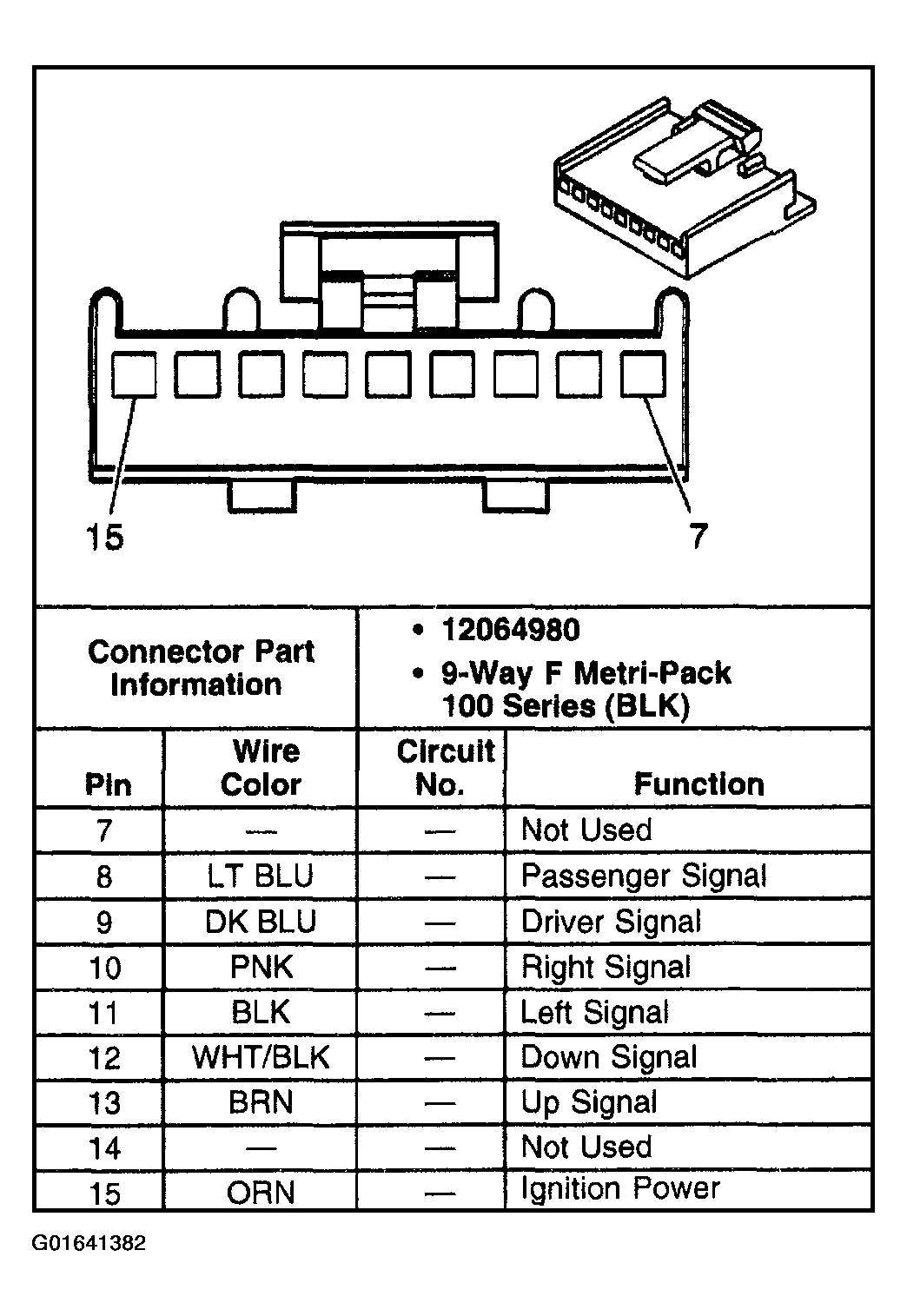

Fig 1: Mirror Switch, Driver Door Module (DDM) Connector End View C5
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
