Mode Actuator Connector End View

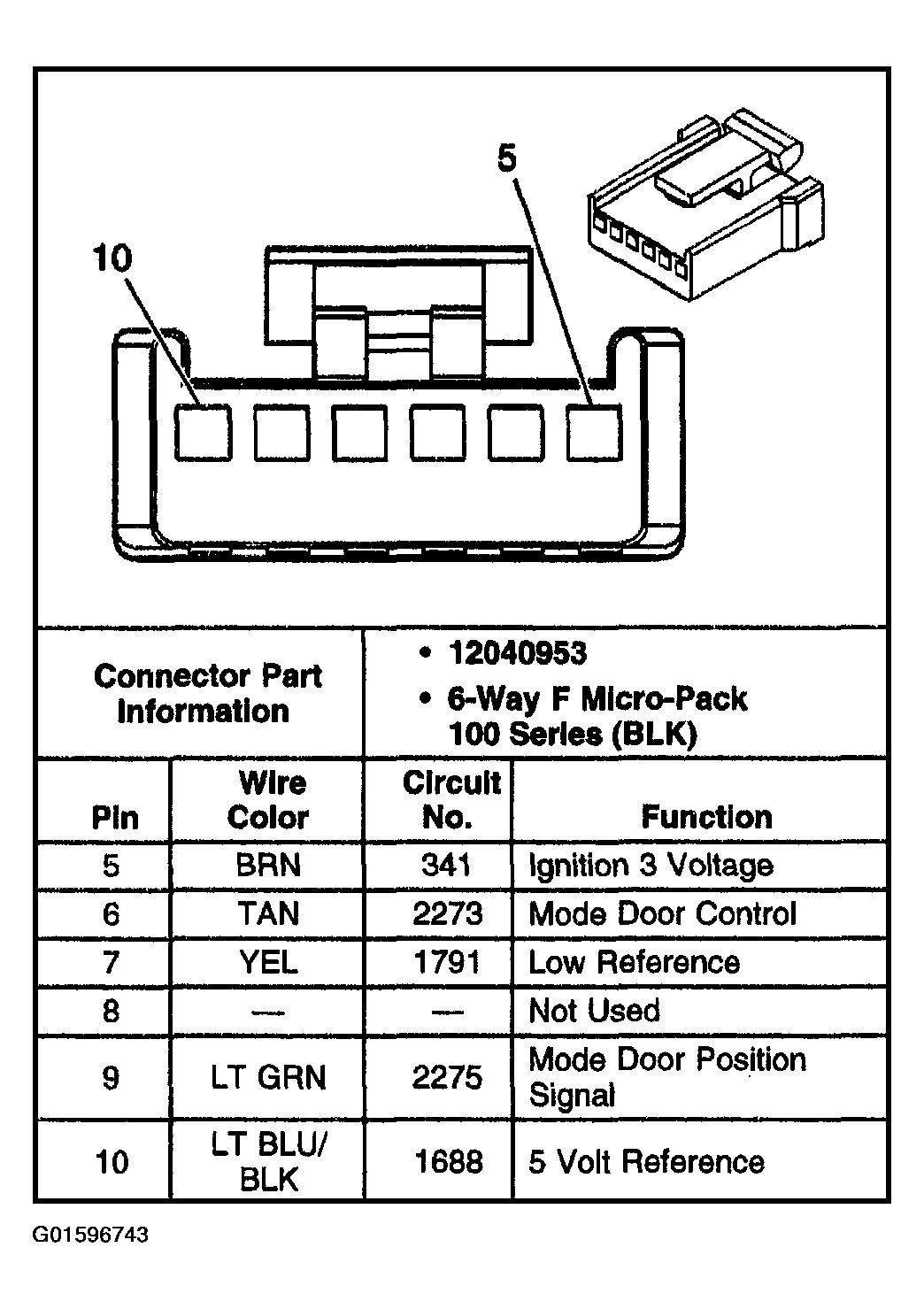

Fig 1: Mode Actuator Connector End View
G01596743Courtesy of GENERAL MOTORS CORP.

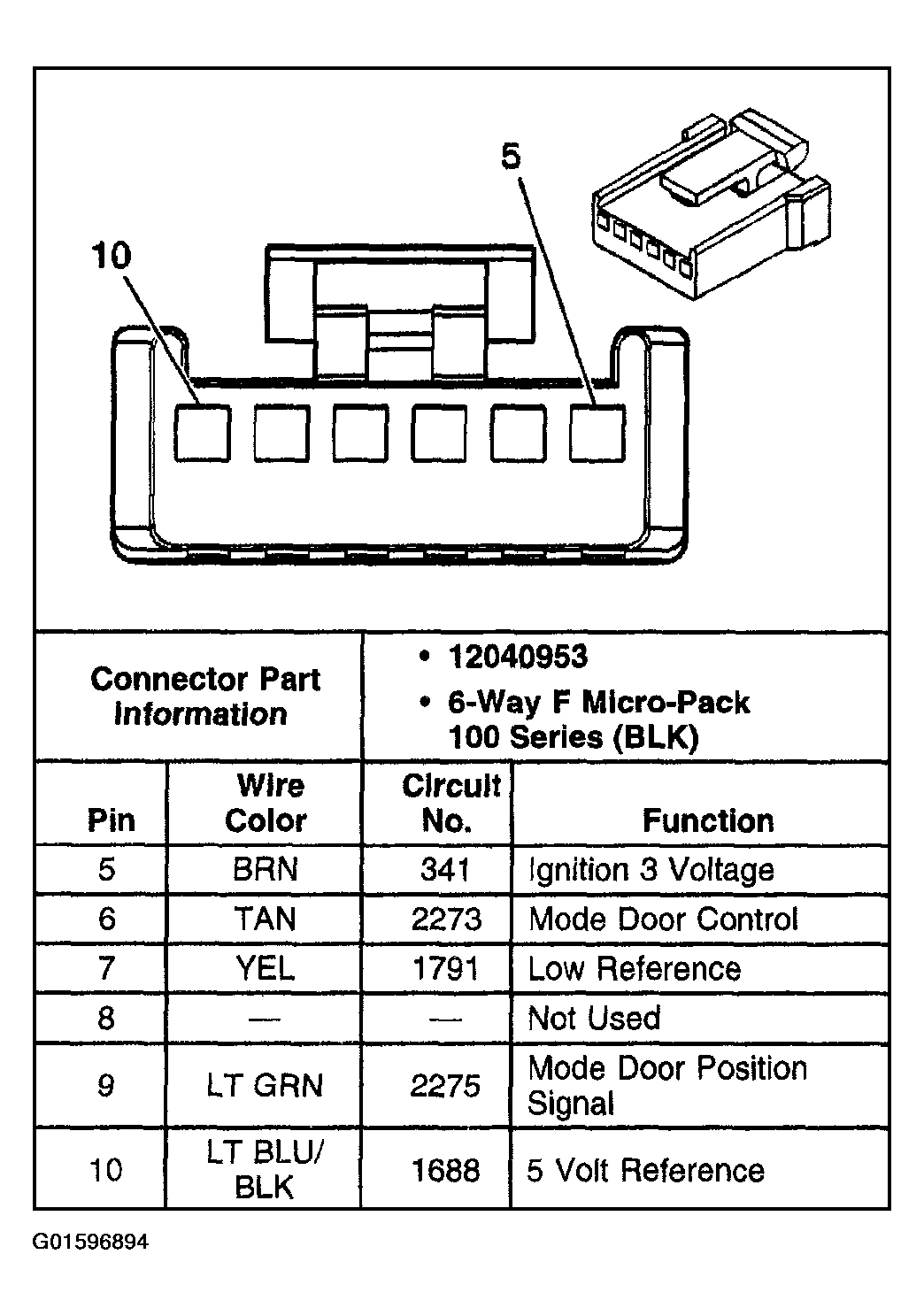

Fig 1: Mode Actuator Connector End View
G01596894Courtesy of GENERAL MOTORS CORP.
