Connector End View
›
Sunroof Motor Connector End View
Sunroof Motor Connector End View

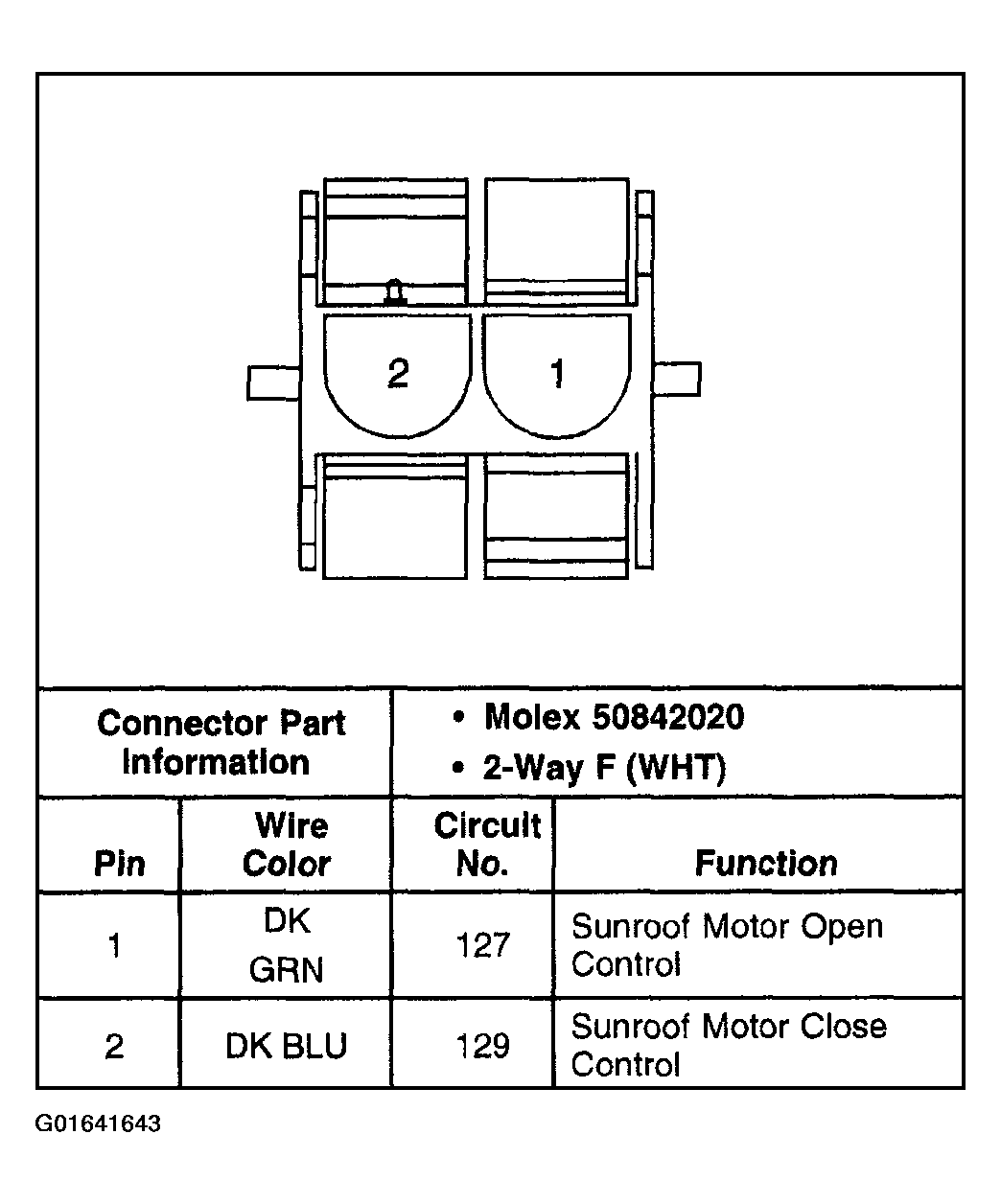

Fig 1: Sunroof Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
