Installation Procedure

  1. Install the seat belt buckle to the seat assembly.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the nut (1) which retains the seat belt buckle to the seat assembly.

    Tighten

    Tighten the front seat belt buckle nut to 52 N.m (38 lb ft).

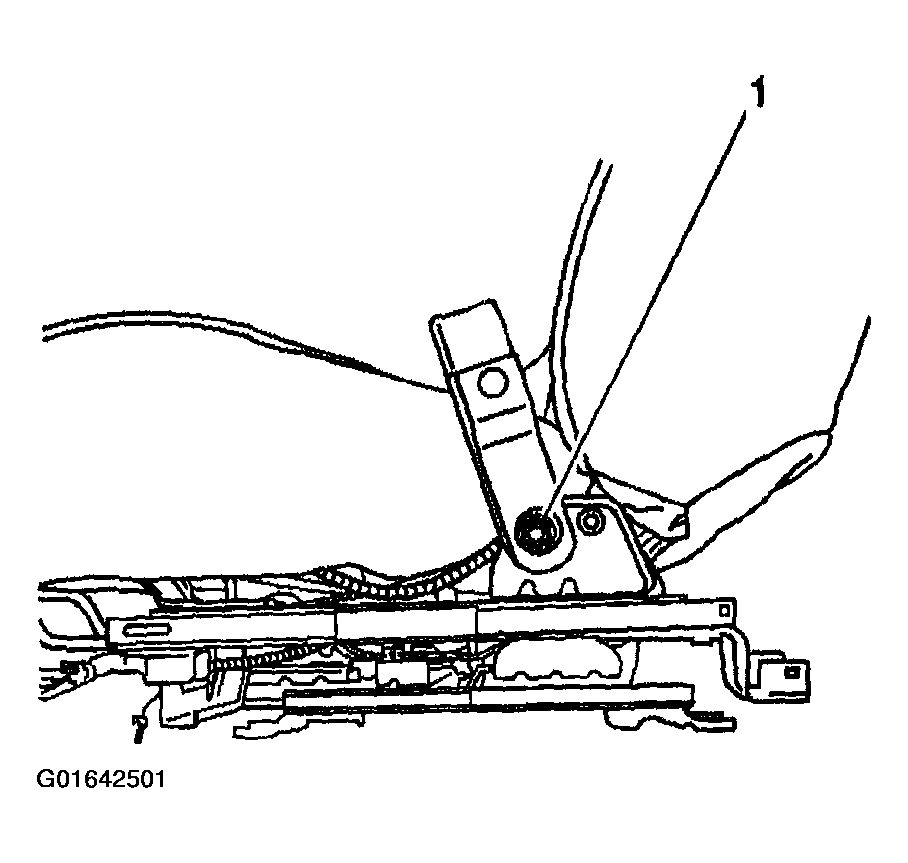

    3. Fig 1: Nut Retaining Seat Belt Buckle To Seat Assembly
    G01642501Courtesy of GENERAL MOTORS CORP.
  3. Connect the seat belt reminder wiring harness (3) on the driver's seat.

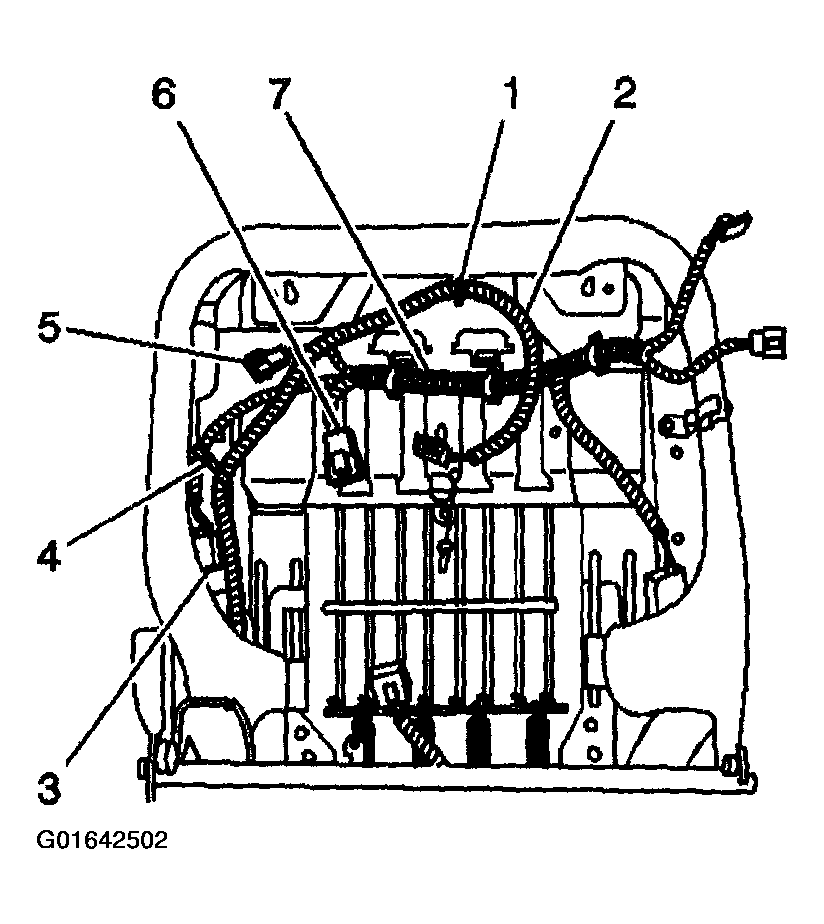

    4. Fig 2: Seat Belt Reminder Wiring Harness On Driver's Seat
    G01642502Courtesy of GENERAL MOTORS CORP.
  4. Install the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
