Installation Procedure

  1. Position the seat belt retractor bracket on the seat back frame.

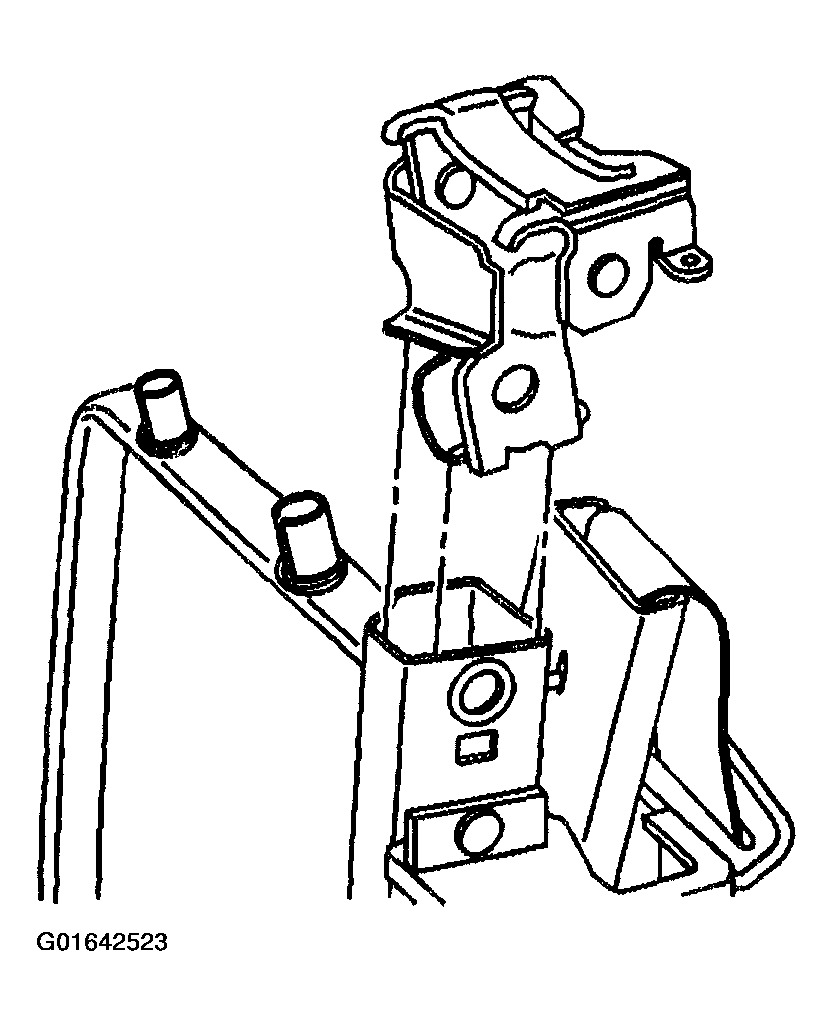

    Fig 1: Seat Belt Retractor Bracket On Seat Back Frame
    G01642523Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the seat belt retractor bracket bolt (1) to the bracket and seat back frame.

    Tighten

    Tighten the seat belt retractor bracket bolt to 55 N.m (40 lb ft).

  3. Position the seat belt retractor assembly onto the seat back frame.

    Install the push pin (2) on the seat back retractor to the seat back frame.

  4. Install the lower seat belt retractor bolt.

    Tighten

    Tighten the lower seat belt retractor bolt to 55 N.m (40 lb ft).

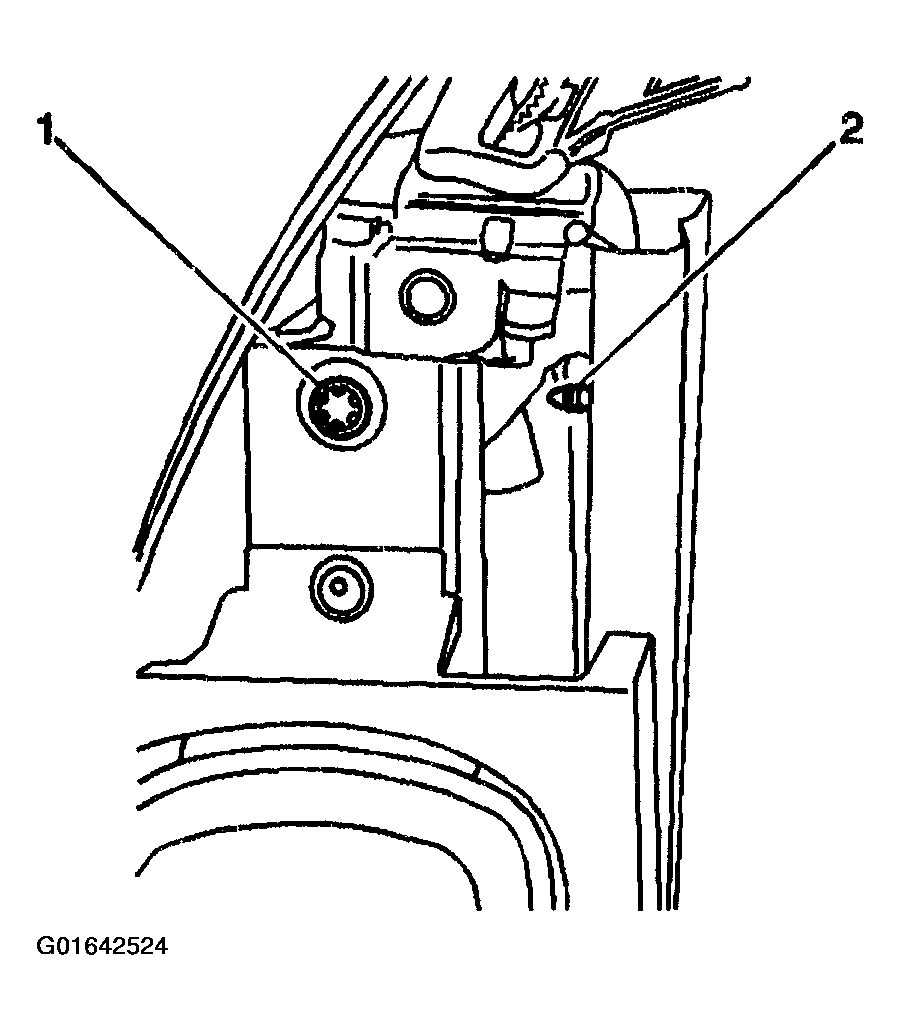

    5. Fig 2: Seat Belt Retractor Bracket Bolt To Bracket And Seat Back Frame
    G01642524Courtesy of GENERAL MOTORS CORP.
  5. Install the seat belt into the retractor bracket by guiding the seat belt through the slot in the bracket.
    6. Fig 3: Seat Belt Into Retractor Bracket By Guiding Seat Belt Through Slot In Bracket
    G01642525Courtesy of GENERAL MOTORS CORP.
  6. Install the seat back panel to the seat back frame.

    Refer to SEAT BACK PANEL REPLACEMENT - FRONT in Seats.

  7. Install the seat back pad and cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT in Seats.
  8. Slide the front seat back seat belt bezel onto the seat belt.
  9. Install the seat belt bezel to the retractor bracket with the screw.

    Tighten

    Tighten the front seat back seat belt bezel screw to 6 N.m (53 lb in).

    10. Fig 4: Seat Belt Bezel To Retractor Bracket With Screw
    G01642526Courtesy of GENERAL MOTORS CORP.
  10. Install the seat belt anchor to the seat adjuster assembly with the nut. Ensure that the seat belt webbing is not twisted.

    Tighten

    Tighten the seat back anchor nut to 52 N.m (38 lb ft).

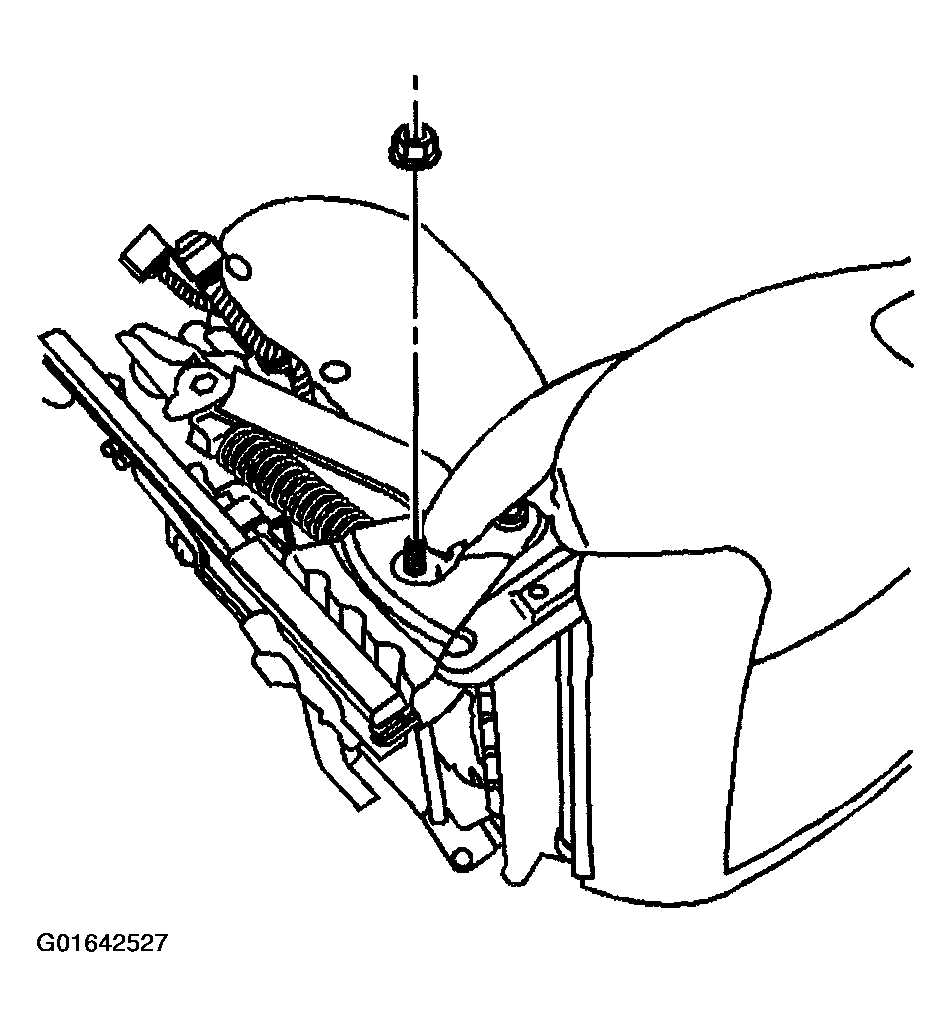

    11. Fig 5: Seat Belt Anchor To Seat Adjuster Assembly With Nut
    G01642527Courtesy of GENERAL MOTORS CORP.
  11. Install the seat trim panel. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT in Seats.
  12. Install the seat switch bezel. Refer to SEAT SWITCH BEZEL REPLACEMENT in Seats.
