Power Steering Gear Disassembled View
›
Power Steering Gear Disassembled View
Power Steering Gear Disassembled View

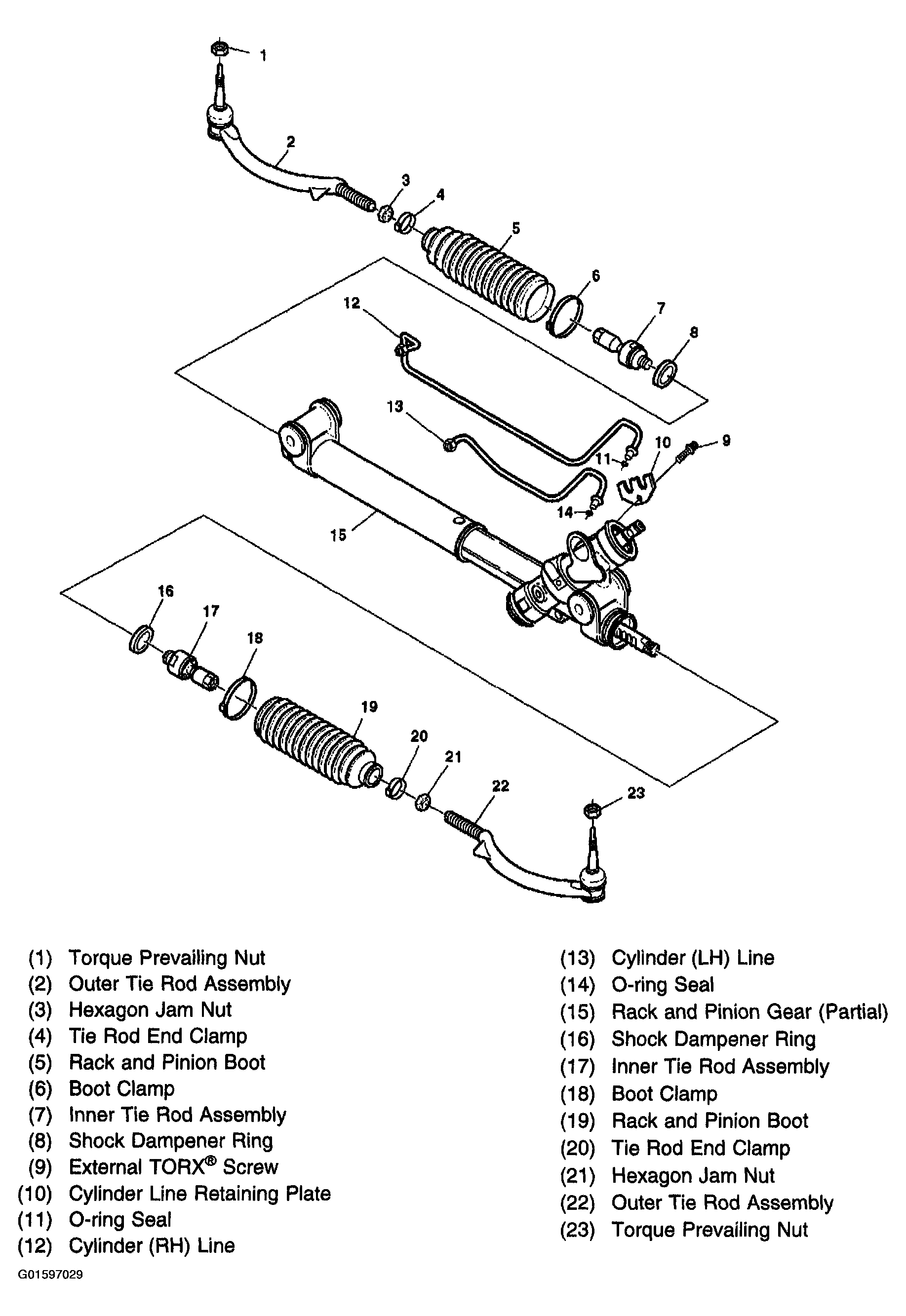

Fig 1: Disassembled View Of Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
