Removal Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install drain pan under vehicle.
  2. Disconnect the power steering pressure (1) and return hose (3) from the power steering pump (2).
  3. Raise and support vehicle with suitable safety stands. Refer to JACKING AND LIFTING  in General Information.

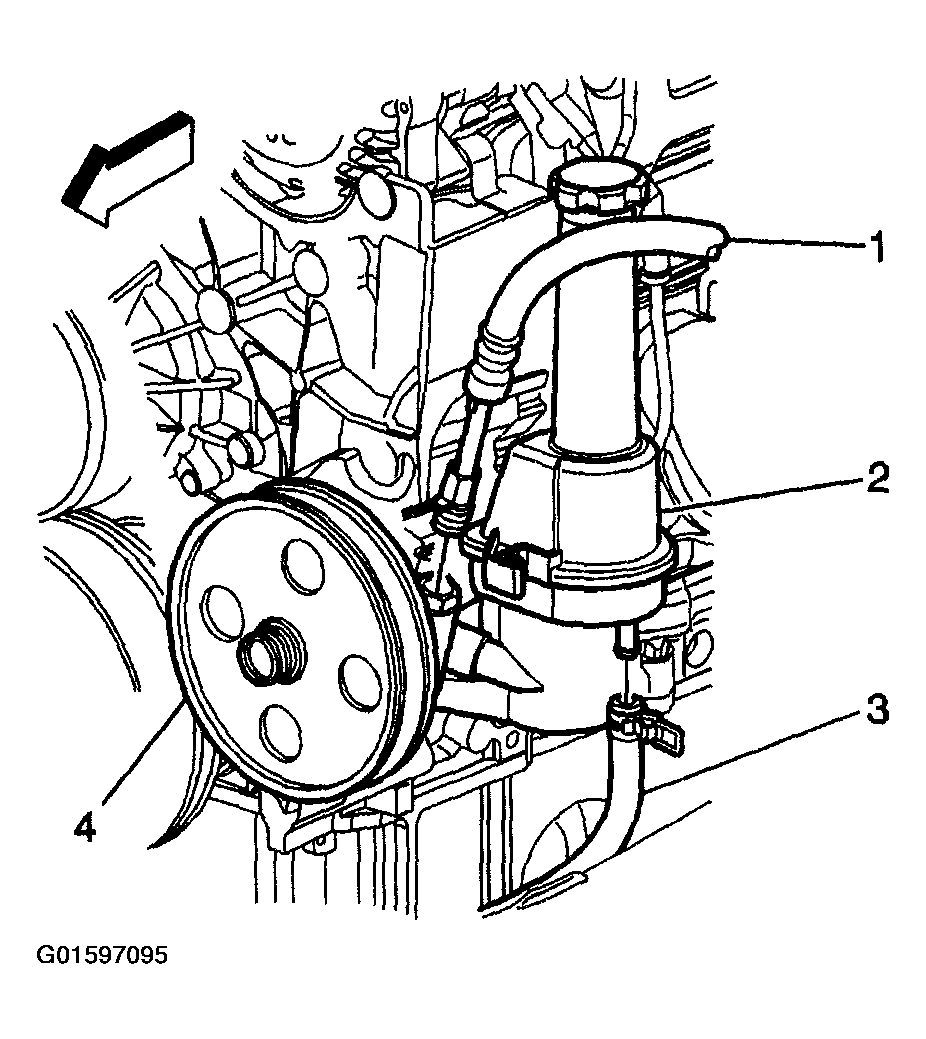

    Fig 1: Disconnecting Power Steering Pressure And Return Hose From Power Steering Pump (5.3L)
    G01597095Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering hose assembly from the power steering cooler.
  5. Lower the vehicle.
  6. Remove the PCM from PCM mounting bracket and position out of the way. Refer to POWERTRAIN CONTROL MODULE  in Engine Controls - 5.3L.

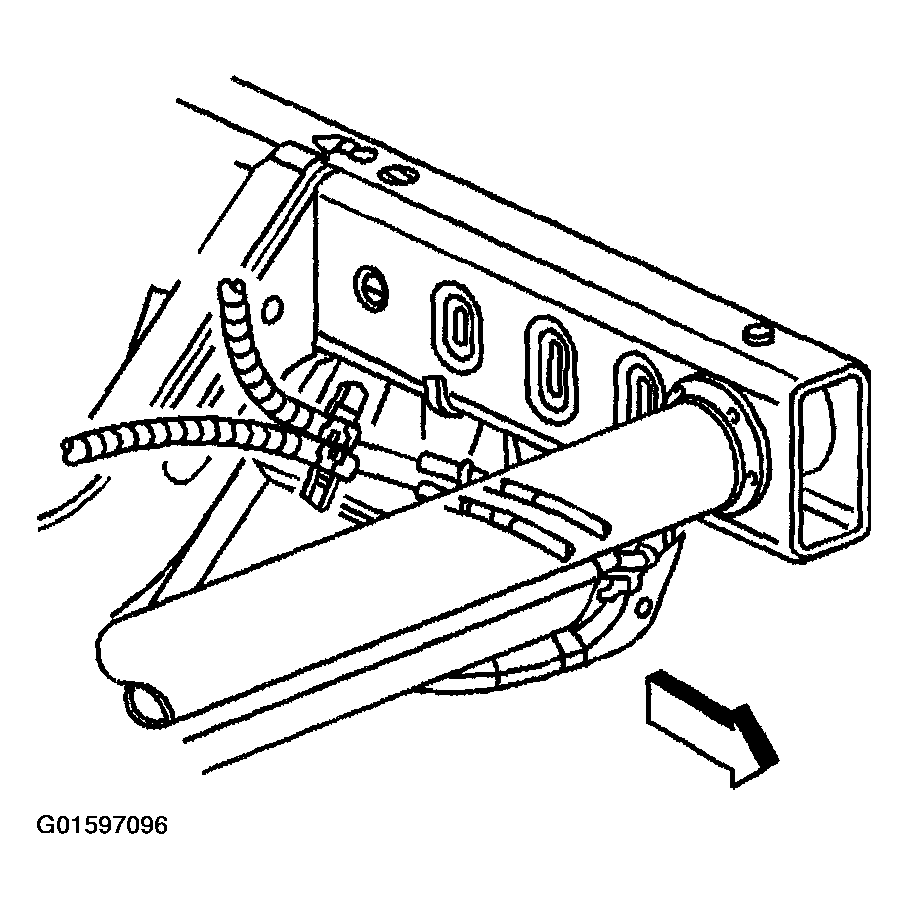

    Fig 2: Disconnecting Power Steering Hose Assembly From Power Steering Cooler (5.3L)
    G01597096Courtesy of GENERAL MOTORS CORP.
  7. Raise the vehicle.
  8. Remove power steering hose assembly (1) to power steering gear mounting bolt (2).
  9. Disconnect the power steering hose assembly from the power steering gear (3).

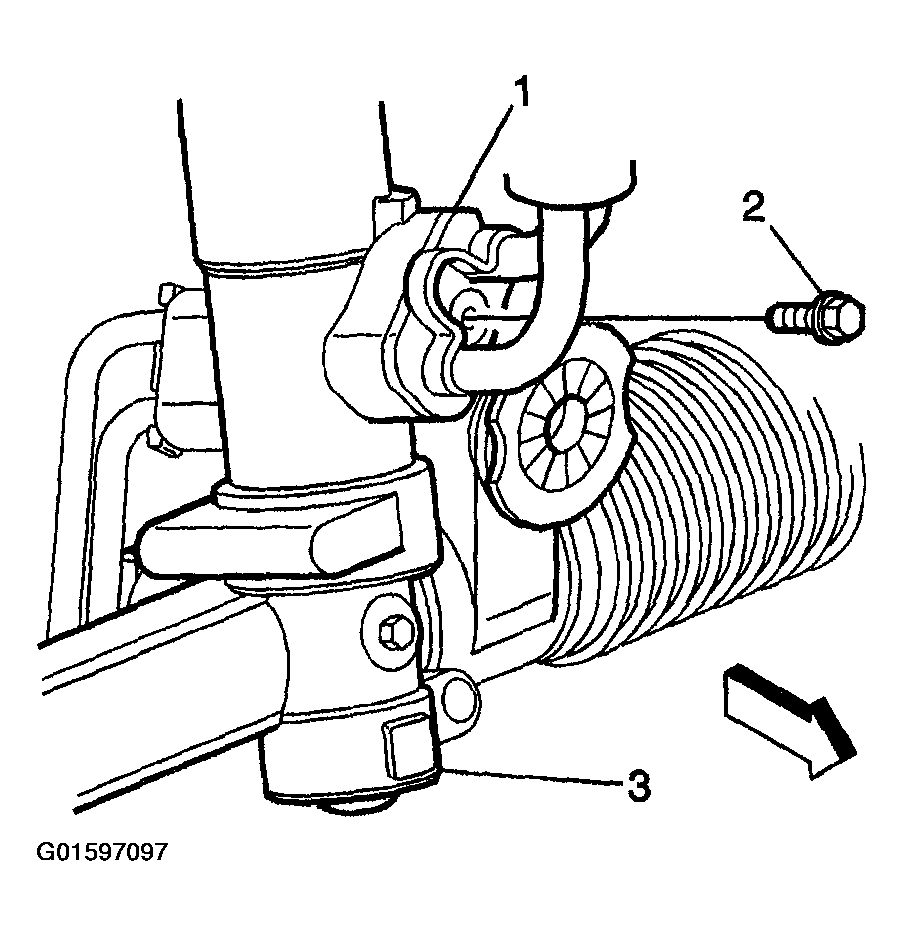

    Fig 3: Removing Power Steering Gear Mounting Bolt (5.3L)
    G01597097Courtesy of GENERAL MOTORS CORP.
  10. Remove the power steering hose assembly (1) front bracket mounting bolt (3).
  11. Disconnect the power steering pressure hose from retaining clip.
  12. Remove the power steering hose assembly rear bracket mounting bolt (2).
  13. Remove the power steering hose assembly from the vehicle.

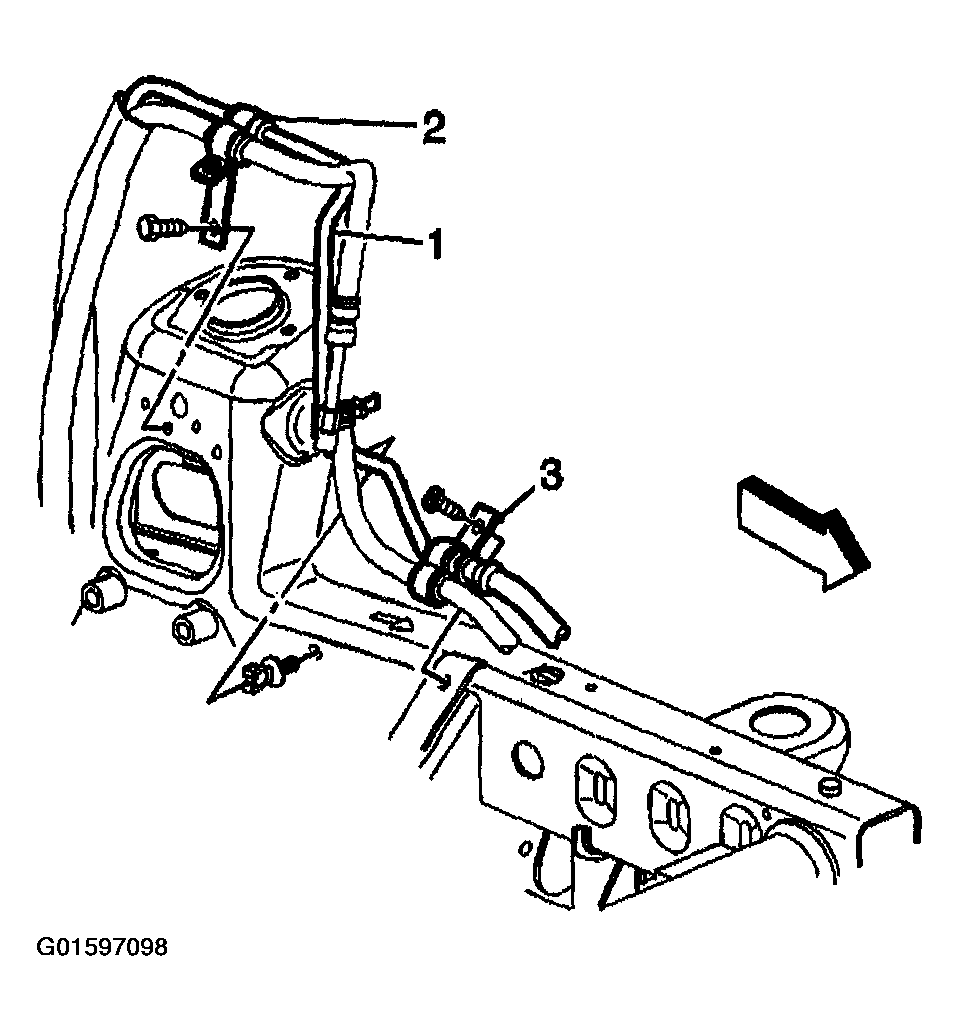

    Fig 4: Removing Power Steering Hose Assembly Front Bracket Mounting Bolt (5.3L)
    G01597098Courtesy of GENERAL MOTORS CORP.
