Installation Procedure

  1. Install the power steering pump bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering pump bracket mounting bolts.

    Tighten

    Tighten the power steering pump mounting bolts to 50 N.m (37 lb ft).

  3. Install the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT  in Engine Mechanical - 4.2L.
  4. Install the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (4.2L)   or POWER STEERING PUMP REPLACEMENT (5.3L)   .

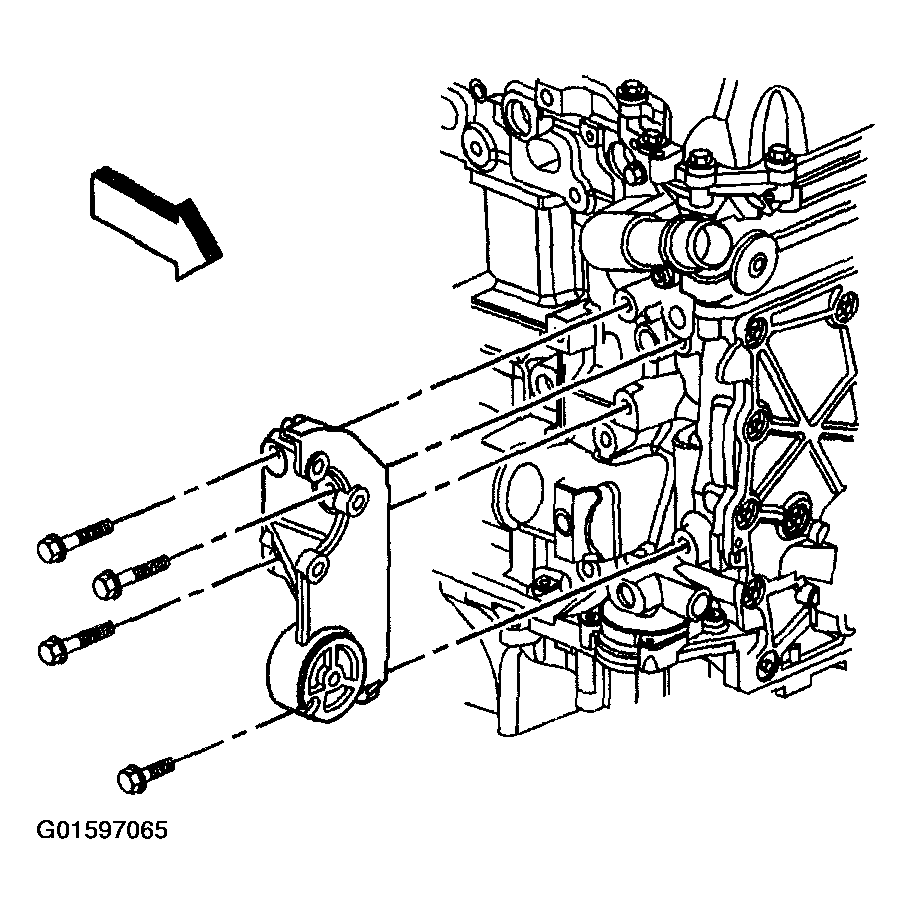

    Fig 1: Installing Power Steering Pump Bracket Mounting Bolts
    G01597065Courtesy of GENERAL MOTORS CORP.
