Driver Door Module Power and Ground
Driver Door Module Power and Ground

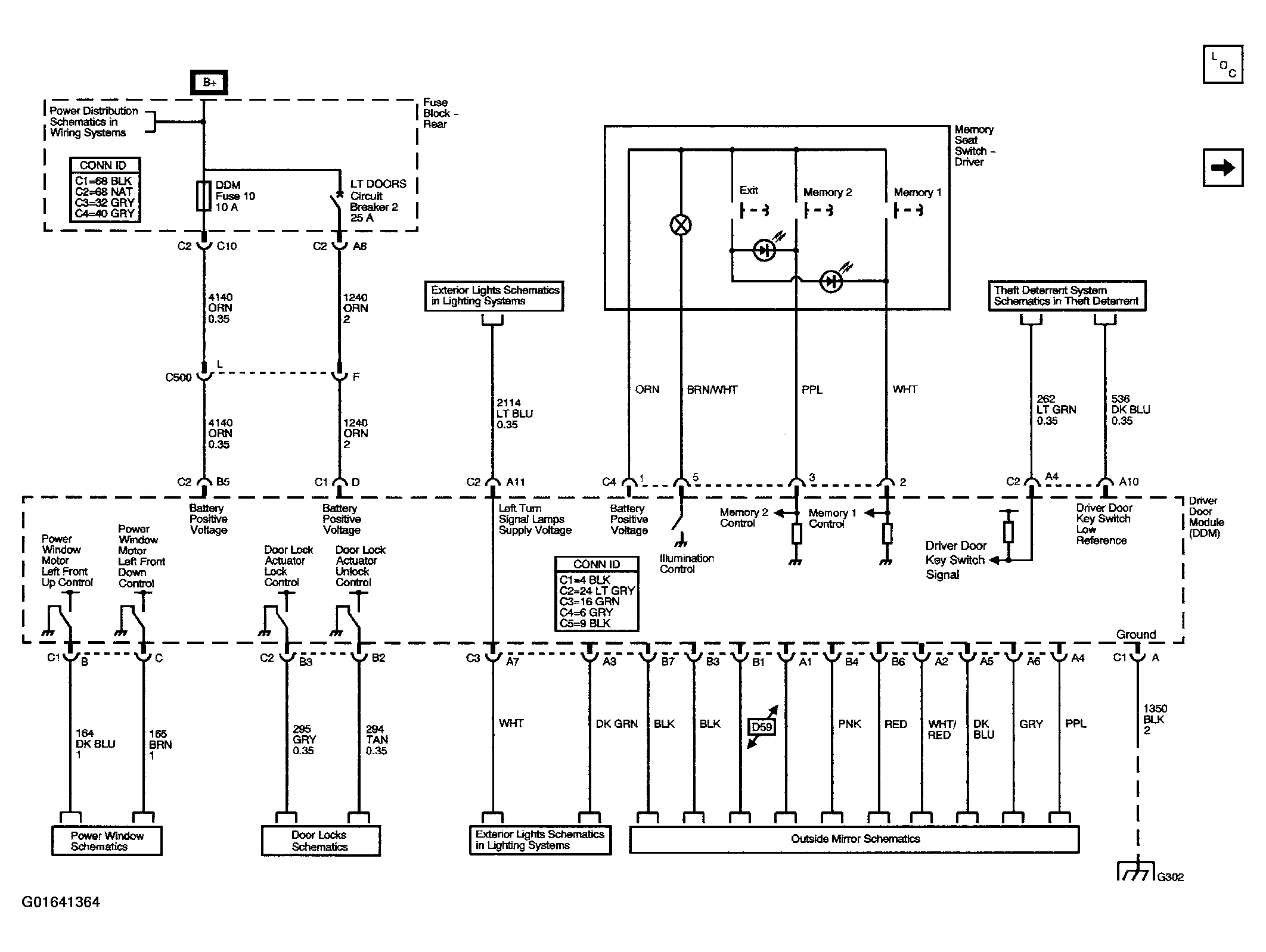

Fig 1: Driver Door Module Power And Ground
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
