Door Control Module Schematics
›
Serial Data and Subsystem References
Serial Data and Subsystem References

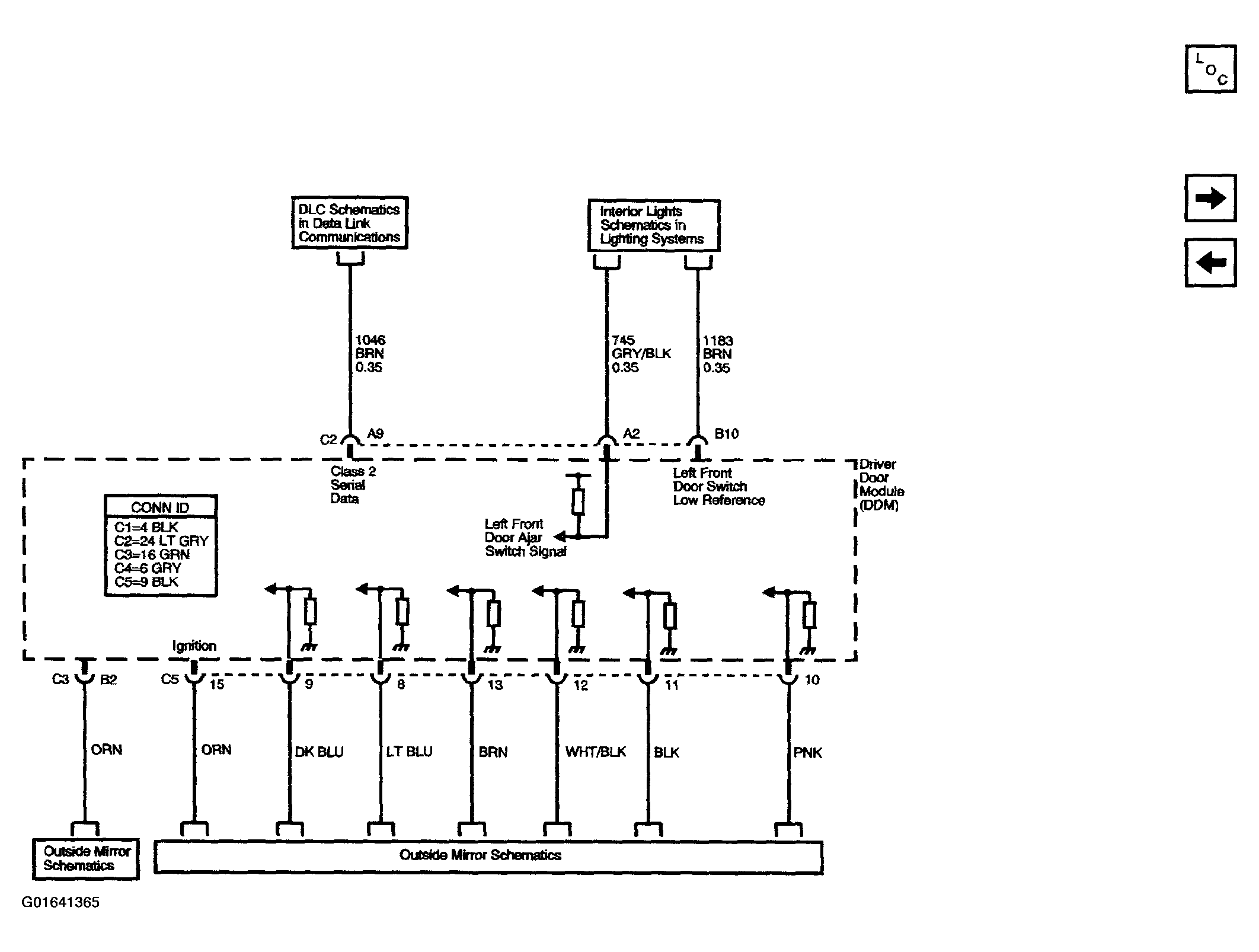

Fig 1: Serial Data And Subsystem References
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
