FixVault
Home
›
Oldsmobile
›
2003
›
Bravada RWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Stationary Window System
›
Component Locator
›
Stationary Windows Connector End Views
›
Ambient Air Temperature Sensor
Ambient Air Temperature Sensor

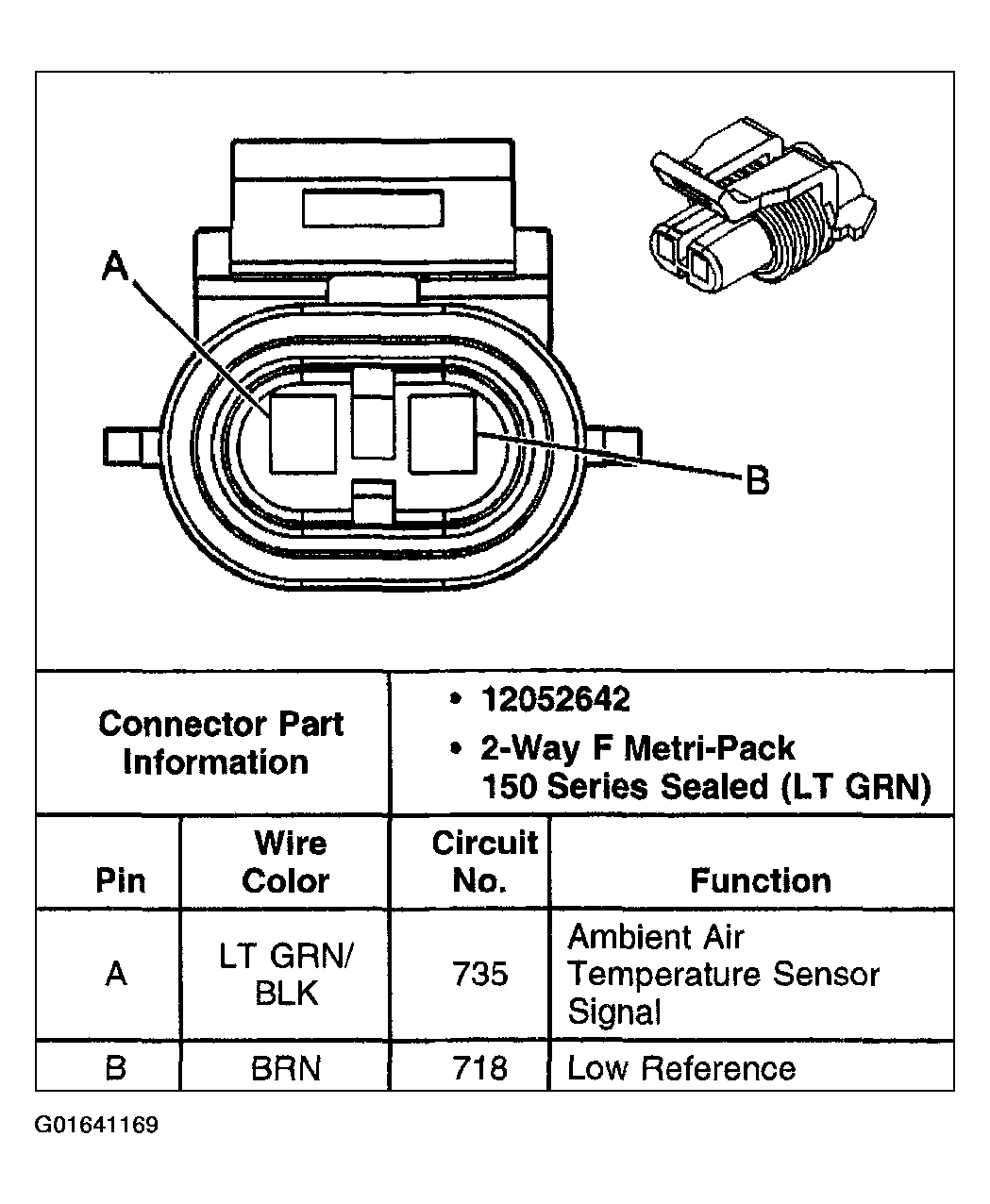

Fig 1: Identifying Ambient Air Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
